Trendnet
TRENDnet 6-Port 10G Switch, 4 x 2.5G RJ-45 Base-T Ports, 2 x 10G RJ-45 Ports, 60Gbps Switching Capacity, Wall Mountable, 10 Gigabit Network Connections, Lifetime Protection, Black, TEG-S762
- SKU:
- 18850147
- MPN:
- teg-s762
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/03/2024 07:01:36 AM PST
- Stock Update:
- 05/03/2024 07:01:36 AM PST
Description
This item is brand-new, factory sealed.

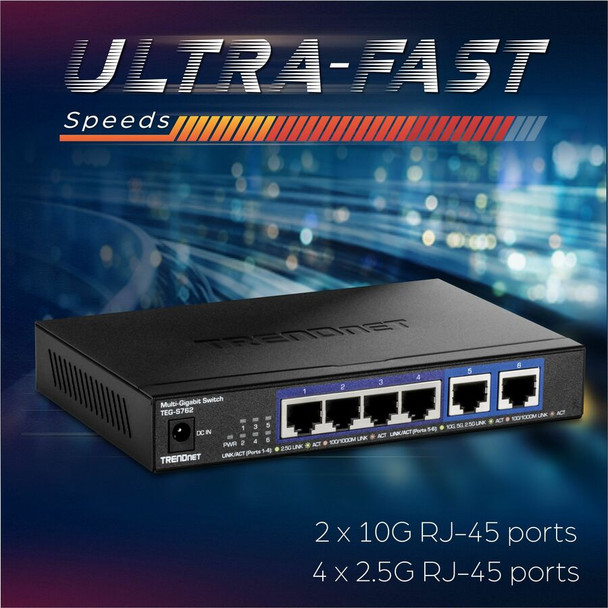

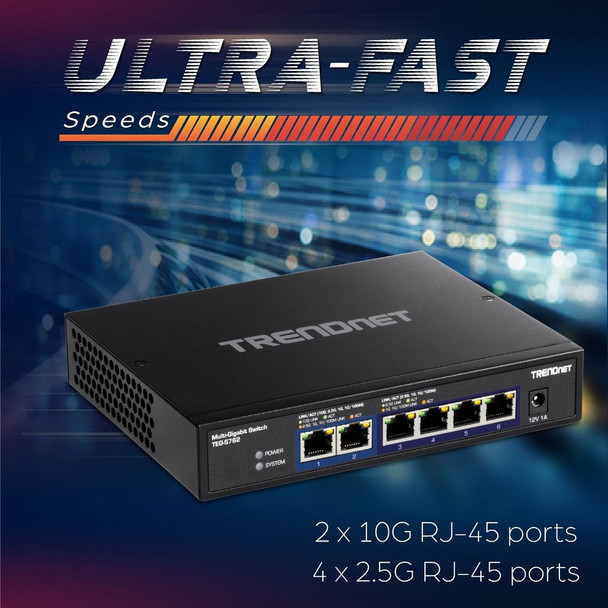

- DEVICE INTERFACE: 4 x 2.5G RJ-45 ports; 2 x 10G RJ-45 ports.
- 10G PORTS: This 6-Port 10G switch offers two 10G ports for high-speed network connections providing a cost-effective solution in adding 10G link capability.
- 2.5G PORTS: Equipped with four 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- SWITCHING CAPACITY: The 10G switch has a 60Gbps switching capacity.
- WALL MOUNTABLE: Well-suited for desktop installations, but also features convenient wall mountable design for greater installation flexibility.
- TRENDNET LIFETIME PROTECTION: The TEG-S762 switch comes with Lifetime TRENDnet protection.
- FANLESS DESIGN: The 10 gigabit switch fanless design lowers energy consumption and eliminates operating noises.
TRENDnet's 6-Port 10G Switch, model TEG-S762, is a multi-gig switch that provides advanced high bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the 10G switch is a cost-effective switch solution for high-speed 10 Gigabit network connections.
10G Ports
Offers two 10G ports for high-speed network connections providing a cost-effective solution in adding 10G link capability.
2.5G Ports
Equipped with four 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Fanless
Convenient fanless design lowers unnecessary energy consumption and costs, and eliminates distracting operating noise.
Package Contents:
- 6-Port 10G Switch
- Quick Installation Guide
- Power Adapter (12V, 1A)
Features
- 6-Port 10G Switch
- Quick Installation Guide
- Power Adapter (12V, 1A)
TAA Compliant:
Yes
Country of Origin:
Taiwan
Specs
Power Description | |
Power Source | Power Adapter |
Frequency |
|
Power Consumption | 11.90 W |
Physical Characteristics | |
Product Material | Metal |
Form Factor |
|
Weight (Approximate) | 5.14 lb |
Height | 1.3" |
Width | 7.1" |
Depth | 5.7" |
Warranty | |
Limited Warranty | Lifetime |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Port/Expansion Slot Details |
|
Total Number of Network Ports | 6 |
General Information | |
Brand Name | TRENDnet |
Manufacturer Website Address | http://www.trendnet.com |
Marketing Information | DEVICE INTERFACE: 4 x 2.5G RJ-45 ports; 2 x 10G RJ-45 ports. 10G PORTS: This 6-Port 10G switch offers two 10G ports for high-speed network connections providing a cost-effective solution in adding 10G link capability. 2.5G PORTS: Equipped with four 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. SWITCHING CAPACITY: The 10G switch has a 60Gbps switching capacity. WALL MOUNTABLE: Well-suited for desktop installations, but also features convenient wall mountable design for greater installation flexibility. TRENDNET LIFETIME PROTECTION: The TEG-S762 switch comes with Lifetime TRENDnet protection. FANLESS DESIGN: The 10 gigabit switch fanless design lowers energy consumption and eliminates operating noises. NDAA / TAA compliant (U.S. and Canada only) TRENDnet's 6-Port 10G Switch, model TEG-S762, is a multi-gig switch that provides advanced high bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the 10G switch is a cost-effective switch solution for high-speed 10 Gigabit network connections. 10G Ports Offers two 10G ports for high-speed network connections providing a cost-effective solution in adding 10G link capability. 2.5G Ports Equipped with four 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. Fanless Convenient fanless design lowers unnecessary energy consumption and costs, and eliminates distracting operating noise. More from the Manufacturer |
Product Type | Ethernet Switch |
Product Name | 6-Port 10G Switch |
Manufacturer | TRENDnet |
Manufacturer Part Number | TEGS762 |
Product Model | TEG-S762 |
Media & Performance | |
Ethernet Technology |
|
Media Type Supported | Twisted Pair |
Network Technology |
|
Network & Communication | |
Layer Supported | 2 |
Networking Standards |
|
