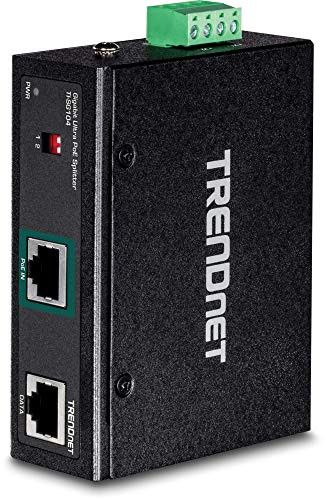

TRENDnet Industrial Gigabit UPoE Splitter, Dual DC Power Outputs, DIN-Rail or Wall-Mountable, Adjustable Voltage Output, TI-SG104
- SKU:
- 19155589
- MPN:
- ti-sg104
- Availability:
- Usually ships the same or next business day. In stock at our FL, IN warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/29/2026 12:01:02 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $75.29 each 75.29 |
| Buy 3 - 4 | and pay only $73.18 each 73.18 |
| Buy 5 - 14 | and pay only $71.52 each 71.52 |
| Buy 15 or above | and pay only $69.99 each 69.99 |
- Stock Update:
- 06/29/2026 12:01:02 AM PST
Description
This item is brand-new, factory sealed.
- Power a non-PoE device up to 100m (328 ft.) away from PSE
- Splits a gigabit PoE signal into separate power and data sources
- A single Ultra PoE source can power up to two devices
- Adjustable voltage output supports 12V, 16V, 24V or 48V devices
- For best performance pair with UPoE switches or injectors
- Save on installation and equipment cost
- Full Duplex Gigabit speeds
- IEEE 802.3bt compatible
TRENDnet's Industrial Gigabit UPoE Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP switch adjusts output power to 12V, 16V, 24V, or 48V in order to match power requirements for non-PoE devices. The UPoE splitter's dual DC power output provides greater device compatibility
UPoE Powered
No power adapter necessary; the UPoE splitter takes a UPoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).
Adjustable Voltage Output
Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.25A) to match non-PoE device power requirements.
Wall Mountable
The UPoE splitter's wall mountable design accommodates most installation scenarios.
PACKAGE CONTENTS
TI-SG104
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
Package Contents:
- Industrial Gigabit UPoE Splitter
- Quick Installation Guide
- Removable Terminal Block
- DIN-rail and Wall Mount Kit
Features
Yes
Package Contents:
- Industrial Gigabit UPoE Splitter
- Quick Installation Guide
- Removable Terminal Block
- DIN-rail and Wall Mount Kit
Certifications & Standards:
Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt compatible
- CE
- FCC
- IEC EN60950-1
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
TAA Compliant:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Maximum Output Voltage | 48 V DC |
| Minimum Output Voltage | 12 V DC |
| Physical Characteristics | |
| Form Factor | DIN Rail/Wall Mountable |
| Weight (Approximate) | 6.07 oz |
| Length | 9" |
| Height | 3" |
| Width | 7" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Output Ports | 1 x Gigabit Ethernet |
| Input Ports | 1 x UPoE |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | TRENDnet's Industrial Gigabit PoE++ Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit PoE++ connection and splitting it into separate power and gigabit data sources. The industrial gigabit PoE++ splitter can power to up to two devices from a single PoE source. A convenient DIP switch on the PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The PoE++ splitter's dual DC power output provides greater device compatibility. DEVICE INTERFACE: 1 x Gigabit Port; 1 x Gigabit PoE++ Port; 4-pin Removable Terminal Block (Dual DC Output); Adjustable output power DIP Switch (48V, 24V, 16V, 12V) POE++ POWERED: No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.). ADJUSTABLE VOLTAGE OUTPUT: Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.5A) to match non-PoE device power requirements. DUAL DC POWER OUTPUT TERMINAL BLOCK: The PoE++ splitter includes a dual DC power output terminal block, powering for up to two devices EXTREME OPERATING TEMPURATURE: Designed for industrial environments with a wide operating temperature range of -40° - 75° C (-40° - 167° F) WALL MOUNTABLE: The splitter comes with a wall mount kit that accommodates most installation scenarios DIN-RAIL MOUNTABLE: The PoE++ splitter comes with a DIN-Rail mount kit that fits a standard TS35 DIN-Rails POWER: Input: 15.4W/30W/60W/90W PoE power; Max. consumption: 1W (splitter only) Max. combined DC Output: 48V (1.5A), 24V (2.3A), 16V (2.3A), 12V (2.3A) NDAA / TAA compliant (U.S. and Canada only) More from the Manufacturer |
| Product Condition | New |
| Product Type | PoE Splitter |
| Product Name | Industrial Gigabit |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-SG104 |
| Product Model | TI-SG104 |
| Technical Information | |
| Protection Type |
|
