Trendnet
TRENDnet 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports, TL2-F70284, 24 x Gigabit SFP Ports, 4 x 10G SFP+ Ports, Web Based Management, 128Gbps Switching Capacity, Lifetime Protection, Black
- SKU:
- 20905182
- MPN:
- tl2-f70284
- Availability:
- Usually ships the same or next business day. In stock at our CA, IN warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/27/2026 11:39:30 PM PST
- Stock Update:
- 07/27/2026 11:39:30 PM PST
Description
This item is brand-new, factory sealed.
- 24 x Gigabit SFP ports (100Mbps/1Gbps)
- 4 x 10G SFP+ ports (1Gbps/10Gbps)
- Supports 100Mbps/1Gbps link speeds on Gigabit SFP ports
- Support 1Gbps/10Gbps link speeds on 10G SFP+ ports
- Web-based and CLI management
- Supports IPv6, LACP, VLAN, and IGMP Snooping
- 802.1Q tagged-based VLAN, GVRP, and Voice VLAN support
- QoS with queue scheduling support
- Supports inter-VLAN routing and IPv4/IPv6 static routing
- Smart fans
- 128Gbps switching capacity
- Supports TRENDnet's RJ-45 copper and fiber SFP modules
- Lifetime Warranty
TRENDnet's 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports, model TL2-F70284, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed SFP switch comes with an intuitive web-based interface. Advanced management features on this managed SFP switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring; it is fully manageable through the console port, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to the SFP switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to minimize network traffic, as well as optimize IP surveillance system performance.
TRENDnet's Layer 2 Managed SFP Switch features four 10GSFP+ slots for high-speed network connections, providing a cost- effective solution in adding 10G link capability to an SMB network.
High-Speed 1G SFP and 10G SFP+
Offers 24 x 1G SFP ports and 4 x 10G SFP+ ports for high-speed, long-distance network connections, providing a cost- effective solution in adding 10G link capability to an SMB network.
L2 Management
Fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
FEATURES | Hardware Design

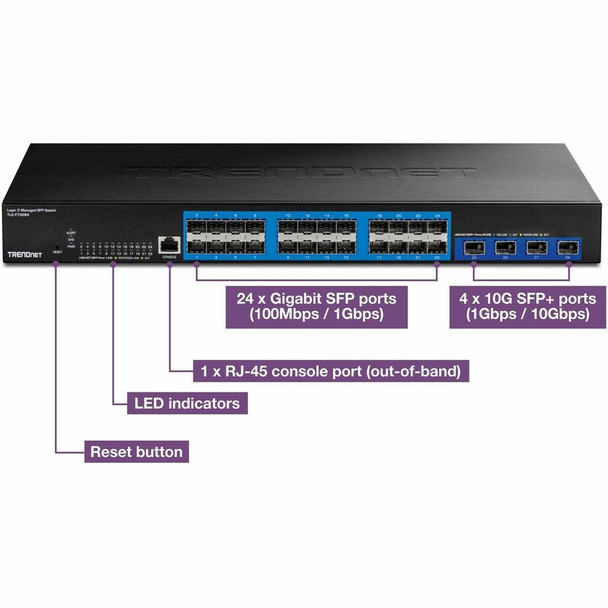

The managed fiber switch provides 24 x 1G SFP ports and 4 x 10G SFP+ ports, a built-in power supply, and 1U rackmount brackets
10G SFP+ ports
Offers four dedicated 10G SFP+ ports for high-speed network connections, providing a cost- effective solution in adding 10G link capability to an SMB network
Traffic Management
Managed switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN, Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance
IPv4/IPv6 Static Routing
Offload routing processes to the managed SFP switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Frequency |
|
| Input Voltage |
|
| Power Consumption | 38.40 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 8.42 lb |
| Height | 1.7" |
| Compatible Rack Unit | 1U |
| Width | 17.3" |
| Depth | 10.6" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Port/Expansion Slot Details |
|
| Modular | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 28 |
| Number of SFP Slots | 24 |
| Expansion Slot Type |
|
| Number of SFP+ Slots | 4 |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | TRENDnet's 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports, model TL2-F70284, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed SFP switch comes with an intuitive web-based interface. Advanced management features on this managed SFP switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring; it is fully manageable through the console port, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to the SFP switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to minimize network traffic, as well as optimize IP surveillance system performance. TRENDnet's Layer 2 Managed SFP Switch features four 10GSFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. DEVICE INTERFACE: 24 x Gigabit SFP ports (100Mbps/1Gbps); 4 x 10G SFP+ Ports (1Gbps/10Gbps); 1 x RJ-45 console port (out-of-band); LED Indicators; Reset Button LIFETIME PROTECTION -We stand by the quality of our products. The TL2-F70284 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) SWITCHING CAPACITY: The layer 2 network switch provides 128Gbps switching capacity LAYER 2 MANAGEMENT: The 28 Port Layer 2 SFP switch has a fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches. INTEGRATION FLEXIBILITY: The 28 port network switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration. 10G SFP+ PORTS: The network switch has four dedicated 10G SFP+ ports for high-speed network connections, providing a costeffective solution in adding 10G link capability to an SMB network TRAFFIC MANAGEMENT: Managed switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN, Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management More from the Manufacturer |
| Product Type | Ethernet Switch |
| Product Name | 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TL2-F70284 |
| Product Model | TL2-F70284 |
| Media & Performance | |
| Ethernet Technology |
|
| Media Type Supported | Optical Fiber |
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
| Reliability | |
| MTBF | 412539 Hour |
