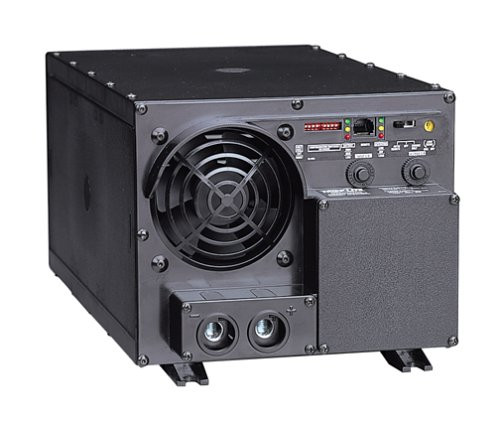

Tripp Lite 2000W APS 12VDC 120V Inverter / Charger w/ Auto Transfer Switching ATS Hardwired (APS2012)
- SKU:
- 19847315
- MPN:
- aps2012
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's APS2012 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 2000 watts of continuous 120V AC power from any 12V battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 25/100 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compress
Package Contents:
- PowerVerter APS Inverter/Charger 2000W
- APS2012 Inverter/Charger
- Instruction manual with warranty information
Features
- PowerVerter APS Inverter/Charger 2000W
- APS2012 Inverter/Charger
- Instruction manual with warranty information
Additional Information:
- Extended Run UPS Configure as a UPS for long-term battery support of telecom systems, security alarms, computer systems and various other motorized and electronic loads.
- Standalone Power Alternative power source for use in off-grid, backwoods, alternative energy and export applications where commercial power is not continuously available.
- Automotive Connect to an automotive electrical system to run power tools, computers, electronic test equipment, home entertainment and other AC appliances in fleet service vehicles, over-the-road trucks, campers, RVs, minivans and more.
- Allows unlimited runtime capability by allowing the use any number of user-supplied batteries
- Frequency control for operating stability
- User supplies cabling, 4 gauge or larger recommended
- Cooling Method: Fan
- Auto-transfer to enable battery charging and automatic UPS support for blackouts and brownouts
- RJ45 port allows connection of APS remote switch
- Battery runtime is dependent upon the size and number of user-supplied batteries in 12V configuration
- Advanced 20/60 amp selectable , 3-stage battery charger and selector switch for gel or wet cell batteries
- Resettable circuit breaker protects APS against system overload
Low voltage transfer to battery power:
- User configurable to 75V, 85V, 95V and 105V
High voltage transfer to battery power:
- User configurable to 135V, 145V
LED Alarm and Switches:
- Front Panel LEDS : Six LEDS
- Switches : Three position on/off/remote switch enables simple on/off power control plus auto or remote setting
Country of Origin:
China
Specs
| Power Description | |
| Maximum Frequency | 60 Hz |
| Continuous Power Load | 2000 W |
| Input Voltage Range | 10 V DC - 15 V DC |
| Input Voltage | 12 V DC |
| Peak Power Load | 4000 W |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Physical Characteristics | |
| Weight (Approximate) | 39.60 lb |
| Product Color | Black |
| Height | 7.3" |
| Color Family | Black |
| Width | 8.5" |
| Depth | 16.3" |
| Warranty | |
| Limited Warranty | 1 Year |
| General Information | |
| Brand Name | Tripp Lite by Eaton |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite's APS2012 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 2000 watts of continuous 120V AC power from any 12V battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 25/100 amp charging system. Supports an unlimited amount of runtime with any number of user-supplied batteries connected. More from the Manufacturer |
| Product Type | Power Inverter |
| Product Name | PowerVerter APS 4kW Inverter |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | APS-2012 |
| Product Series | APS |
| Product Line | PowerVerter |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacles | Hardwired |
