Tripplite
Tripp Lite 2M MTP MPO 8xLC 50/125 OM4 Fanout Patch Cable 12 Fiber 40GB CMP (n845-02m-8l-mg)
- SKU:
- 19843977
- MPN:
- n845-02m-8l-mg
- Availability:
- Out of stock
- Stock Update:
- 09/24/2025 06:09:29 PM PST
- Stock Update:
- 09/24/2025 06:09:29 PM PST
Description
This item is brand-new, factory sealed.

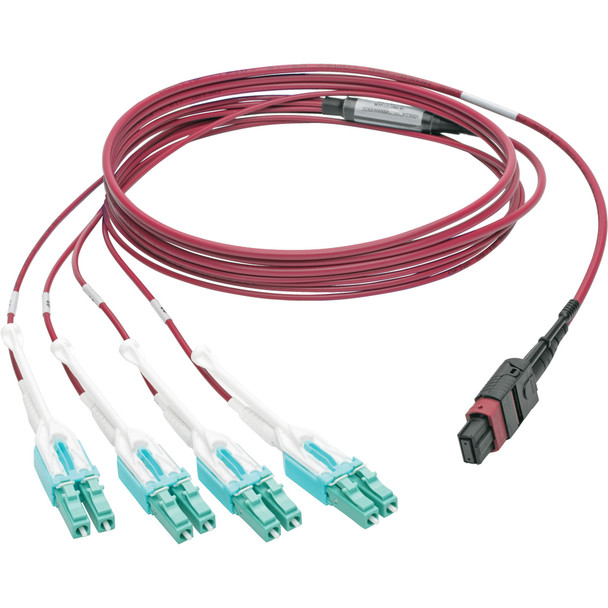

The two-meter N845-02M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction.
Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-02M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.
Features
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Color | Magenta |
| Color Family | Pink |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The two-meter N845-02M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-02M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time. More from the Manufacturer |
| Product Type | Network Cable |
| Product Name | N845-02M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable, Magenta, 2 m |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N845-02M-8L-MG |
| Product Model | N845-02M-8L-MG |
| Technical Information | |
| Connector on Second End Details | 8 x LC Network - Male |
| Data Transfer Rate | 40 Gbit/s |
| Cable Type | Fiber Optic |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Cable Length | 6.60 ft |
| Features | Uniboot Connector |
| Cable Characteristic | Fan-out Cable |
| Device Supported |
|
| Fiber Optic Mode | Multi-mode |
