Tripp Lite 4-Port DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 4K 60 Hz, DP 1.2a, TAA (b156-004-hd-v3)
- SKU:
- 20465527
- MPN:
- b156-004-hd-v3
- Availability:
- Out of stock
- Stock Update:
- 10/23/2025 10:02:48 AM PST
- Stock Update:
- 10/23/2025 10:02:48 AM PST
Description
This item is brand-new, factory sealed.
Features | Connect up to 4 HDMI Monitors to Your DisplayPort Computer
This multi-display splitter connects as many as four 4K HDMI monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156- 004-HD-V3 helps you create video walls, give audio/video presentations in front of large audiences or stream 4K video to multiple locations.
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting the built-in DisplayPort cable to a source that supports DisplayPort MST Mode, you may connect up to four displays simultaneously. This allows you to display the same image on each monitor, extend your host desktop across all four monitors or combine all four monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal.
Transmits 4K Video with 4:4:4 Color
The B156-004-HD-V3 supports HD resolutions up to 1920 x 1080 at 60 Hz per monitor with 16-bit Deep Color and 2-channel LPCM audio. In video wall mode, it supports expanded resolutions, including 3840 x 2160 at 60 Hz (2x2 monitor configuration), 7680 x 1080 at 60 Hz (4x1 vertical configuration) and 1920 x 4320 at 60 Hz (1x4 horizontal configuration). The B156-004-HD-V3 is compliant with DisplayPort 1.2 standards and is backward compatible with previous versions.
Designed for Plug-and-Play Convenience
Just connect your source device using the built-in DisplayPort cable and your display devices with usersupplied HDMI cables up to 15 feet (4.6 meters). No software or drivers are needed. Plug the included external power supply into a compatible AC outlet. Four international plug adapters (North America, U.K., Europe, Australia) are also included.
TAA-Compliant for GSA Schedule Purchases
The B156-004-HD-V3 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

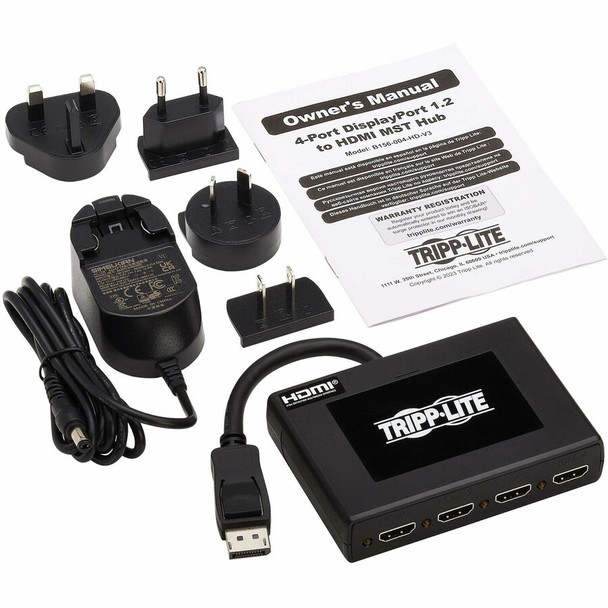

Package Contents:
- B156-004-HD-V3 4-Port DisplayPort to HDMI MultiMonitor Splitter
- External power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 3A)
- 4 x International plug adapters (North America, U.K., Australia, Europe)
- Owner's manual
Features
- B156-004-HD-V3 4-Port DisplayPort to HDMI MultiMonitor Splitter
- External power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 3A)
- 4 x International plug adapters (North America, U.K., Australia, Europe)
- Owner's manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Product Material | Plastic |
| Connector Plating |
|
| Weight (Approximate) | 3.20 oz |
| Height | 4.3" |
| Width | 3" |
| Depth | 0.9" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| HDMI Out | Yes |
| DisplayPort | Yes |
| Number of HDMI Outputs | 4 |
| Number of DisplayPort Inputs | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Features | Connect up to 4 HDMI Monitors to Your DisplayPort Computer This multi-display splitter connects as many as four 4K HDMI monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156- 004-HD-V3 helps you create video walls, give audio/video presentations in front of large audiences or stream 4K video to multiple locations. DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays By connecting the built-in DisplayPort cable to a source that supports DisplayPort MST Mode, you may connect up to four displays simultaneously. This allows you to display the same image on each monitor, extend your host desktop across all four monitors or combine all four monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal. Transmits 4K Video with 4:4:4 Color The B156-004-HD-V3 supports HD resolutions up to 1920 x 1080 at 60 Hz per monitor with 16-bit Deep Color and 2-channel LPCM audio. In video wall mode, it supports expanded resolutions, including 3840 x 2160 at 60 Hz (2x2 monitor configuration), 7680 x 1080 at 60 Hz (4x1 vertical configuration) and 1920 x 4320 at 60 Hz (1x4 horizontal configuration). The B156-004-HD-V3 is compliant with DisplayPort 1.2 standards and is backward compatible with previous versions. Designed for Plug-and-Play Convenience Just connect your source device using the built-in DisplayPort cable and your display devices with usersupplied HDMI cables up to 15 feet (4.6 meters). No software or drivers are needed. Plug the included external power supply into a compatible AC outlet. Four international plug adapters (North America, U.K., Europe, Australia) are also included. TAA-Compliant for GSA Schedule Purchases The B156-004-HD-V3 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product Type | Signal Splitter |
| Product Name | B156-004-HD-V3 4-Port DisplayPort to HDMI MultiMonitor Splitter |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B156004HDV3 |
| Product Model | B156-004-HD-V3 |
| Technical Information | |
| Indicator Light | Yes |
