Tripplite

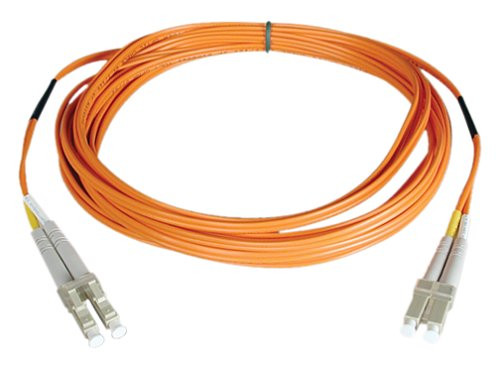

Tripp Lite 50M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 164' 164ft 50 Meter (N520-50M)
- SKU:
- 19846822
- MPN:
- n520-50m
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/14/2026 09:09:31 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $98.91 each 98.91 |
| Buy 3 - 4 | and pay only $96.51 each 96.51 |
| Buy 5 | and pay only $94.59 each 94.59 |
| Buy 6 or above | and pay only $91.71 each 91.71 |
- Stock Update:
- 02/14/2026 09:09:31 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's 50-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, and 30 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Package Contents:
- Duplex Fiber Optic Patch Cable
- 50M Duplex MMF Cable LC/LC 50/125 Fiber
Features
- Duplex Fiber Optic Patch Cable
- 50M Duplex MMF Cable LC/LC 50/125 Fiber
Certifications & Standards:
- FDDI
Additional Information:
- Fiber type: all glass graded index
- Core diameter: two 50+/-3 microns
- CLAD diameter: 125+/-2 microns
- Primary coating diameter: 245+/-15 microns
- Primary coating material: acrylate
- Secondary coating diameter: 900+/-50 microns
- Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
- Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
- Numeric apeture: .275 nominal
- Proof test level: 100,000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Country of Origin:
China
Specs
| Physical Characteristics | |
| Shipping Weight (Approximate) | 12.80 oz |
| Shipping Width | 7.50" |
| Shipping Height | 2" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite's 50-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, and 30 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life. More from the Manufacturer |
| Product Type | Network Cable |
| Product Name | Duplex Fiber Optic Patch Cable |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N52050M |
| Technical Information | |
| Connector on Second End Details | 2 x LC - Male |
| Cable Type | Fiber Optic |
| Connector on First End Details | 2 x LC - Male |
| Connector Type on First End | LC - Male |
| Connector Type on Second End | LC - Male |
| Cable Length | 164 ft |
| Jacket Type | Plenum |
| Cable Characteristic | Patch Cable |
