Tripp Lite

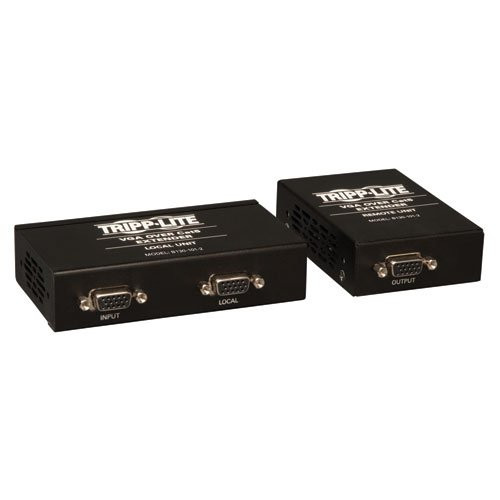

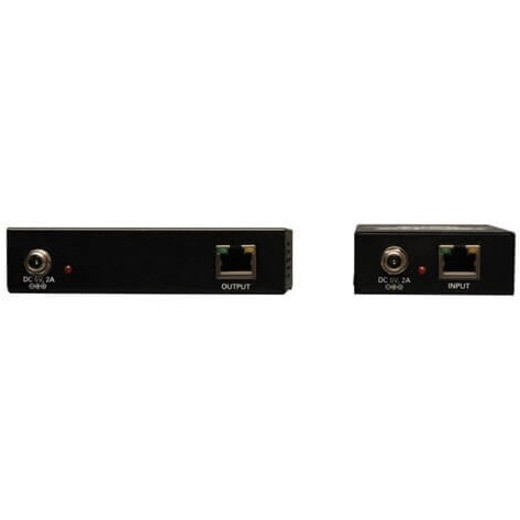

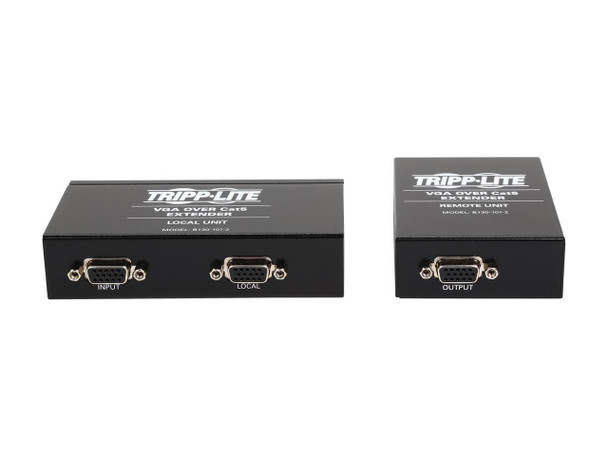

Tripp Lite VGA over Cat5/Cat6 Video Extender Kit Transmitter/Receiver EDID 1000' (B130-101-2)
- SKU:
- 18384434
- MPN:
- b130-101-2
- Availability:
- Out of stock
- Stock Update:
- 05/14/2024 03:22:06 AM PST
- Stock Update:
- 05/14/2024 03:22:06 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
Package Contents:
- Local (Transmitter) unit
- Remote (Receiver) unit
- Mini-Screwdriver for EQ/Gain adjustment
- 2 x Mounting Hardware Kits
- 2 x External Power Supply
- Owner's Manual
Features
- Local (Transmitter) Unit 1 x 4.5 x 2.5 (in.)
- Remote (Receiver) Unit 1 x 2.5 x 3.5 (in.)
- Mini-Screwdriver for EQ/Gain Adjustment
- 2 x Mounting Hardware Kits
- 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
- Owner's Manual
Certifications & Standards:
TAA
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Form Factor |
|
| Product Color | Black |
| Color Family | Multicolor |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 2 |
| VGA Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| General Information | |
| Brand Name | Tripp Lite by Eaton |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Marketing Information | Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110 repeater units. Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. More from the Manufacturer |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | VGA over Cat5 Extender Kit ( Transmitter + Receiver ) |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B130-101-2 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 1000 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 2 |
