tripp lite power management

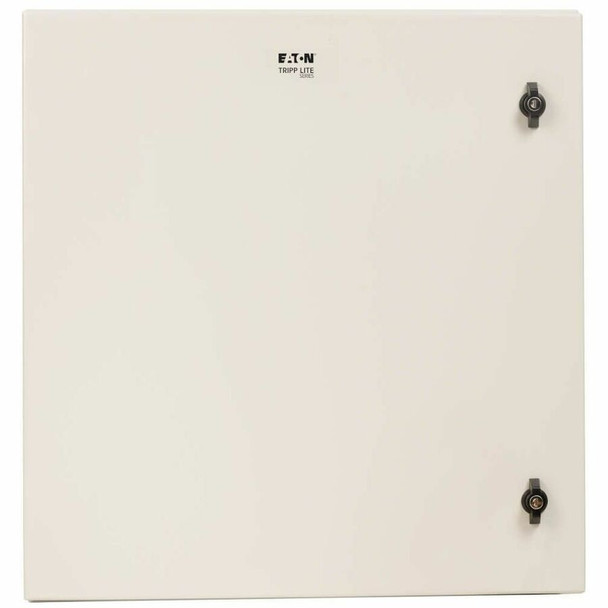

Tripp Lite by Eaton SmartRack Industrial Enclosure with Locks - NEMA 4, Wall Mount, Heavy-Duty Metal Construction, 32.5 in. Depth, 12U, Gray (srn4g12uhd)
- SKU:
- 20768277
- MPN:
- srn4g12uhd
- Availability:
- Usually ships in 2-3 business days. In stock at our IL warehouse.
- Shipping:
- $342.11 (Fixed Shipping Cost)
- Stock Update:
- 05/27/2026 09:15:48 PM PST
- Stock Update:
- 05/27/2026 09:15:48 PM PST
Description
This item is brand-new, factory sealed.
Locking metal enclosure protects your rack-mount equipment against theft, damage, tampering, and excess moisture and debris.
Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 32.5 in. Deep
This SmartRack® industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, such as UPS systems and related battery packs and cabling. Constructed from heavy-duty steel with a durable gray powder-coated finish, the SRN4G12UHD has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRN4G12UHD protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed doors swing away on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 12U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 32.5 inches deep. Hardware for mounting equipment inside the enclosure is included.
Package Contents:
- SRN4G12UHD Industrial Enclosure
- 48 x 10-32 Screws
- 48 x M6 Washers
- 6 x LDPE Sheet Metal Plugs
- 6 x M10 Foam Washers
- 2 x Keys
- Owner's Manual
Features
- SRN4G12UHD Industrial Enclosure
- 48 x 10-32 Screws
- 48 x M6 Washers
- 6 x LDPE Sheet Metal Plugs
- 6 x M10 Foam Washers
- 2 x Keys
- Owner's Manual
Environmentally Friendly:
Yes
Assembly Required:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Material |
|
| Form Factor | Wall Mountable |
| Weight (Approximate) | 180 lb |
| Product Color | Gray |
| Rack Depth | 32.50" |
| Static/Stationary Weight Capacity | 200 lb |
| Height | 25.4" |
| Color Family | Gray |
| Width | 24" |
| Depth | 36.2" |
| Rack Height | 12U |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Locking metal enclosure protects your rack-mount equipment against theft, damage, tampering, and excess moisture and debris. Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 32.5 in. Deep This SmartRack® industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, such as UPS systems and related battery packs and cabling. Constructed from heavy-duty steel with a durable gray powder-coated finish, the SRN4G12UHD has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications. NEMA 4 Enclosure Designed for Protection Against Harsh Elements The SRN4G12UHD protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way. Locks Securely to Help Prevent Theft, Damage and Tampering The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed doors swing away on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout. Easy Enclosure and Equipment Installation This 12U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 32.5 inches deep. Hardware for mounting equipment inside the enclosure is included. |
| Product Type | Rack Mount Enclosure |
| Product Name | SRN4G12UHD Industrial Enclosure |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRN4G12UHD |
| Product Model | SRN4G12UHD |
| Product Line | SmartRack |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage |
|
| Features |
|
