Tripp Lite Cat6 Surface-Mount Box 6-Port Unshielded 110 IDC Punchdown RJ45 (n236-006-wh)
- SKU:
- 18157812
- MPN:
- n236-006-wh
- Availability:
- Out of stock
- Stock Update:
- 12/19/2025 09:06:55 AM PST
- Stock Update:
- 12/19/2025 09:06:55 AM PST
Description
This item is brand-new, factory sealed.

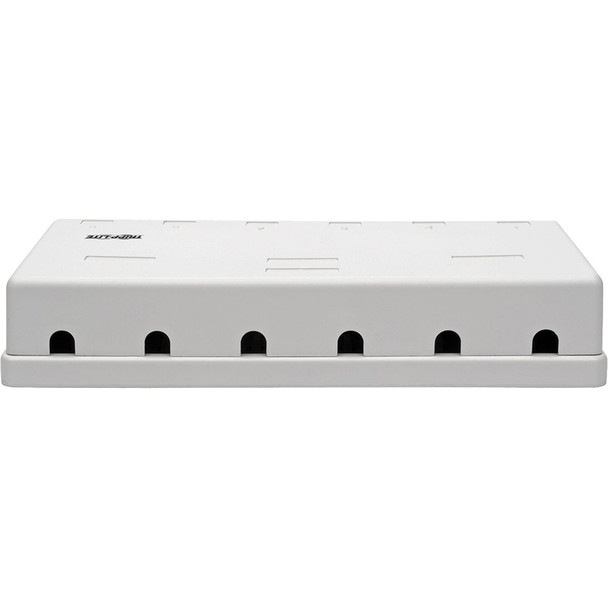

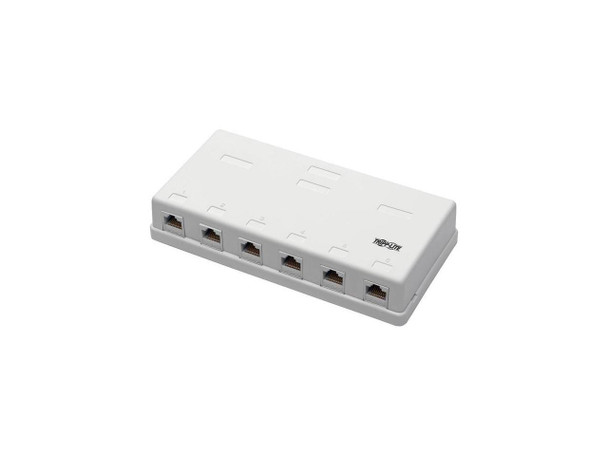

The N236-006-WH Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box features six RJ45 female connectors as a safe, easy, cost-effective tool for expanding your Cat5e/6 audio/video, voice or Ethernet network. The ABS UL 94V-0 flame-retardant housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape.

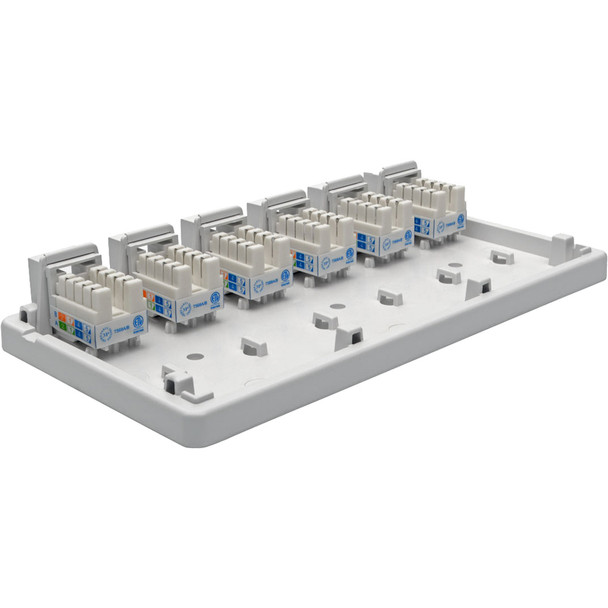

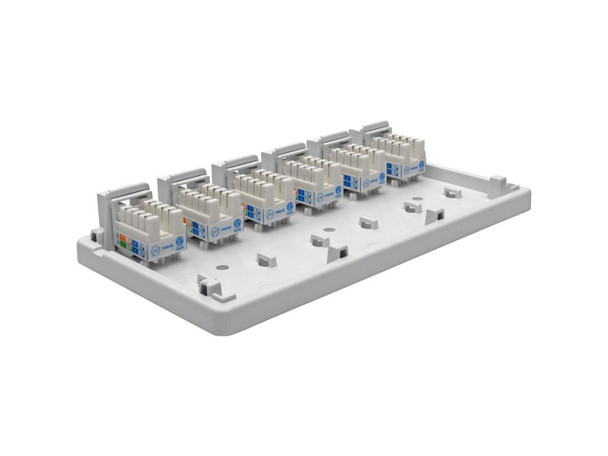

Just snap open the top cover to terminate up to six 22-26 AWG Cat5e/6 copper cables using a standard 110 IDC punchdown tool (such as Tripp Lite's N046-000). The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling.

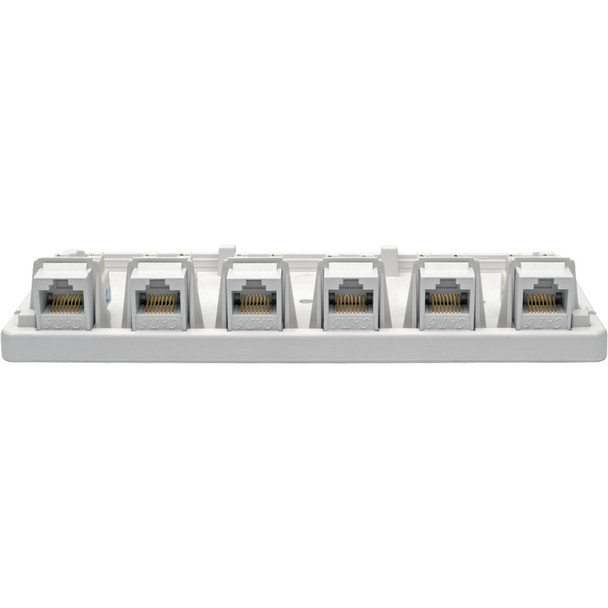

Snap the cover back on, and connect up to six Cat5e/6 cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. The N236-006-WH offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible.

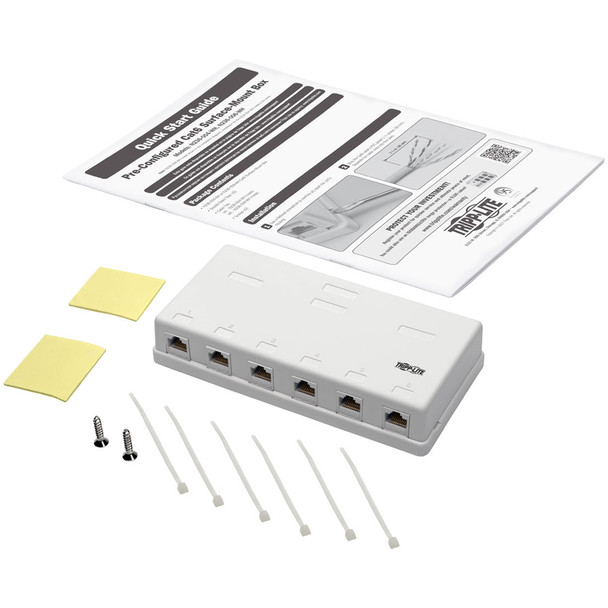

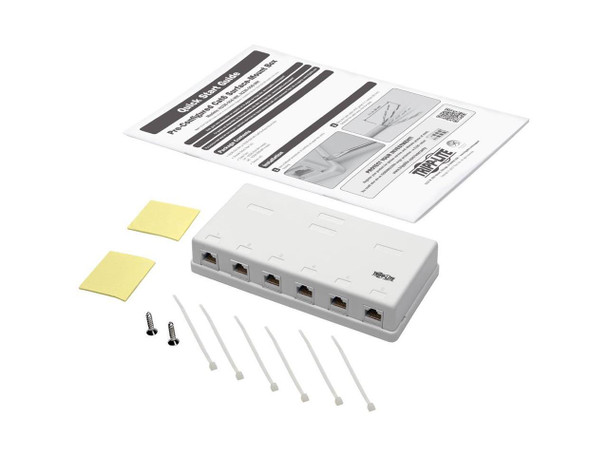

Package Contents:
- N236-006-WH Mounting Box
- 2 x Double-sided Tape
- 6 x Cable Ties
- 2 x Mounting Screws
- Quick Start Guide
Features
- N236-006-WH Mounting Box
- 2 x Double-sided Tape
- 6 x Cable Ties
- 2 x Mounting Screws
- Quick Start Guide
Environmentally Friendly:
Yes
Application/Usage:
Wall
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Product Color | White |
| Color Family | White |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The N236-006-WH Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box features six RJ45 female connectors as a safe, easy, cost-effective tool for expanding your Cat5e/6 audio/video, voice or Ethernet network. The ABS UL 94V-0 flame-retardant housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape. Just snap open the top cover to terminate up to six 22-26 AWG Cat5e/6 copper cables using a standard 110 IDC punchdown tool (such as Tripp Lite's N046-000). The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling. Snap the cover back on, and connect up to six Cat5e/6 cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. The N236-006-WH offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible. |
| Product Type | Mounting Box |
| Product Name | N236-006-WH Mounting Box |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N236006WH |
| Product Model | N236-006-WH |
