Tripp Lite
Tripp Lite Cat6a Class EA STP Field-Termination Plug, 568A/568B, TAA (n232-shc6a-1)
- SKU:
- 20477818
- MPN:
- n232-shc6a-1
- Availability:
- Usually ships the same or next business day. In stock at our MS warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/17/2024 01:58:15 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $15.69 each 15.69 |
| Buy 3 | and pay only $13.76 each 13.76 |
| Buy 4 | and pay only $12.82 each 12.82 |
| Buy 5 - 7 | and pay only $12.25 each 12.25 |
| Buy 8 or above | and pay only $11.19 each 11.19 |
- Stock Update:
- 05/17/2024 01:58:15 PM PST
Description
This item is brand-new, factory sealed.

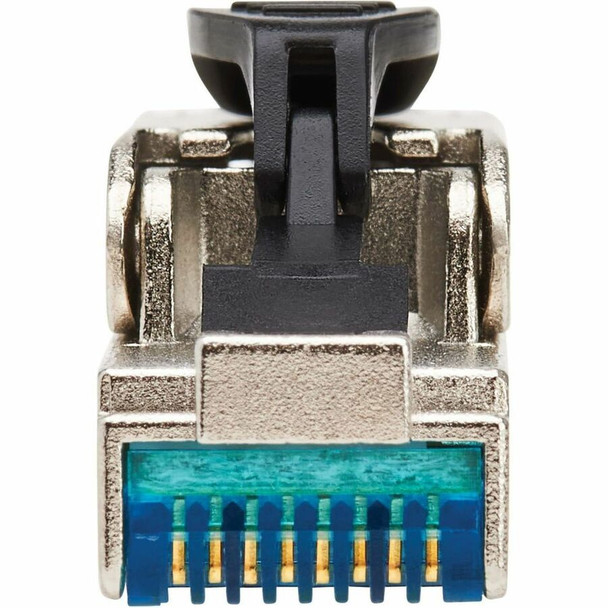

RJ45 Cat6a Plug Designed for Field Installation
This Cat6a RJ45 shielded plug simplifies the installation of devices in an above-ceiling application where installing a face plate isn't practical or where outlets, jacks and patch cables must be plenum rated. Modular Plug Terminated Link (MPTL) topology allows a Cat6a cable to be terminated to the N232-SHC6A-1, which then connects to a Type 3 or Type 4 PoE (Power over Ethernet) device, such as a WAP (Wireless Access Point) or surveillance camera.
Supports PoE++ Applications with up to 100W of Power
Connect high-power PoE devices such as video conferencing devices, laptops and flat screens, building management devices and more. The UL-compliant N232-SHC6A-1is 4PPoE (PoE++) compatible and IEEE 802.3bt compliant for PoE applications up to 100 watts.
Assembles Easily with No Special Tools Required
The die-cast zinc plug is made for fast, reliable terminations in the field with just a wire stripper/cutter. It accommodates 22-27 AWG solid or stranded cabling and 6-9 mm cable jacket diameters. Ideal for assembling high-performance patch cords in a hurry, the N232-SHC6A-1 can be re-terminated as many as 20 times. An IDC cap and dust cap are included.
Premium Protection from EMI/RFI and Other Noise Helps Your Equipment Perform Better
The fully shielded metal housing blocks disruptive EMI and RFI line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
A Must-Have for Modern Data Centers
The durable zinc alloy and nickel-plated composition ensures your connection is built to last. A locking cylinder screws into place to ensure the installed cable remains secured.
TAA-Compliant for GSA Schedule Purchases
The N232-SHC6A-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Package Contents:
- Cat6a Class EA STP Field-Termination Plug, 568A/568B, TAA
- IDC Cap
- Dust Cap
Features
- Cat6a Class EA STP Field-Termination Plug, 568A/568B, TAA
- IDC Cap
- Dust Cap
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Specs
| Physical Characteristics | |
| Product Material |
|
| Product Color |
|
| Height | 0.7" |
| Color Family | Multicolor |
| Width | 1.9" |
| Depth | 0.5" |
| Material Details | <p>Die-cast Zinc - Plug</p><p>Metal - Housing</p><p>Zinc Alloy - Housing</p><p>Polycarbonate - IDC Housing Cover</p><p>Polyoxymethylene (POM) - C-Ring</p> |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Tripp Lite by Eaton |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Marketing Information | RJ45 Cat6a Plug Designed for Field Installation This Cat6a RJ45 shielded plug simplifies the installation of devices in an above-ceiling application where installing a face plate isn't practical or where outlets, jacks and patch cables must be plenum rated. Modular Plug Terminated Link (MPTL) topology allows a Cat6a cable to be terminated to the N232-SHC6A-1, which then connects to a Type 3 or Type 4 PoE (Power over Ethernet) device, such as a WAP (Wireless Access Point) or surveillance camera. Supports PoE++ Applications with up to 100W of Power Connect high-power PoE devices such as video conferencing devices, laptops and flat screens, building management devices and more. The UL-compliant N232-SHC6A-1is 4PPoE (PoE++) compatible and IEEE 802.3bt compliant for PoE applications up to 100 watts. Assembles Easily with No Special Tools Required The die-cast zinc plug is made for fast, reliable terminations in the field with just a wire stripper/cutter. It accommodates 22-27 AWG solid or stranded cabling and 6-9 mm cable jacket diameters. Ideal for assembling high-performance patch cords in a hurry, the N232-SHC6A-1 can be re-terminated as many as 20 times. An IDC cap and dust cap are included. Premium Protection from EMI/RFI and Other Noise Helps Your Equipment Perform Better The fully shielded metal housing blocks disruptive EMI and RFI line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. A Must-Have for Modern Data Centers The durable zinc alloy and nickel-plated composition ensures your connection is built to last. A locking cylinder screws into place to ensure the installed cable remains secured. TAA-Compliant for GSA Schedule Purchases The N232-SHC6A-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product Type | Network Connector |
| Product Name | Cat6a Class EA STP Field-Termination Plug, 568A/568B, TAA |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N232SHC6A1 |
| Product Model | N232-SHC6A-1 |
| Technical Information | |
| Ingress Protection (IP) Rating | IP20 |
| Contact Plating | Gold |
| Connector Type | RJ-45 Network - Male |
| Connector Gender | Male |
| Connector Details | 1 x RJ-45 Network Male |
| Features |
|
| Shielding | Yes |
| Compatible Wire Gauge | 22-27 AWG |
