Tripplite
Tripp Lite Displayport 1.2 To Vga Compact Adapter Converter [dp-male To Vga-female] - 1 X Displayport Male Digital Audio/video - 1 X Hd-15 Female Vga - 1920 X 1200 Supported - Black (p134-000-vga-v2)
- SKU:
- 18154390
- MPN:
- p134-000-vga-v2
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/03/2026 09:35:56 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $25.80 each 25.8 |
| Buy 3 | and pay only $23.34 each 23.34 |
| Buy 4 | and pay only $21.65 each 21.65 |
| Buy 5 - 6 | and pay only $20.91 each 20.91 |
| Buy 7 or above | and pay only $19.53 each 19.53 |
- Stock Update:
- 07/03/2026 09:35:56 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's P134-000-VGA-V2, DisplayPort v1.2 to VGA Adapter Converter allows you to connect a computer with a DisplayPort connection to a VGA monitor. Displayport v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Fully molded one piece design ensures longer life. The P134-000-VGA-V2 is a passive adapter and requires that the connected computer has a DP++ (DisplayPort ++) dual-mode port, which allows VGA signals to be passed through. Check the documentation for your DisplayPort source for compatibility.
Features
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Vietnam
Specs
| Physical Characteristics | |
| Product Color | Black |
| Color Family | Black |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite's P134-000-VGA-V2, DisplayPort v1.2 to VGA Active Adapter Converter allows you to connect a computer with a DisplayPort connection to a VGA monitor. Displayport v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Fully molded one piece design ensures longer life. Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort output. It is ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals. More from the Manufacturer |
| Product Type | Video Adapter |
| Product Name | DisplayPort 1.2 to VGA Compact Adapter Converter (DP-Male to VGA-Female) |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P134-000-VGA-V2 |
| Product Model | P134-000-VGA-V2 |
| Technical Information | |

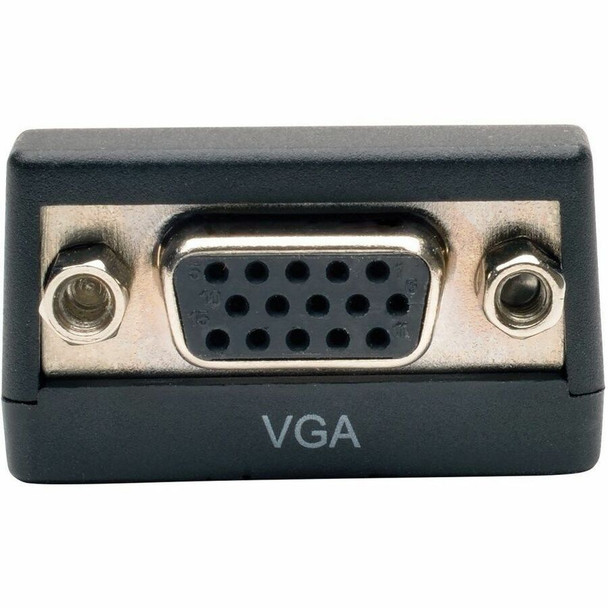

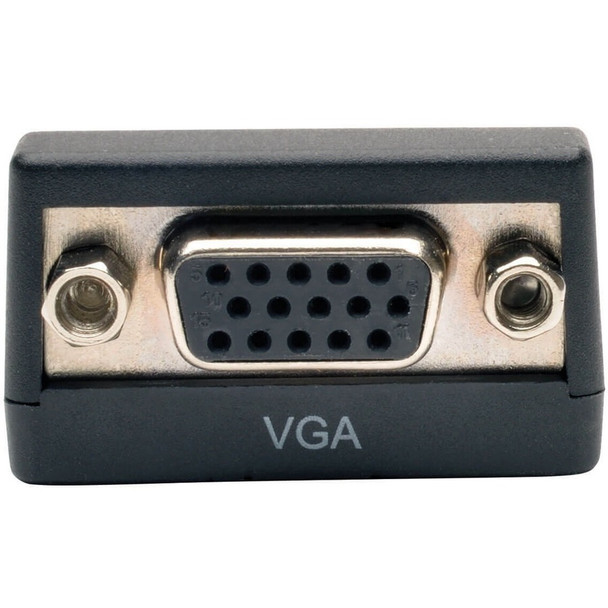

| Connector on Second End Details | 1 x 15-pin HD-15 VGA Female |

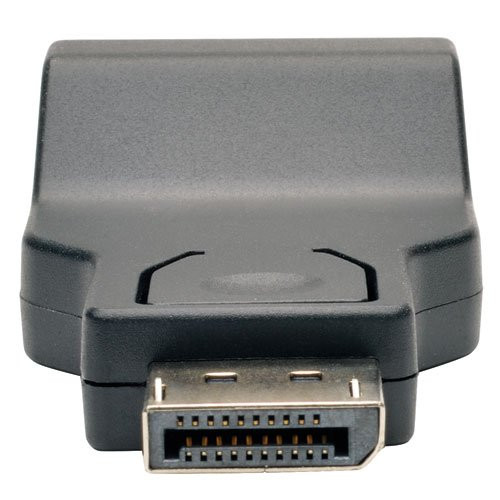

| Connector on First End Details | 1 x DisplayPort DisplayPort 1.2 Digital Audio/Video Male |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HD-15 - Female |
| Features | Molded |
| Adapter Type | DisplayPort/VGA |
| Maximum Resolution Supported | 1920 x 1200 |
Warranty Information
