Tripplite
Tripp Lite Fibre Channel Patch Cable - 2 X Sc Male - 2 X Sc Male - 3.28ft - Yellow (n50601m) (n506-01m)
- SKU:
- 19846446
- MPN:
- n506-01m
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/06/2026 06:38:52 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $20.45 each 20.45 |
| Buy 3 | and pay only $19.04 each 19.04 |
| Buy 4 | and pay only $17.99 each 17.99 |
| Buy 5 - 6 | and pay only $16.99 each 16.99 |
| Buy 7 or above | and pay only $16.32 each 16.32 |
- Stock Update:
- 02/06/2026 06:38:52 AM PST
Description
This item is brand-new, factory sealed.

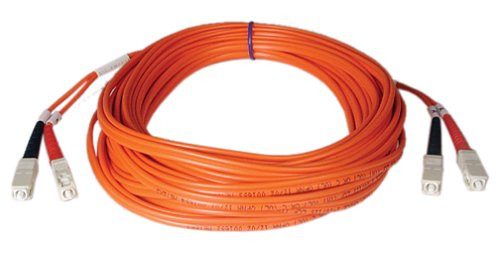

Tripp Lite's 1-meter multimode duplex Fibre Channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 2, 3, 5, 10, 15, 30, and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-" for SC-LC cables, and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Package Contents:
- Fibre Channel Patch Cable
- 1M duplex MMF cable SC/SC 50/125 fiber
Features
- Fibre Channel Patch Cable
- 1M duplex MMF cable SC/SC 50/125 fiber
Certifications & Standards:
- FDDI
- OFNR
Additional Information:
- Number of fibers: 2
- Fiber type: all glass graded index
- Core diameter: two 50+/-3 microns
- CLAD diameter: 125+/-2 microns
- Primary coating diameter: 245+/-15 microns
- Secondary coating diameter: 900+/-50 microns
- Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
- Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
- Numeric apeture: .275 nominal
- Proof test level: 100,000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
- Beveled edge on ends of glass makes insertion of plug a breeze
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Color | Orange |
| Color Family | Orange |
| Shipping Weight (Approximate) | 1 oz |
| Shipping Width | 7" |
| Shipping Height | 9" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite's 1-meter multimode duplex Fibre Channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 2, 3, 5, 10, 15, 30, and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-" for SC-LC cables, and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life. More from the Manufacturer |
| Product Type | Network Cable |
| Product Name | Fibre Channel Patch Cable |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N50601M |
| Technical Information | |
| Connector on Second End Details | 2 x SC Network - Male |
| Cable Type | Fiber Optic |
| Connector on First End Details | 2 x SC Network - Male |
| Connector Type on First End | SC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Cable Length | 3.30 ft |
| Jacket Type | Plenum |
| Cable Characteristic | Patch Cable |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
