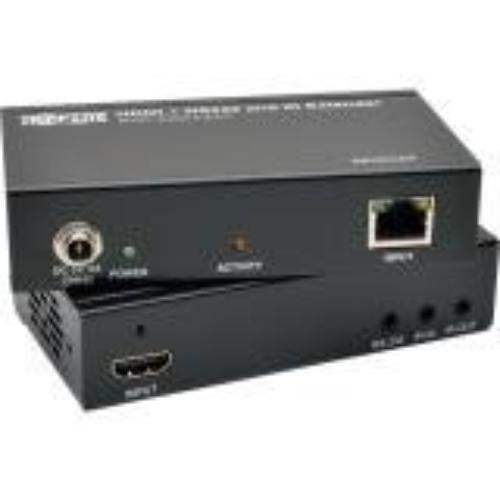

Tripp Lite Hdbaset Lite Hdmi Over Cat5e Cat6 Extender Serial Ir 500ft Range - 1 Input Device - 1 Output Device - 2 X Network [rj-45] - 1 X Hdmi In - 1 X Hdmi Out - Full Hd - 1920 X (bhdbt-k-si-er)

(No reviews yet) Write a Review
SKU:
19751355
MPN:
bhdbt-k-si-er
Availability:
Usually ships the same or next business day. In stock at our CA warehouse.
Shipping:
Calculated at Checkout
Stock Update:
11/26/2022 11:04:33 PM PST
  • Main
  • Rear
  • Front
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$330.74

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 or above and pay only $324.83 each 324.83
Stock Update:
11/26/2022 11:04:33 PM PST

Description



This item is brand-new, factory sealed.

Tripp Lite's BHDBT-K-SI-ER implements HDBaseT technology to transmit HDMI audio and video, RS-232 Serial, and IR Remote Control signals up to 500-ft. (150M) over a single Cat5e/6/6a cable, displaying HD video resolutions up to 1920 x 1080 (1080p) @ 60Hz. You can further expand the range and number of monitors in your installation by adding BHDBT-TR-SI-ER transceivers in between the transmitter and receiver units. The BHDBT-TR-SI-ER features a HDMI port for the connection of a monitor, and can be located 500-ft. (150M) from the transmitter unit. The receiver unit can then be located the same distance from the transceiver, allowing you to double the total extension distance. Up to 5 transceiver units can be inserted in between the transmitter and receiver, allowing for an overall extension distance of up to 3,000-ft. (900M), with a monitor located at each point in the chain.

In addition to transmitting HDMI audio and video, the BHDBT-K-SI-ER features 2-way IR Remote Control, allowing you to control your Blu-Ray player using its remote control when at the remote display, or to control your remote display using its remote control when at the Blu-Ray player. (IR Frequency @ 39Khz) RS-232 Serial is also transmitted, with support for baud rates up to 115kbps, allowing you to control serial devices such as touchscreens or scanners.

The transmitter and receiver feature locking HDMI ports, for use with Tripp Lite's series of High Speed HDMI cables with Locking connectors (e.g. P569-006-LOCK). These cables lock into the ports on the transmitter and receiver units, preventing them from accidentally being loosened or disconnected, and ensuring that your signal remains intact, The BHDBT-K-SI-ER supports 7.1 channel surround sound, DTS-HD, and Dolby TrueHD audio, as well as 3D video, EDID, and HDCP. Mounting hardware is included that allows each unit to be wall mounted, rack mounted, or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Package Contents:
  • Transmitter
  • Receiver
  • IR-IN and IR-OUT Cables
  • 3.5 mm Male to DB9 Female Adapter Cable
  • 3.5 mm Male to DB9 Male Adapter Cable
  • 2 x External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A)
  • Mounting Hardware
  • Owner's Manual

Features

Package Contents:
  • Transmitter
  • Receiver
  • IR-IN and IR-OUT Cables
  • 3.5 mm Male to DB9 Female Adapter Cable
  • 3.5 mm Male to DB9 Male Adapter Cable
  • 2 x External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A)
  • Mounting Hardware
  • Owner's Manual



Certifications & Standards:
  • TAA
  • CE
  • FCC



Environmental Certification:

RoHS
REACH



TAA Compliant:
Yes



Environmentally Friendly:
Yes



Country of Origin:
Taiwan



Specs

Power Description
Input Voltage
Physical Characteristics
Form Factor
Transmitter Weight (Approximate)1.05 lb
Product ColorBlack
Warranty
Limited Warranty1 Year
Interfaces/Ports
Network (RJ-45)Yes
HDMI OutYes
Number of HDMI Inputs1
HDMI InYes
Number of HDMI Outputs1
Number of Network (RJ-45) Ports2
Video
Maximum Video Resolution1920 x 1080
Graphics ModesFull HD
General Information
Brand NameTripp Lite
Manufacturer Website Addresshttp://www.tripplite.com
Marketing InformationTripp Lite's BHDBT-K-SI-ER implements HDBaseT technology to transmit HDMI audio and video, RS-232 Serial, and IR Remote Control signals up to 500-ft. (150M) over a single Cat5e/6/6a cable, displaying HD video resolutions up to 1920 x 1080 (1080p) @ 60Hz. You can further expand the range and number of monitors in your installation by adding BHDBT-TR-SI-ER transceivers in between the transmitter and receiver units. The BHDBT-TR-SI-ER features a HDMI port for the connection of a monitor, and can be located 500-ft. (150M) from the transmitter unit. The receiver unit can then be located the same distance from the transceiver, allowing you to double the total extension distance. Up to 5 transceiver units can be inserted in between the transmitter and receiver, allowing for an overall extension distance of up to 3,000-ft. (900M), with a monitor located at each point in the chain.
In addition to transmitting HDMI audio and video, the BHDBT-K-SI-ER features 2-way IR Remote Control, allowing you to control your Blu-Ray player using its remote control when at the remote display, or to control your remote display using its remote control when at the Blu-Ray player. (IR Frequency @ 39Khz) RS-232 Serial is also transmitted, with support for baud rates up to 115kbps, allowing you to control serial devices such as touchscreens or scanners.
The transmitter and receiver feature locking HDMI ports, for use with Tripp Lite's series of High Speed HDMI cables with Locking connectors (e.g. P569-006-LOCK). These cables lock into the ports on the transmitter and receiver units, preventing them from accidentally being loosened or disconnected, and ensuring that your signal remains intact, The BHDBT-K-SI-ER supports 7.1 channel surround sound, DTS-HD, and Dolby TrueHD audio, as well as 3D video, EDID, and HDCP. Mounting hardware is included that allows each unit to be wall mounted, rack mounted, or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Product TypeVideo Extender Transmitter/Receiver
Product NameBHDBT-K-SI-ER Video Console/Extender
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberBHDBT-K-SI-ER
Product ModelBHDBT-K-SI-ER
Media & Performance
Twisted Pair Cable StandardCategory 6a
Media Type SupportedTwisted Pair
Technical Information
Maximum Operating Distance500 ft
Number of Input Devices Supported1
Connectivity TechnologyWired
Number of Output Devices Supported1
