Tripp Lite HDMI over Cat5 Extender Receiver, Passive, Low-Profile, 1080p (b126-1p0-mini)
- SKU:
- 18869794
- MPN:
- b126-1p0-mini
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/19/2026 03:40:19 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $40.94 each 40.94 |
| Buy 3 | and pay only $38.46 each 38.46 |
| Buy 4 | and pay only $36.24 each 36.24 |
| Buy 5 - 7 | and pay only $35.50 each 35.5 |
| Buy 8 or above | and pay only $34.39 each 34.39 |
- Stock Update:
- 06/19/2026 03:40:19 AM PST
Description
This item is brand-new, factory sealed.

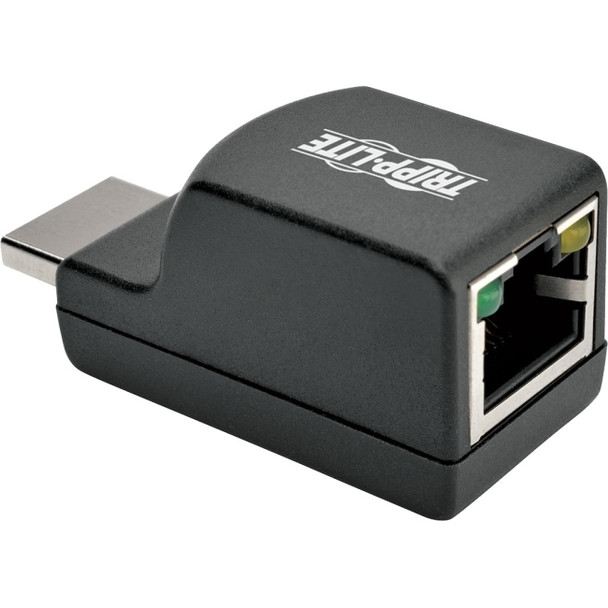

The B126-1P0-MINI HDMI over Cat5/Cat6 Passive Extender, Low-Profile Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters (sold separately) to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's recommended for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.
The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI's built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100 feet (30.5 m) or a 1080p (@ 60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (such as Tripp Lite's N202-Series) between this unit and the transmitter.
In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required.
Features
Extends High-Definition Signals
- Works in tandem with Tripp Lite's B126-002 and B126-004 transmitter units (sold separately)
- Extends a 1080i (@ 60 Hz) signal up to 100 ft. (30.5 m)
- Extends a 1080p (@ 60 Hz) signal up to 50 ft. (15.2 m)
- Connects to transmitter with one Cat5e/6 cable
- Built-in HDMI male connector plugs directly into monitor
Supports the Latest Video and Audio Resolutions
- Works with all operating systems and HDMI video sources
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) when paired with B126-002 or B126-004
- Supports 24-bit True Color (8 bits per channel) and HDCP
Easy to Set Up and Use
- Plug-and-play engineering-no software or drivers necessary
- No external power required; included USB Micro-B cable provides extra power when necessary
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

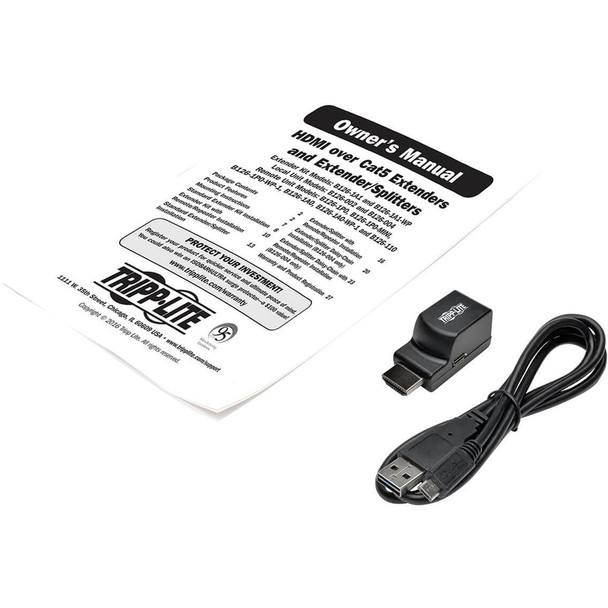

Package Contents:
- B126-1P0-MINI HDMI over Cat5/Cat6 Passive Low-Profile Remote Receiver
- USB Micro-B Cable
- Owner's Manual
Features
- B126-1P0-MINI HDMI over Cat5/Cat6 Passive Low-Profile Remote Receiver
- USB Micro-B Cable
- Owner's Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Color | Black |
| Color Family | Black |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Number of USB Ports | 1 |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Graphics Modes | Full HD |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The B126-1P0-MINI HDMI over Cat5/Cat6 Passive Extender, Low-Profile Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters (sold separately) to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's recommended for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI's built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100 feet (30.5 m) or a 1080p (@ 60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (such as Tripp Lite's N202-Series) between this unit and the transmitter. In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required. Features Extends High-Definition Signals Works in tandem with Tripp Lite's B126-002 and B126-004 transmitter units (sold separately) Extends a 1080i (@ 60 Hz) signal up to 100 ft. (30.5 m) Extends a 1080p (@ 60 Hz) signal up to 50 ft. (15.2 m) Connects to transmitter with one Cat5e/6 cable Built-in HDMI male connector plugs directly into monitor Supports the Latest Video and Audio Resolutions Works with all operating systems and HDMI video sources Supports stereo and 7.1-channel surround sound (multi-channel or PCM) when paired with B126-002 or B126-004 Supports 24-bit True Color (8 bits per channel) and HDCP Easy to Set Up and Use Plug-and-play engineering-no software or drivers necessary No external power required; included USB Micro-B cable provides extra power when necessary TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases More from the Manufacturer |
| Product Type | Video Extender Receiver |
| Product Name | B126-1P0-MINI HDMI over Cat5/Cat6 Passive Low-Profile Remote Receiver |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B126-1P0-MINI |
| Product Model | B126-1P0-MINI |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 100 ft |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
