Tripp Lite Monitored PDUMNH30HV 16-Outlets PDU - 4 x IEC 60320 C19, 12 x IEC 60320 C13 - 2U Horizontal Rackmount
(No reviews yet)
Write a Review
- SKU:
- 18380377
- MPN:
- pdumnh30hv
- Availability:
- Out of stock
- Stock Update:
- 12/17/2025 10:40:35 AM PST
- Stock Update:
- 12/17/2025 10:40:35 AM PST
Description
This item is brand-new, factory sealed.

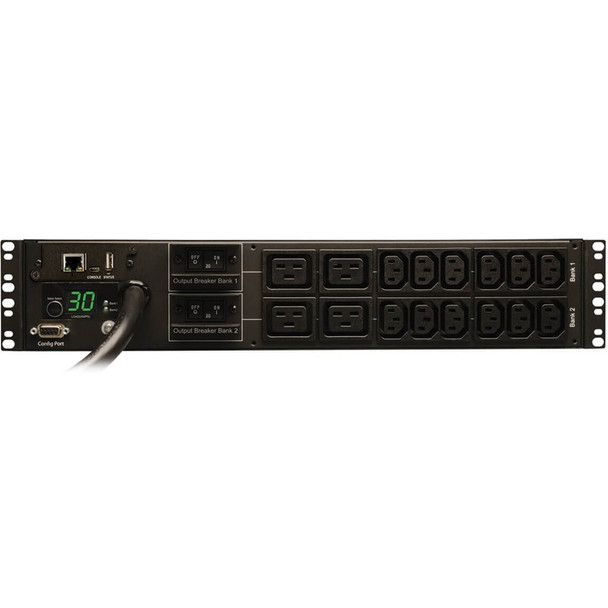

PDUMNH30HV horizontal 2U monitored rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 16 230V outlets (12 C13, 4 C19). Outlets are arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
Package Contents:
- Monitored PDUMNH30HV 16-Outlets PDU
- Rack Installation Brackets
- Cable Retention Brackets
- SNMPWEBCARD Configuration Cable
- PowerAlert Software Kit
- User Manual
Features
Package Contents:
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- Monitored PDUMNH30HV 16-Outlets PDU
- Built-in LX Platform interface
- L5-20R to 5-20P adapter
- Plug retention plates
- Rack-mounting brackets
- Owner's manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | 13.70 lb |
| Mount Type | Rack-mountable |
| Height | 3.5" |
| Mounting Orientation | Horizontal |
| Width | 17.5" |
| Rack Height | 2U |
| Depth | 12.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Eaton |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. More from the Manufacturer |
| Product Type | PDU |
| Product Name | Monitored PDUMNH30HV 16-Outlets PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNH30HV |
| Product Model | PDUMNH30HV |
| Product Series | Monitored |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Plug/Connector Type | NEMA L6-30P |
| PDU Type | Monitored |
| Protection Type | Overload Protection |
| Management | |
| Management | <p><b>Protocols:</b></p><ul><li>HTTP</li><li>HTTPS</li><li>SMTP</li><li>SNMPv1</li><li>SNMPv2</li><li>Telnet</li><li>FTP</li><li>DHCP</li><li>BOOTP</li><li>NTP</li></ul> |
