Tripp Lite N838-03M Fiber Optic Duplex Patch Cable - Fiber Optic for Network Device - 9.84 ft - 2 x Mini-LC Male Network - 2 x Mini-LC Male Network - Aqua
(No reviews yet)
Write a Review
- SKU:
- 18245163
- MPN:
- n838-03m
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/24/2026 06:38:50 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $32.48 each 32.48 |
| Buy 3 | and pay only $30.27 each 30.27 |
| Buy 4 or above | and pay only $29.54 each 29.54 |
- Stock Update:
- 02/24/2026 06:38:50 PM PST
Description
This item is brand-new, factory sealed.

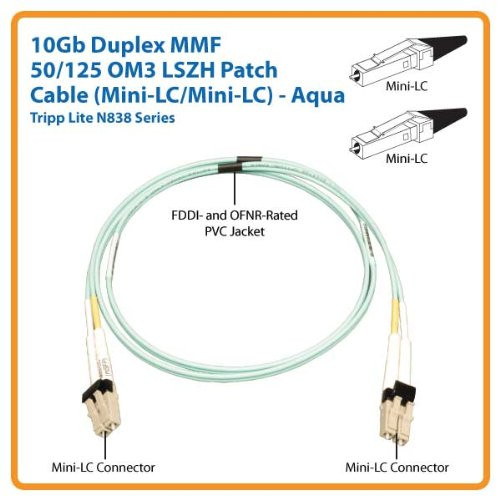

3M (10-ft.) 10Gb Duplex MMF 50/125 OM3 LSZH Patch cable ( Mini-LC to Mini-LC ) - Aqua
- UPC Code: 037332165831
- Technology: Multimode
- Optical Mode: OM3
- Cable Jacket Color: Aqua
- Connector Color: White; Black; Beige
- Cable Jacket Material: LSZH
- Cable Jacket Rating: OFNR
- Clad Diameter (microns): 125
- Core Diameter (microns): 50
- Number of Fibers: 2
- Cable Length (ft.): 9.8
- Cable Length (in.): 118.1
- Minimum Bend Radius: 20MM (Dynamic); 10MM (Static)
- Shipping Dimensions (hwd / in.): 0.10x5.60x5.60
- Shipping Weight (lbs.): 0.10
- Fiber Cable Length: 3M (9.8 ft)
- Operating Temperature Range: -4 to 140 F (-20 to 60 C)
- Storage Temperature Range: -4 to 140 F (-20 to 60 C)
- Operating Humidity Range: 5% to 85% RH, Non-Condensing
- Storage Humidity Range: 35% to 65% RH, Non-Condensing
- Network Compatibility: 1 Gbps (Gigabit); 10 Gbps; 40 Gbps; 100 Gbps
- Attenuation @ 850NM: 3.0dB/Km
- Insertion Loss: ≤0.20dB
- Side A - Connector 1: MINI LC DUPLEX (MALE)
- Side B - Connector 1: MINI LC DUPLEX (MALE)
- Endface Polish: PC
- Product Compliance: RoHS; REACH
- Product Warranty Period (Worldwide): Lifetime limited warranty
Features
Environmentally Friendly:
Yes
Restriction of Hazardous Substances (RoHS)
China
Yes
Compatibility:
Brocade FC8-64 Blade
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Color | Aqua |
| Color Family | Green |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite introduces it's new, Mini-LC to Mini-LC, OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications, utilizing mini SFP transceivers, such as Brocade FC8-64 High Density 64-port Fibre Channel Blade. These new technology, 50/125um, mini-LC / mini-LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life. More from the Manufacturer |
| Product Type | Network Cable |
| Product Name | N838-03M Fiber Optic Duplex Patch Cable |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N838-03M |
| Product Model | N838-03M |
| Technical Information | |
| Connector on Second End Details | Mini-LC Network - Male |
| Cable Type | Fiber Optic |
| Connector on First End Details | Mini-LC Network - Male |
| Connector Type on First End | Mini-LC Network - Male |
| Connector Type on Second End | Mini-LC Network - Male |
| Cable Length | 10 ft |
| Jacket Type | LSZH |
| Cable Characteristic | Patch Cable |
| Device Supported | Network Device |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
