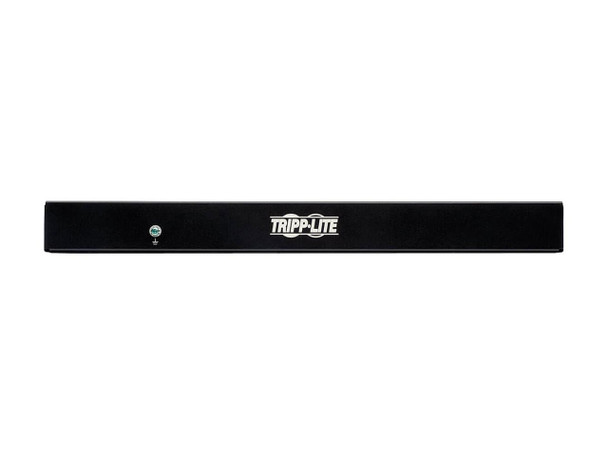

Tripp Lite PDU Switched 120V 1.4kW 15A 8 5-15R 5-15P LX Interface 1URM TAA (pdumh15net2lx)

This item is brand-new, factory sealed.

The PDUMH15NET2LX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.


The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-ft. (3.66 m) cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.


The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.


A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws. OVERVIEW
PDU Type
Switched INPUT
PDU Input Voltage
120V
Recommended Electrical Service
Single-phase 15A 120V service
Maximum Input Amps
12
Maximum Input Amps Details
Agency de-rated to 12A continuous
PDU Plug Type
NEMA 5-15P
Input Phase
Single-Phase
Input Cord Length (m)
3.66 OUTPUT
Output Capacity Details
1.44kW (120V) / 12A total capacity, 12A max per outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(8) 5-15R
Output Nominal Voltage
120V
Overload Protection
n/a
Customized Load Management Receptacles
8 individually switched output receptacles USER INTERFACE, ALERTS and CONTROLS
Front Panel LCD Display
Digital display reports total PDU output current in amps
Front Panel LEDs
8 LEDs display power on-off status for each output receptacle. Ethernet Link and Status LEDs for network activity. System status LED for monitoring system operation.
Switches
Recessed reset button for rebooting SNMP management card without affecting AC output to connected equipment PHYSICAL
Form Factors Supported
1U rackmount
Material of Construction
Metal
Minimum Required Rack Depth (cm)
18.54
PDU Form Factor
Horizontal (1U) ENVIRONMENTAL
Operating Temperature Range
0C - 40C (32F - 104F)
Storage Temperature Range
-30^oC to +50^oC (-22^oF to +122^oF)
Relative Humidity
5 to 95% (non-condensing) COMMUNICATIONS
SNMP Compatibility
Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems SPECIAL FEATURES
TVSS Grounding
Rear panel grounding lug
High Availability PDU Features
Auto Probe Monitoring and Reboot (included) STANDARDS and COMPLIANCE
Certifications
Tested to UL 60950-1 (USA). CAN/CSA-C22.2 NO. 60950-1 (Canada), Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant Item Dimension (L"x W"x H")
3 x 12 x 21
Weight
6.92 LB
Warranty Information
2-year limited warranty
