Tripp Lite PDU Switched 2.9kW 120V 24 5-15/20R LX Platform Interface 0U TAA (pdumv30netlx)

SKU:
18216043
MPN:
pdumv30netlx
Availability:
Out of stock
Stock Update:
04/05/2022 09:42:22 AM PST
  • Main
  • Front
  • Alternate-Image7
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1

Out of stock

Stock Update:
04/05/2022 09:42:22 AM PST
Frequently bought together:

Description

This item is brand-new, factory sealed.

The PDUMV30NETLX 2.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Features

Distributes Network-Grade Single-Phase Power

  • 2.9kW 120V switched PDU
  • Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

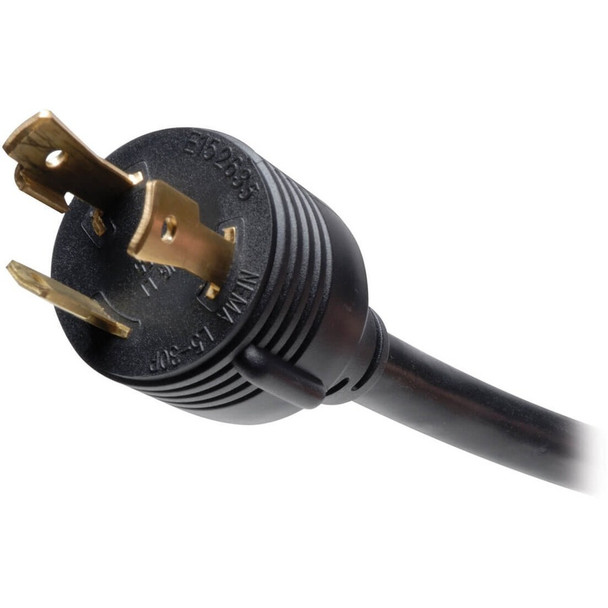

  • NEMA L5-30P plug with 10 ft. cord connects to compatible AC power source
  • Firmware upgrades support future product enhancements

24 Switched Outlets Distribute AC Power

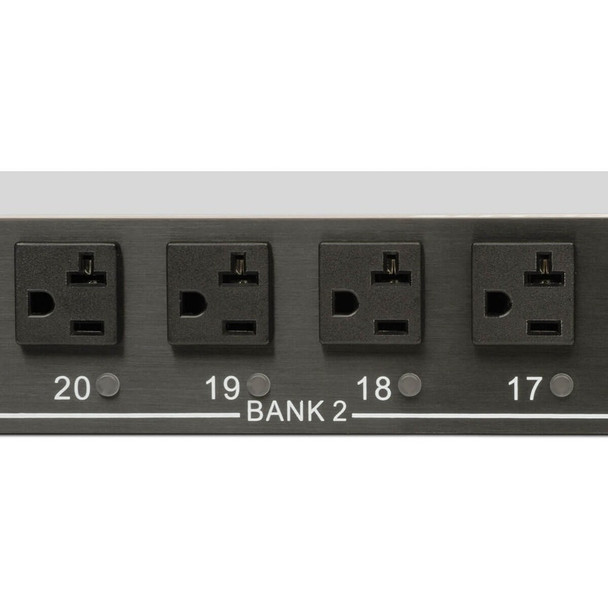

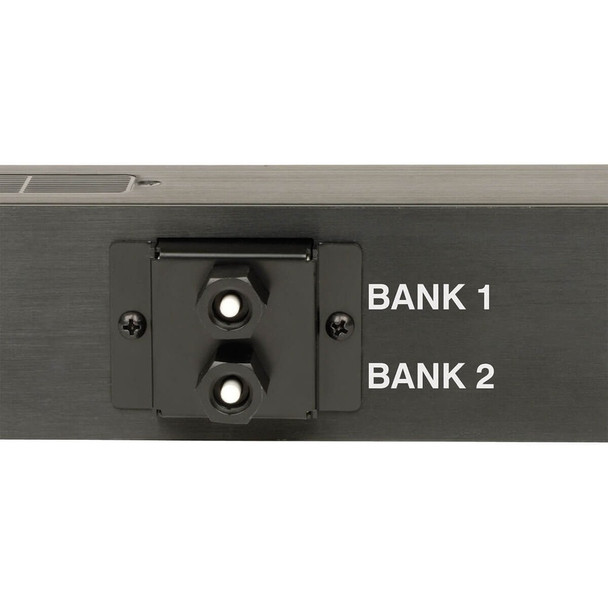

  • 24 NEMA 5-15/20R outlets split into 2 separately breakered load banks
  • Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
  • Cord retention brackets prevent cables from becoming accidentally disconnected

Digital Ammeter

  • Reports load level on each bank and total PDU output
  • Supports IP-address self-ID
  • Rotates 180° for easy reading at either angle

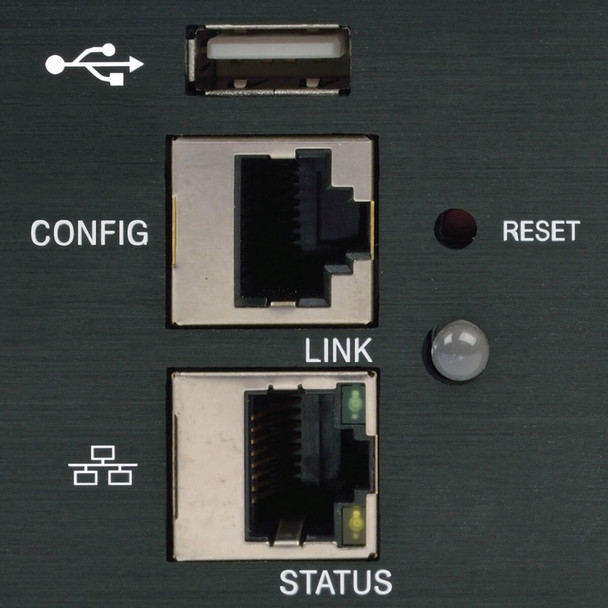

Built-In LX Platform Interface

  • Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
  • Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
  • Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
  • No Java required

Broad Communications Compatibility

  • Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
  • Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19 in. Racks

  • Mounts vertically using included toolless buttons or rack-mounting brackets
  • Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


Package Contents:
  • PDUMV30NETLX 2.9kW Single-Phase Switched PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 24 x Cable Ties
  • 2 x Cord Retention Brackets
  • Rack-mounting Hardware
  • PDUMVROTATEBRKT Mounting Bracket Accessory
  • Owner's Manual

Features

Package Contents:
  • PDUMV30NETLX 2.9kW Single-Phase Switched PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 24 x Cable Ties
  • 2 x Cord Retention Brackets
  • Rack-mounting Hardware
  • PDUMVROTATEBRKT Mounting Bracket Accessory
  • Owner's Manual



Environmental Certification:
RoHS



TAA Compliant:
Yes



Environmentally Friendly:
Yes



Country of Origin:
Taiwan



Specs

Power Description
Power Rating (Watt)2880 W
Input Voltage120 V AC
Output Voltage120 V AC
Input Current30 A
Physical Characteristics
Weight (Approximate)14.10 lb
Mount TypeRack-mountable
Height70"
Mounting OrientationVertical
Width2.2"
Rack Height0U
Depth2.7"
Warranty
Limited Warranty2 Year
Interfaces/Ports
Network (RJ-45)Yes
General Information
Brand NameTripp Lite
Manufacturer Website Addresshttp://www.tripplite.com
Marketing InformationThe PDUMV30NETLX 2.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Features
Distributes Network-Grade Single-Phase Power
2.9kW 120V switched PDU
Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
NEMA L5-30P plug with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements
24 Switched Outlets Distribute AC Power
24 NEMA 5-15/20R outlets split into 2 separately breakered load banks
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Cord retention brackets prevent cables from becoming accidentally disconnected
Digital Ammeter
Reports load level on each bank and total PDU output
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility
Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Product TypePDU
Product NamePDUMV30NETLX 2.9kW Single-Phase Switched PDU
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberPDUMV30NETLX
Product ModelPDUMV30NETLX
Technical Information
DesignModular
Receptacle TypeNEMA 5-15/20R
Receptacle Detail24 x NEMA 5-15/20R
PhaseSingle Phase
Plug/Connector TypeNEMA L5-30P
PDU TypeSwitched
Protection TypeOverload Protection
Management
Remote Outlet SwitchingYes
Management<ul> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP </li> <li>NTP</li> </ul>
