Tripp Lite Pdumnh20 Pdu 16 X Nema 5-15/20r - 1u Horizontal Rackmount
- SKU:
- 18257746
- MPN:
- pdumnh20
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/16/2025 04:40:11 PM PST
- Stock Update:
- 12/16/2025 04:40:11 PM PST
Description
This item is brand-new, factory sealed.

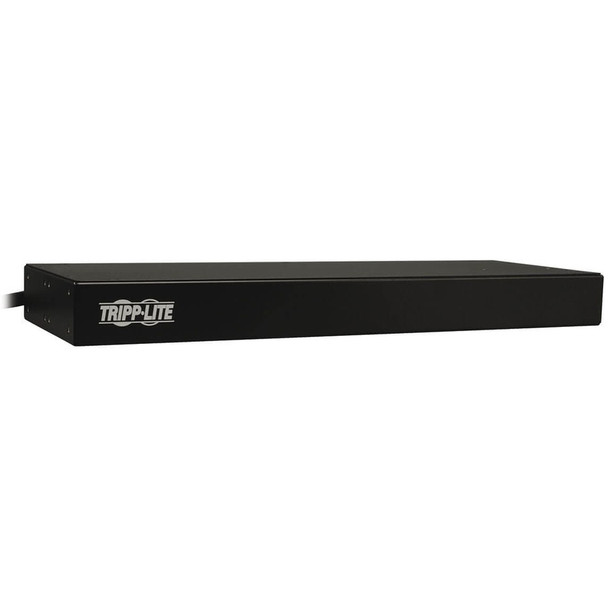

PDUMNH20 Monitored 1U Rackmount PDU supports 20A peak capacity at 120V (agency de-rated to 16 amps continuous). Includes attached L5-20P input cordset with 5-20P adapter and 8 5-15/20R outlets. Visual and remote current monitoring tracks real time output current level. Supports 0U vertical rackmount installation with included mounting brackets. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered. Monitored PDU systems support real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps is displayed locally via front panel lighted digital display. Advanced configurations support in-rack environmental monitoring with optional ENVIROSENSE temperature / humidity probe and rack access notification for up to 4 SRSWITCH or user supplied contact-closure sensors.
Package Contents:
- PDUMNH20 PDU Monitored 120V 20A 8 Outlet
- Plug Retention Plates
- Rack Mounting Brackets
- Owner's Manual
- NEMA L5-20R to NEMA 5-20P Adapter
Features
- PDUMNH20 PDU Monitored 120V 20A 8 Outlet
- Plug Retention Plates
- Rack Mounting Brackets
- Owner's Manual
- NEMA L5-20R to NEMA 5-20P Adapter
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 7 lb |
| Mount Type | Rack-mountable |
| Height | 1.7" |
| Mounting Orientation | Horizontal |
| Width | 17.3" |
| Rack Height | 1U |
| Depth | 6.2" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Eaton |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMNH20 PDU Monitored 120V 20A 8 Outlet |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNH20 |
| Product Model | PDUMNH20 |
| Technical Information | |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Plug/Connector Type | NEMA L5-20P |
| PDU Type | Monitored |
| Management | |
| Management | <p><b>Protocols:</b></p><ul><li>HTTP</li><li>HTTPS</li><li>PowerAlert Network Management System</li><li>SMTP</li><li>SNMPv1</li><li>SNMPv2</li><li>Telnet</li><li>FTP</li><li>DHCP</li><li>BOOTP</li><li>NTP</li></ul> |
