Tripplite

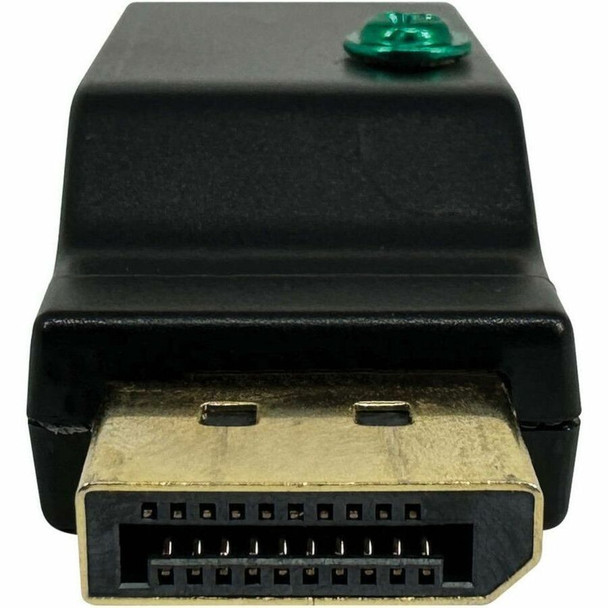

Tripp Lite series In-Line DisplayPort Surge Protector - 4K 60 Hz, HDCP, IEC Compliant, TAA (b110-sp-dp)
- SKU:
- 21392219
- MPN:
- b110-sp-dp
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/14/2026 12:06:22 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $48.28 each 48.28 |
| Buy 3 | and pay only $45.04 each 45.04 |
| Buy 4 - 9 | and pay only $44.04 each 44.04 |
| Buy 10 or above | and pay only $42.29 each 42.29 |
- Stock Update:
- 04/14/2026 12:06:22 AM PST
Description
This item is brand-new, factory sealed.
Features | In-Line Surge Protector Keeps Your DisplayPort (DP) Source or Display Safe
Ideal for trade shows, convention halls, home theaters and other digital signage applications, the B110-SP-DP protects connected equipment from damage caused by power surges and electrostatic discharge (ESD). Just connect it between your source and display using DP cables (such as P580-003 Series cables, sold separately) up to 15 feet (4.6 meters) long.
Your Last Defense Against Intruding Voltage Spikes
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Low TDMS (Transition Minimized Differential Signaling) loss ensures you get the crispest and cleanest image on your display without any interference, including static lines. The B110-SP-DP meets the following IEC regulations: IEC 61000-4-2 (ESD) +/- 15kV (air), +/- 8kV (contact); IEC 61000-4-4 (EFT) +/- 2KV (5KHz/100KHz); and IEC 61000-4-5 standard (+/- 1KV 1, 2/50 8/20µs).
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The B110-SP-DP supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. It is a passive design and requires no software or external power supply. The compact housing is designed to endure in applications where static discharge is likely to occur. This surge protector supports all DP specifications and capabilities.
TAA-Compliant for GSA Schedule Purchases
The B110-SP-DP is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Package Contents:
- In-Line DisplayPort Surge Protector - 4K 60 Hz, HDCP, IEC Compliant, TAA
- Grounding Wire, 1 ft. (0.3 m)
- Grounding Wire Screw
- Installation Instructions
Features
- In-Line DisplayPort Surge Protector - 4K 60 Hz, HDCP, IEC Compliant, TAA
- Grounding Wire, 1 ft. (0.3 m)
- Grounding Wire Screw
- Installation Instructions
Certifications & Standards:
- EN 55032
- EN 55035
- ICES (Canada)
- IEC 61000
- FCC Part 15 Class B (USA)
TAA Compliant:
Yes
Application/Usage:
A/V Equipment
Digital Signage
Notebook
Gaming Console
Satellite Box
HDTV
Monitor
Projector
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Physical Characteristics | |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Weight (Approximate) | 1.76 oz |
| Length | 1.83" |
| Product Color | Black |
| Height | 1.8" |
| Color Family | Black |
| Width | 0.9" |
| Depth | 0.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Features | In-Line Surge Protector Keeps Your DisplayPort (DP) Source or Display Safe Ideal for trade shows, convention halls, home theaters and other digital signage applications, the B110-SP-DP protects connected equipment from damage caused by power surges and electrostatic discharge (ESD). Just connect it between your source and display using DP cables (such as P580-003 Series cables, sold separately) up to 15 feet (4.6 meters) long. Your Last Defense Against Intruding Voltage Spikes Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Low TDMS (Transition Minimized Differential Signaling) loss ensures you get the crispest and cleanest image on your display without any interference, including static lines. The B110-SP-DP meets the following IEC regulations: IEC 61000-4-2 (ESD) +/- 15kV (air), +/- 8kV (contact); IEC 61000-4-4 (EFT) +/- 2KV (5KHz/100KHz); and IEC 61000-4-5 lightning standard (+/- 1KV 1, 2/50 8/20µs). Ready to Use Right from the Package, So You Can Plug and Play Immediately The B110-SP-DP supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. It is a passive design and requires no software or external power supply. The compact housing is designed to endure in applications where static discharge is likely to occur. This surge protector supports all DP specifications and capabilities. TAA-Compliant for GSA Schedule Purchases The B110-SP-DP is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product Type | Surge Suppressor/Protector |
| Product Name | In-Line DisplayPort Surge Protector - 4K 60 Hz, HDCP, IEC Compliant, TAA |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B110-SP-DP |
| Product Model | B110-SP-DP |
| Technical Information | |
| Plug/Connector Type | DisplayPort |
| Receptacles | 1 x DisplayPort |
| Dataline Protection | Audio/Video |
| Features |
|
| Environmental Conditions | |
| Maximum Storage Temperature | 122°F (50°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
