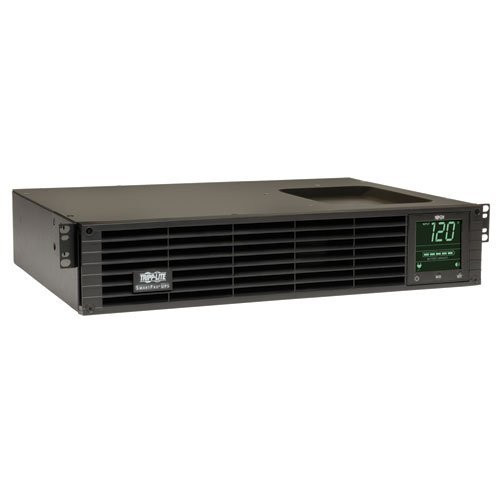

Tripp Lite UPS Smart 1500VA 1350W Rackmount AVR 120V Pure Sine Wave USB DB9 Preinstalled WEBCARDLX 2URM (SMART1500RM2UN)
- SKU:
- 18061156
- MPN:
- smart1500rm2un
- Availability:
- Usually ships in 1-2 business days. In stock at our CA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 09/29/2023 06:27:03 PM PST
- Stock Update:
- 09/29/2023 06:27:03 PM PST
Description
This item is brand-new, factory sealed.

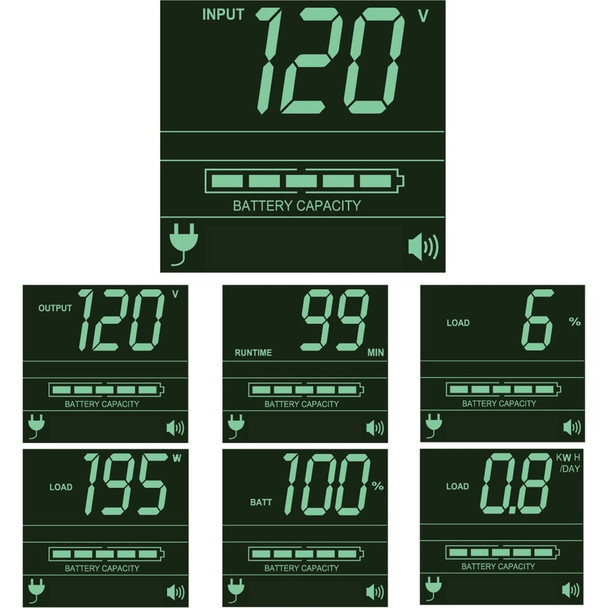

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and Pre-installed SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Package Contents:
- SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Rackmount Installation Kit
- Instruction Manual
Features
- SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD
- Pre-installed WEBCARDLX network interface
- USB cable
- DB9 cable
- EPO cable
- Mounting hardware
- Owner's manual
Certifications & Standards:
- UL1778
- CSA
- NOM
- FCC Part 15 Category B (EMI)
TAA Compliant:
Yes
Software Included:
PowerAlert Software
Country of Origin:
China
Specs
| Power Description | |
| Load Capacity | 1500 VA/1350 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Waveform Type | Pure Sine Wave |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 46.50 lb |
| Height | 3.5" |
| Width | 17.3" |
| Depth | 13.5" |
| Rack Height | 2U |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 13 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| General Information | |
| Brand Name | Tripp Lite |
| Manufacturer Website Address | https://tripplite.eaton.com/ |

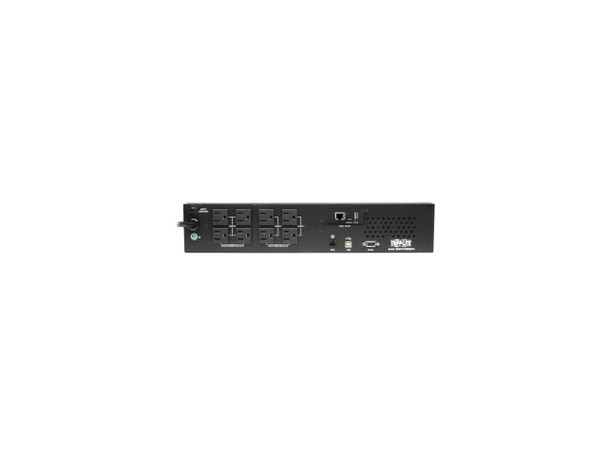

| Marketing Information | The SMART1500RM2UN SmartPro® 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART1500RM2UN switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. Featuring eight NEMA 5-15R outlets (four switchable) and a 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input, the SMART1500RM2UN has an internal battery that provides 13 minutes of support at half load and 4.5 minutes at full load. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. |
| Product Type | Line-interactive UPS |
| Product Name | SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART1500RM2UN |
| Product Model | SMART1500RM2UN |
| Product Line | SmartPro |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Application/Usage |
|
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
| Management | |
| Network Management | SNMP Manageable |
