Tripp Lite SmartRack Industrial Enclosure with Lock - NEMA 3R, Wall Mount, Metal Construction, Internal Fans, 16.5 in. Depth, 6U, Red (srn3rr6u)
- SKU:
- 20477758
- MPN:
- srn3rr6u
- Availability:
- Out of stock
- Shipping:
- $342.11 (Fixed Shipping Cost)
- Stock Update:
- 09/03/2025 06:44:24 AM PST
- Stock Update:
- 09/03/2025 06:44:24 AM PST
Description
This item is brand-new, factory sealed.

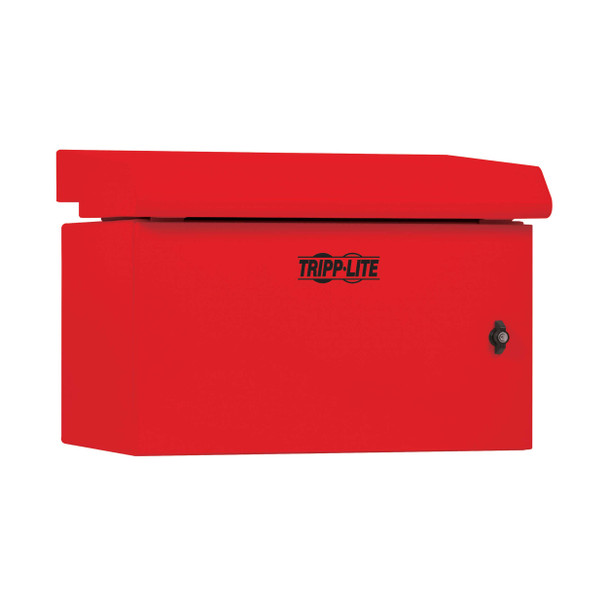

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 16.5 in. Deep
This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable red powder-coated finish, the SRN3RR6U has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications, especially security, fire, law enforcement and other first-responder applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RR6U protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The weather-sealed door allows easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation

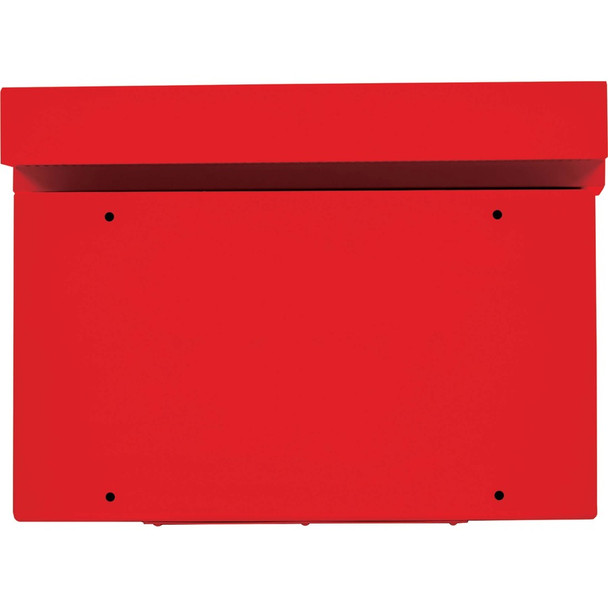

This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 16.5 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Package Contents:
- SRN3RR6U Industrial Enclosure
- 24 x 10-32 Screws
- 24 x M6 Washers
- 4 x LDPE Sheet Metal Plugs
- 4 x M10 Foam Washers
- 2 x Keys
- Owner's Manual
Features
- SRN3RR6U Industrial Enclosure
- 24 x 10-32 Screws
- 24 x M6 Washers
- 4 x LDPE Sheet Metal Plugs
- 4 x M10 Foam Washers
- 2 x Keys
- Owner's Manual
Environmentally Friendly:
Yes
Assembly Required:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin:
China
Specs
| Power Description | |
| Plug/Connector Type | NEMA 5-15P |
| Physical Characteristics | |
| Product Material |
|
| Form Factor | Wall Mountable |
| Weight (Approximate) | 73.53 lb |
| Product Color | Red |
| Rack Depth | 16.50" |
| Static/Stationary Weight Capacity | 200 lb |
| Maximum Weight Capacity | 200 lb |
| Height | 18" |
| Color Family | Red |
| Width | 25.2" |
| Depth | 20.8" |
| Rack Height | 6U |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 16.5 in. Deep This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable red powder-coated finish, the SRN3RR6U has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications, especially security, fire, law enforcement and other first-responder applications. NEMA 3R Enclosure Designed for Protection Against Harsh Elements The SRN3RR6U protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way. Locks Securely to Help Prevent Theft, Damage and Tampering The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The weather-sealed door allows easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout. Easy Enclosure and Equipment Installation This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 16.5 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer. |
| Product Type | Rack Mount Enclosure |
| Product Name | SmartRack SRN3RR6U Rack Mount Enclosure |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRN3RR6U |
| Product Model | SRN3RR6U |
| Product Line | SmartRack |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage |
|
| Features |
|
