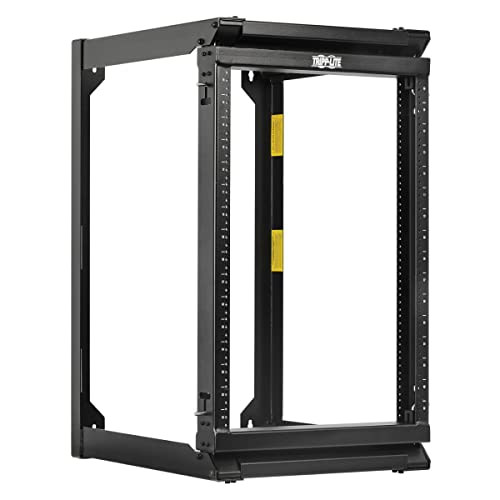

Tripp Lite SmartRack 16U Wall-Mount 2-Post Open Frame Rack, Hinged Front, Heavy Duty (srwo16us)
- SKU:
- 18532258
- MPN:
- srwo16us
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/25/2026 03:11:46 AM PST
- Stock Update:
- 07/25/2026 03:11:46 AM PST
Description
This item is brand-new, factory sealed.

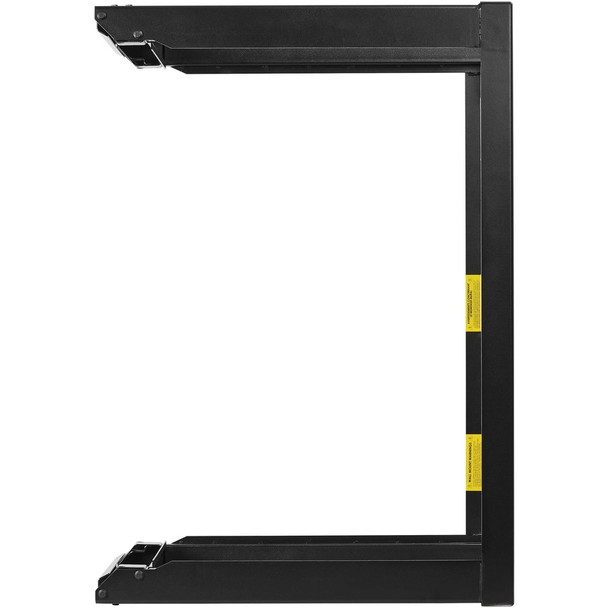

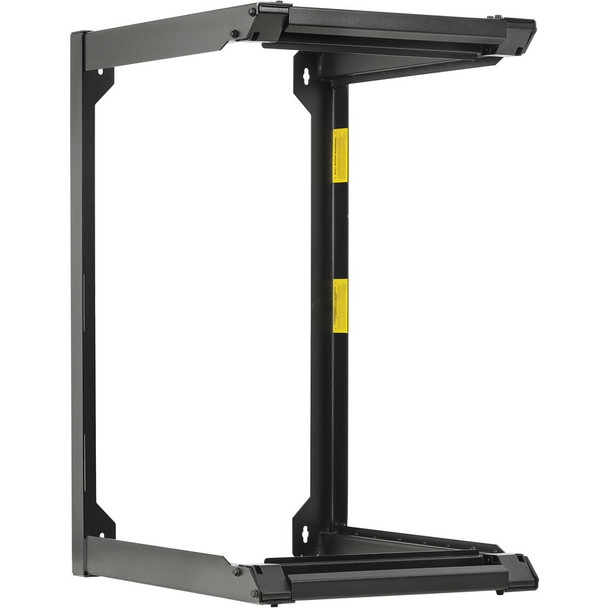

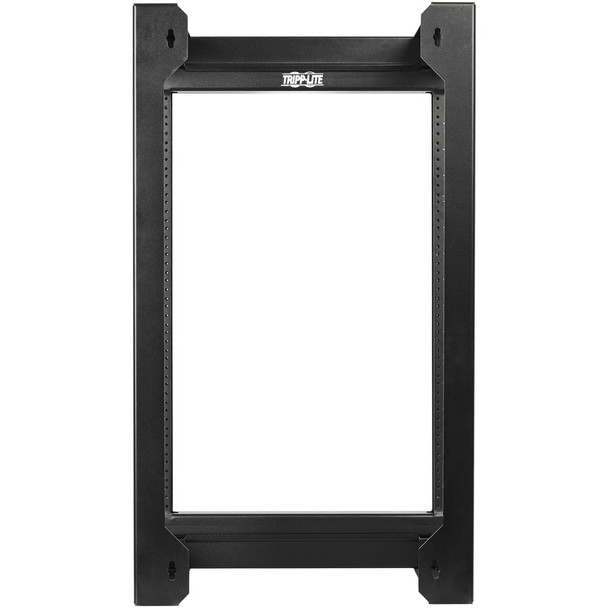

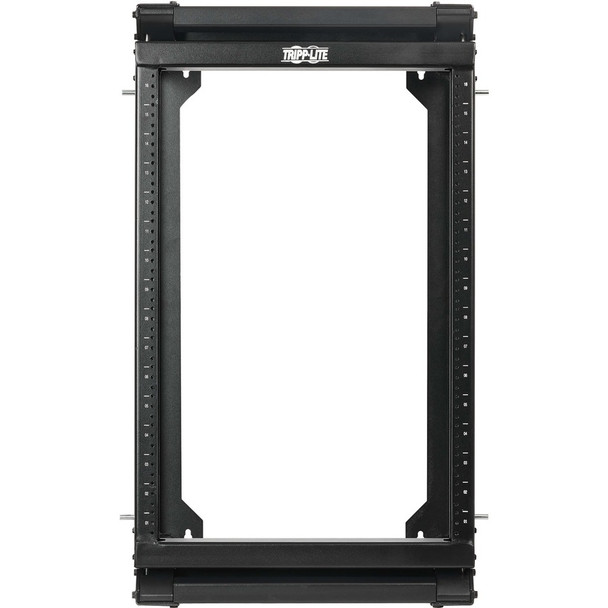

Tripp Lite 16U Wall-Mount Open Frame Server Rack Enclosure, 2-Post, Hinged Front, Heavy-Duty Steel, 12-24 Threaded & Numbered Mounting Holes, 5-Year Warranty (SRWO16US)- Wall-mount open frame rack stores 16U of 19-inch rack equipment up to 22 inches deep and swings open for maximum accessibility.
- 16U 2-post rack accommodates 19 inch rack equipment up to 22 inch deep.

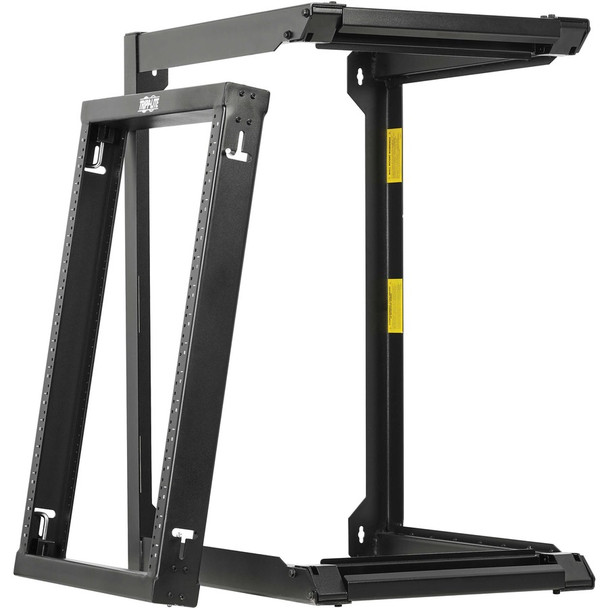

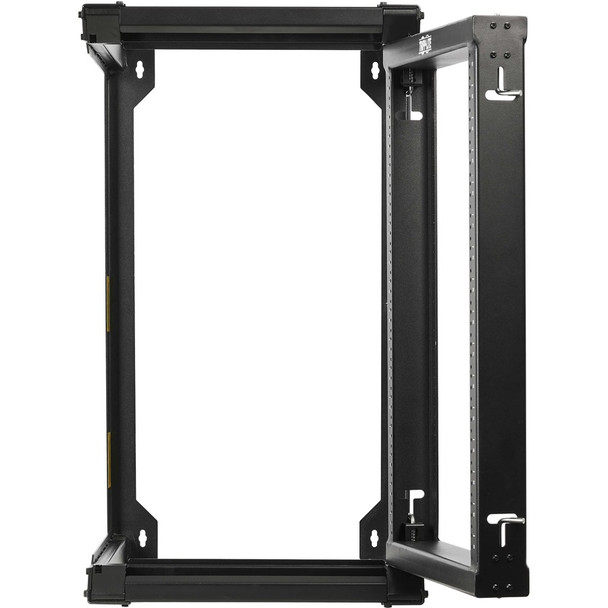

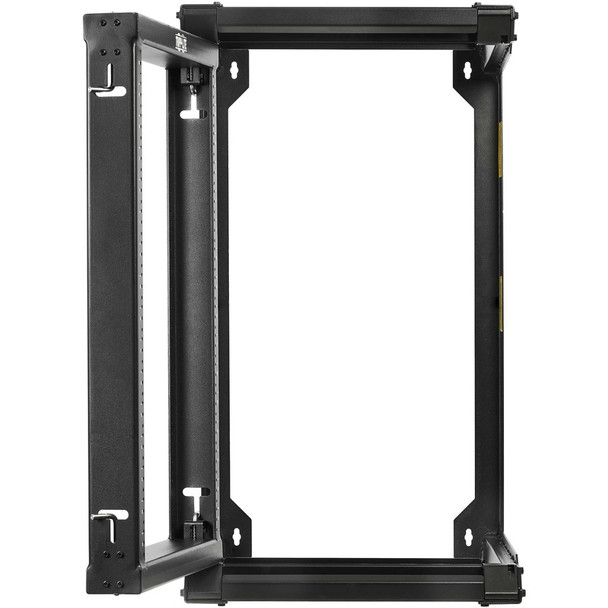

- Hinged front provides easy rear access to cables and equipment.

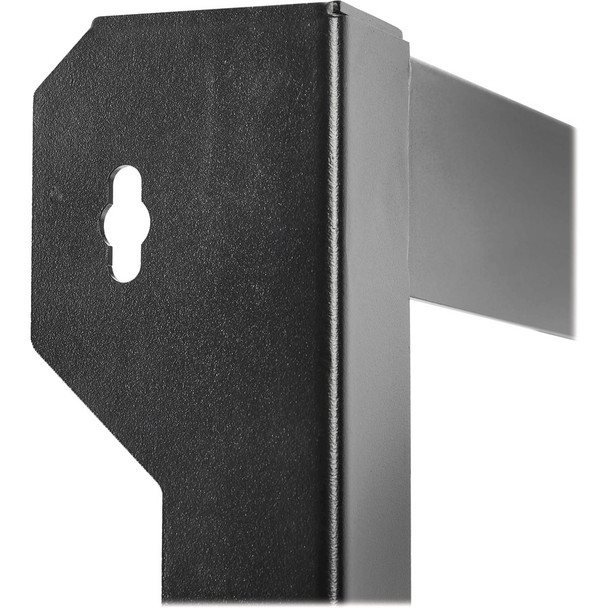

- Keyhole mounting slots are spaced 16 inches apart to match standard wall stud placement. Maximum load capacity is 150 lb.
- This product is covered by a 5-year limited manufacturer's warranty.
- Brand: Tripp Lite
- Item Weight: 76 pounds
- Package Dimensions: 40.16 x 28.94 x 9.45 inches
- Color: Black
- Manufacturer: TRIPP LITE
2-Post Wall-Mount Open Frame Rack Saves Valuable Floor Space: The SRWO16US open frame rack stores and organizes 16U of EIA-standard 19-inch rack equipment compatible with 2-post mounting. Designed for wall mounting, the rack saves space in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. The 2-post rack is made of heavy-duty steel with a durable black powder-coated finish. Maximum load capacity is 150 pounds (68 kilograms). Hinged Front Provides Convenient Access to Cables and Equipment: The hinged front of the rack can be mounted to open to the left or the right, providing unrestricted access for installing, configuring and servicing cables and EIA-standard 19-inch rack equipment up to 22 inches deep, such as network switches and patch panels. The swinging front frame can be secured in position to prevent movement during equipment installation. Easy Assembly and Equipment Mounting: Assemble this open frame rack on location with the included hardware. Wall-mounting holes are spaced 16 inches apart for standard wall stud placement with user-supplied fasteners. Vertical mounting rails with 12-24 threaded mounting holes accommodate equipment up to 22 inches deep. Rack spaces are numbered for easy reference.
Package Contents:
- SRWO16US 16U Wall-Mount 2-Post Open Frame Rack, Hinged
- 2 x Wall-Mount Bracket Frames
- 2 x Front Rail Assemblies
- Swinging Foor Assembly
- 16 x M6 Hex Bolts For Assembly
- Owner's Manual
Features
- SRWO16US 16U Wall-Mount 2-Post Open Frame Rack, Hinged
- 2 x Wall-Mount Bracket Frames
- 2 x Front Rail Assemblies
- Swinging Foor Assembly
- 16 x M6 Hex Bolts For Assembly
- Owner's Manual
Environmentally Friendly:
Yes
Assembly Required:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor | Floor Standing |
| Weight (Approximate) | 71.69 lb |
| Rack Width | 19" |
| Product Color | Black Powder Coat |
| Rack Depth | 22" |
| Static/Stationary Weight Capacity | 149.91 lb |
| Height | 36.6" |
| Color Family | Black |
| Width | 22.3" |
| Depth | 25.2" |
| Rack Height | 16U |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Wall-mount open frame rack stores 12U of 19-inch rack equipment up to 22 inches deep and swings open for maximum accessibility. Features | 2-Post Wall-Mount Open Frame Rack Saves Valuable Floor Space The SRWO16US open frame rack stores and organizes 16U of EIA-standard 19-inch rack equipment compatible with 2-post mounting. Designed for wall mounting, the rack saves space in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. The 2-post rack is made of heavy-duty steel with a durable black powder-coated finish. Maximum load capacity is 150 pounds (68 kilograms). Hinged Front Provides Convenient Access to Cables and Equipment The hinged front of the rack can be mounted to open to the left or the right, providing unrestricted access for installing, configuring and servicing cables and EIA-standard 19-inch rack equipment up to 22 inches deep, such as network switches and patch panels. The swinging front frame can be secured in position to prevent movement during equipment installation. Easy Assembly and Equipment Mounting Assemble this open frame rack on location with the included hardware. Wall-mounting holes are spaced 16 inches apart for standard wall stud placement with user-supplied fasteners. Vertical mounting rails with 12-24 threaded mounting holes accommodate equipment up to 22 inches deep. Rack spaces are numbered for easy reference. |
| Product Type | Rack Frame |
| Product Name | SmartRack 16U Wall-Mount 2-Post Open Frame Rack, Hinged Front, Heavy Duty |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRWO16US |
| Product Model | SRWO16US |
| Product Line | SmartRack |
| Technical Information | |
| Rack Type | Open Frame |
| Application/Usage |
|
| Rack Post Quantity | 2 |
| Features |
|
