Tripp Lite UPS Smart 3000VA 2250W Tower AVR 120V 3kVA USB DB9 SNMP (SMART3000VS)

SKU:
19267817
MPN:
smart3000vs
Availability:
Usually ships the same or next business day. In stock at our CA warehouse.
Shipping:
Calculated at Checkout
Stock Update:
09/27/2022 09:08:54 PM PST
  • Main
  • Right
  • Rear
$1,149.91
Stock Update:
09/27/2022 09:08:54 PM PST

Description

This item is brand-new, factory sealed.

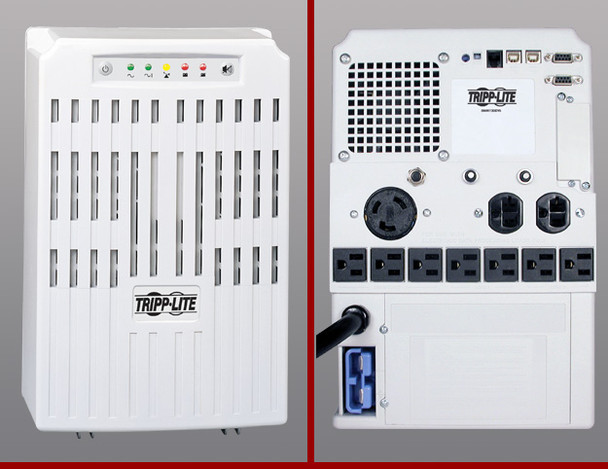

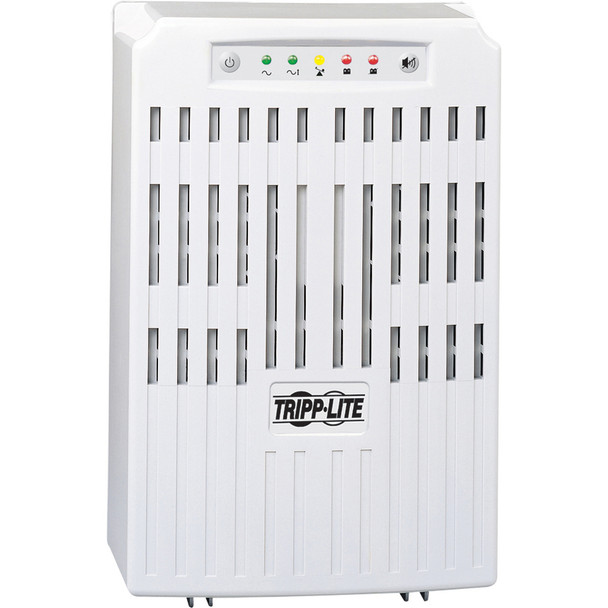

Tripp Lite's SMART3000VS intelligent, line interactive UPS with expandable runtime protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches. Large capacity 3000 VA / 2250 watt rated UPS system offers 4 minutes runtime at full load and 14 minutes at half load during power failures. Runtime is expandable with optional BP48V18 external battery packs. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 10 outlets, 3 of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes slot for internal SNMPWEBCARD, plus 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software. 2 year warranty. $250,000 connected equipment insurance.

Package Contents:
  • SmartPro VS Expandable Tower 3000VA UPS
  • SMART 3000VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual

Features

Package Contents:
  • SmartPro VS Expandable Tower 3000VA UPS
  • SMART 3000VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual



Certifications & Standards:
  • UL1778 (USA)
  • cUL (Canada)
  • NOM (Mexico)
  • Emissions: FCC Class A



Additional Information:
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
  • Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment



Country of Origin:
China



Specs

Power Description
Load Capacity3000 VA/2250 W
Surge Energy Rating480 J
Input Voltage120 V AC
Circuit BreakerYes
Output Voltage120 V AC
Waveform TypePulse-width Modulated Sine Wave
Physical Characteristics
Form FactorTower
Weight (Approximate)59 lb
Product ColorGray
Height14.3"
Width9.3"
Depth12"
Warranty
Limited Warranty2 Year
Controls/Indicators
Status Indicators<ul><li>Battery Charge Level</li><li>AC Line Power</li><li>Voltage Regulation</li><li>UPS Load Level</li><li>Low Battery / Replace Battery</li></ul>
Interfaces/Ports
Total Number of Expansion Slots1
USBYes
Serial PortYes
Battery Information
Backup/Run Time (Full Load)4 Minute
Battery Life6 Year
Battery ChemistryLead Acid
Hot SwappableYes
Backup/Run Time (Half Load)14 Minute
Typical Battery Recharge Time4 Hour
Battery CharacteristicsMaintenance-free
General Information
Brand NameTripp Lite
Manufacturer Website Addresshttp://www.tripplite.com
Marketing InformationTripp Lite's SMART 3000VS intelligent, line interactive UPS with expandable runtime protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches. Large capacity 3000 VA/2250 watt rated UPS system offers 4 minutes runtime at full load and 14 minutes at half load during power failures. Runtime is expandable with optional external battery packs. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 10 outlets, 3 of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes slot for Network Management Card option. Also includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.
Product TypeLine-interactive UPS
Product NameSmartPro VS Expandable Tower 3000VA UPS
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberSMART3000VS
Product SeriesVS
Product LineSmartPro
Technical Information
Receptacle Type
Receptacle Detail
Plug/Connector TypeNEMA L5-30P
Cord Length8 ft
Emergency Power OFFYes
Transfer Time4 ms
Management
Network ManagementSNMP Manageable
Alarm
Environmental Conditions
Maximum Operating Temperature122&deg;F (50&deg;C)
