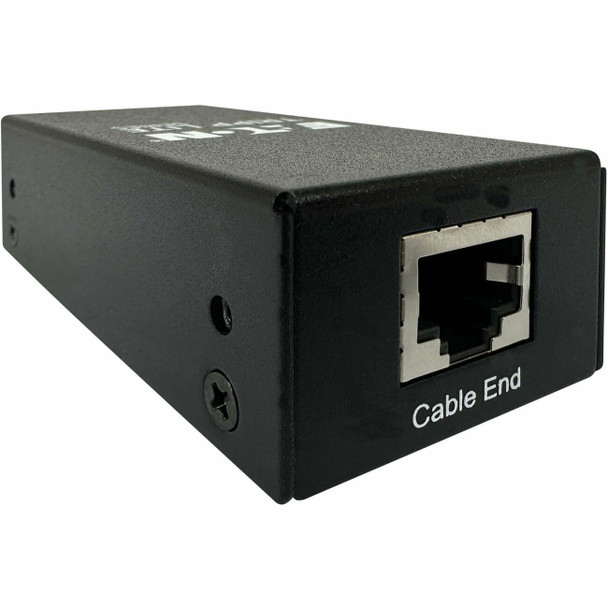

Tripplite B110SPPOEC10 In-Line PoE++ Surge Protector 10Gbps

This item is brand-new, factory sealed.

Features | DIN-Rail Mountable In-Line Surge Protector Keeps Your 10G Ethernet Equipment Safe

The B110-SP-POEC-10 protects high-power PoE++ devices from damage caused by electrostatic discharge (ESD), power surges and cable discharge events. Ideal for industrial AV, smart building infrastructure and automation environments, it supports 10 Gbps throughput and IEEE 802.3bt Type 4 power delivery over Cat5e/6/6a cabling for AV-over-IP and high-bandwidth networks. Just install it between your Ethernet source and PoE device using Cat5e/6/6a cables and ground it with the included wire.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices

This surge protector supports a variety of PoE standards, including IEEE 802.3af (15W), 802.3at (30W) and 802.3bt Type 4 (100W). It supplies power to compatible PoE devices, such as outdoor IP cameras, wireless access points (WAP) on ceilings or rooftops, and digital signage equipment. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. The surge protector is DIN-rail mountable for installation in tight enclosures or structured cabling environments.

Your Last Defense Against Intruding Voltage Spikes

Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Gas discharge modules on all four twisted pairs protect each wire from surges or spikes by dissipating the voltage transient through a contained plasma gas. The B110-SP-POEC-10 meets the following IEC regulations: IEC 61000-4-2 (8K/15kV), IEC 61000-4-5 2kA (8/20µs), 6kV (8/20µs) and IEC 61000-4-4 (2kV).

Ready to Use Right from the Package, So You Can Plug and Play Immediately

This in-line surge protector supports data transmission speeds up to 10 Gbps without signal degradation. No software, drivers or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur.

TAA-Compliant for GSA Schedule Purchases

The B110-SP-POEC-10 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• B110-SP-POEC-10 In-Line PoE Surge Protector
• Grounding Wire, 1 ft.
• Grounding Wire Screw
• DIN-rail Clip
• 2 x Surface-mounting Brackets
• 2 x Mounting Screws
• 2 x Screw Snchors
• Installation instructions
