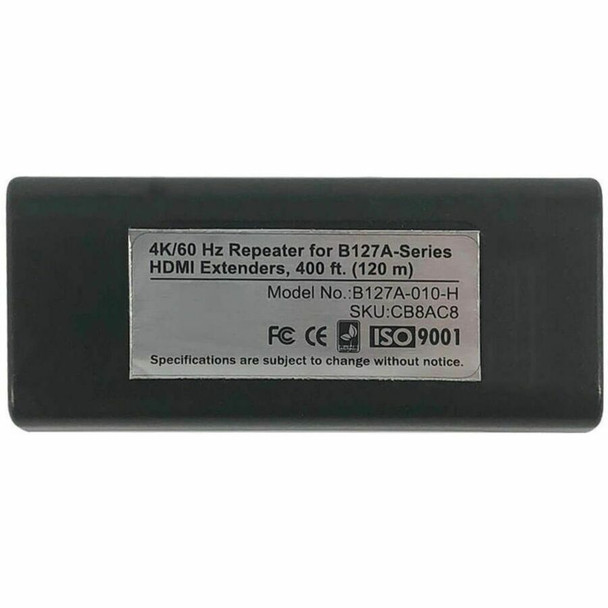

Eaton Tripp Lite Series Signal Repeater for B127A Extenders, Over Cat6, 4K 60Hz, HDR, 4:4:4, PoC, HDCP 2.2, 400 ft., TAA (b127a-010-h)

This item is brand-new, factory sealed.

• HDMI REPEATER IDEAL FOR EXTENDING 4K DIGITAL SIGNAGE VIDEO: This remote repeater is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127A-010-H connects between a transmitter and transceiver to extend 4K signals up to 400-ft. (120 m) via user-supplied Cat6 cabling.
• BOOSTS SIGNAL DISTANCE IN A DAISY-CHAIN INSTALLATION: This signal booster joins Tripp Lites B127A-111-BHTH extender kit and B127A-110-BH transceivers to create daisy chains. Insert the B127A-010-H between the transmitter and the first transceiver in the chain to extend the first link up to 400-ft. (120 m). When the booster is used with the maximum four transceivers, the installation can reach 1,090-ft. (332 m) from the transmitter to the last transceiver in the chain. Note: B127A-010-H will only work when used in the first link of the daisy-chain installation.
• WORKS WITH ALL TRIPP LITE B127A-SERIES MODELS: The B127A-010-H boosts the 4K audio/video signals in any application using a B127A model, including HDMI, DisplayPort and USB-C applications. When used with HDMI models, it supports 3840 x 2160 (4K x 2K) resolutions at 60 Hz, as specified by HDMI 2.0, with 4:4:4 chroma subsampling. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K and Netflix content with no complications. When used with DisplayPort or USB-C models, it supports 3840 x 2160 at 60 Hz, DisplayPort 1.2 and 4:4:4 color.
• BUILT-IN POC TECHNOLOGY PROVIDES TRANSCEIVER POWER TO AVOID BULKY EXTERNAL POWER BRICKS: Power over Cable (PoC) technology powers the repeater over Cat6 cable. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the repeater where needed without worrying about finding a nearby AC outlet.

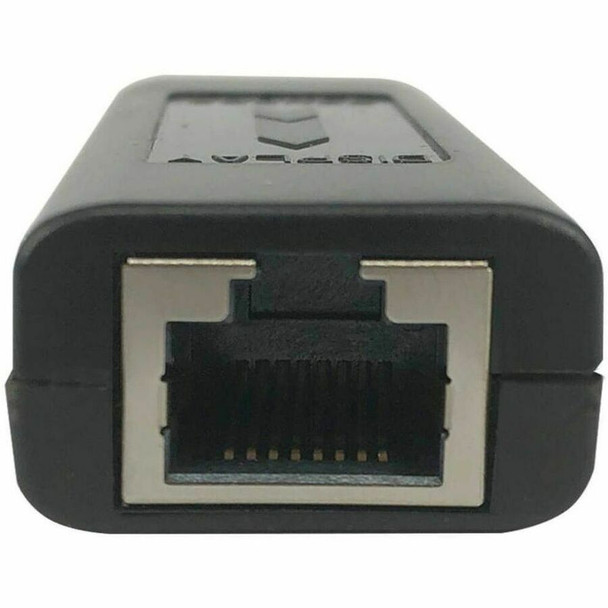

• PLUG AND PLAY OPERATION FOR QUICK SETUP/USE: The repeater works right out of the box with no software or external power required. Use Cat6 patch cable (such as Tripp Lites N202-Series) to connect its RJ45 ports to both the transmitter and transceiver.

• Package Dimensions: 7.87 x 5.59 x 1.73 inches
• Item Weight: 5.59 pounds

HDMI Repeater Ideal for Extending 4K Digital Signage Video in Schools and Restaurants This remote repeater is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127A-010-H connects between a transmitter and transceiver to extend 4K signals up to 400-ft. (120 m) via user-supplied Cat6 cabling. Boosts Signal Distance in a Daisy-Chain Installation This signal booster joins Tripp Lites B127A-111-BHTH extender kit and B127A-110-BH transceivers to create daisy chains. Insert the B127A-010-H between the transmitter and the first transceiver in the chain to extend the first link up to 400-ft. (120 m). When the booster is used with the maximum four transceivers, the installation can reach 1,090-ft. (332 m) from the transmitter to the last transceiver in the chain. Note : B127A-010-H will only work when used in the first link of the daisy-chain installation. Works with All Tripp Lite B127A-Series Models The B127A-010-H boosts the 4K audio/video signals in any application using a B127A model, including HDMI, DisplayPort and USB-C applications. When used with HDMI models, it supports 3840 x 2160 (4K x 2K) resolutions at 60 Hz, as specified by HDMI 2.0, with 4:4:4 chroma subsampling. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K and Netflix content with no complications. When used with DisplayPort or USB-C models, it supports 3840 x 2160 at 60 Hz, DisplayPort 1.2 and 4:4:4 color. Built-In PoC Technology Provides Transceiver Power to Avoid Bulky External Power Bricks Power over Cable (PoC) technology powers the repeater over Cat6 cable. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the repeater where needed without worrying about finding a nearby AC outlet. Plug-and-Play Operation for Quick Setup and Immediate Use The repeater works right out of the box with no software or external power required. Use Cat6 patch cable (such as Tripp Lites N202-Series) to connect its RJ45 ports to both the transmitter and transceiver. TAA-Compliant for GSA Schedule Purchases The B127A-010-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• B127A-010-H HDMI Repeater
• Owner's Manual
