Tripp Lite DVI Over Cat5/Cat6 Video Extender Kit Transmitter Receiver 200' (B140-101X)
- SKU:
- 18139972
- MPN:
- b140-101x
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/26/2025 04:39:58 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 4 or above | and pay only $237.68 each 237.68 |
- Stock Update:
- 12/26/2025 04:39:58 PM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's B140-101X DVI over Cat5 Active Extender Wallplate Kit is the perfect solution for those who need to extend a DVI-D Single-Link signal up to 200 ft. from the source. When using 24Awg, solid wire Cat5e/6 cabling (Tripp Lite N202-Series), the B140-101X can extend a 1024 x 768 (60Hz) signal up to 200 ft., or a 1920 x 1080 (60Hz) up to 150 ft.. Installation is quick and easy: Simply attach the local unit to your DVI source, attach the remote unit to your display, and then connect a Cat5e/6 patch cable between the two. If necessary, use the built-in Equalization setting on the remote unit to adjust the video image. Mounting hardware is included that allows the remote unit to be wallmounted, rackmounted or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.
Package Contents:
- B140-101X TAA/GSA Compliant Video Console/Extender
- Screwdriver
- Remote Unit Mounting Hardware
- External Power Supply
- Owner's Manual
Features
- B140-101X Local Transmitter Unit

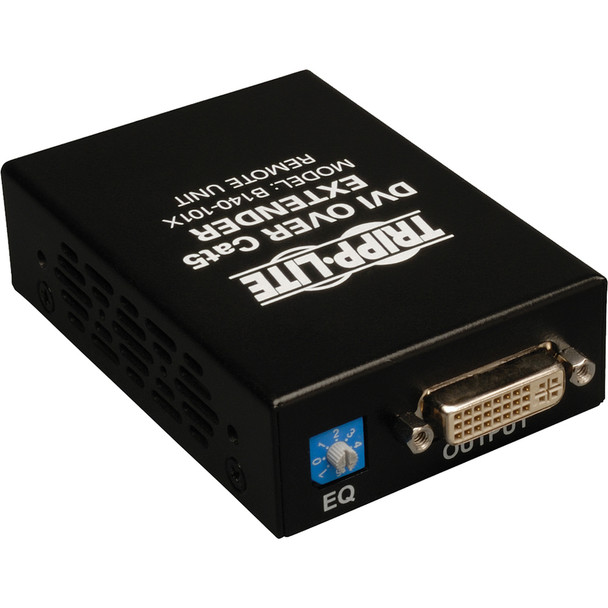

- B140-101X Remote Receiver Unit
- Screwdriver (used for Equalization control)
- Mounting Hardware for Receiver Unit
- External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
- Owner's Manual
Certifications & Standards:
TAA
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Product Color | Black |
| Color Family | Black |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of DVI Inputs | 1 |
| Number of DVI Outputs | 1 |
| DVI In | Yes |
| DVI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Graphics Modes | Full HD |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft.. Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft.. More from the Manufacturer |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | DVI over Cat5 Active Extender Kit |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B140-101X |
| Product Model | B140-101X |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 200 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
