Tripplite

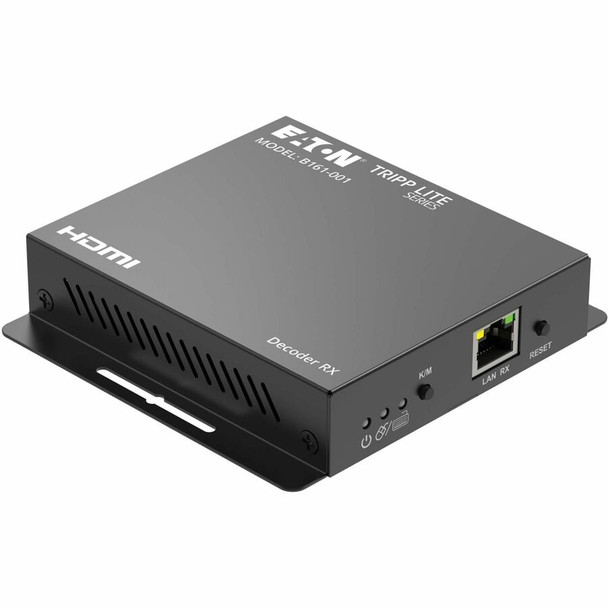

Tripp Lite series HDMI over IP Decoder with KVM - 4K, TCP/IP, Up to 393 ft. [120 m] (b161-001)
- SKU:
- 21515565
- MPN:
- b161-001
- Availability:
- Usually ships the same or next business day. In stock at our NJ warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/01/2026 04:44:50 PM PST
- Stock Update:
- 07/01/2026 04:44:50 PM PST
Description
This item is brand-new, factory sealed.
An Effective Digital Signage Solution Designed for Easy Setup and Operation
This HDMI over IP decoder delivers visually lossless 4K signals with low latency up to 393 feet (120 meters) point to point or via a standard Gigabit Ethernet switch. Engineered to meet today's demands of large-scale, multi-display 4K signal transmission, the B161-001 is ideal for a wide range of indoor environments, such as trade shows, airports, university campuses, conference centers and shopping centers. The decoder follows TCP/IP standards for reliable AV over IP installations.
Lightweight Compression with Ultra-Low Latency
The decoder uses advanced video lossless compression technology to extend 4K video at 30 Hz with 3.4 Gbps/340 mHz per channel (10.2 Gbps all channels), 3D video support and 12-bit per channel color depth.
Limitless Scalability and Flexibility
Mix and match the latest 4K displays in simple point-to-point setups or more elaborate point-to-multipoint setups via LAN (local area network) without distance limitations. Simply connect a B161-101 encoder/decoder kit (sold separately) to a standard network switch and additional B161-001 decoder units to the ports on the switch using Cat6 cabling. This product offers multi-functionality in video wall and daisy-chain applications.
Configure Video Installations with a Keyboard and Mouse
Connect the USB-A port on the encoder unit of a B161-101 kit (sold separately) to a computer and connect a keyboard and mouse to the KVM ports on the B161-101 receiver to control the video installation from the display side.
Extend Multiple B161-Series Decoders
Connect multiple B161-001 decoder units (sold separately) through a dedicated Ethernet network switch. Cabling and system deployment is easy with fewer cables needed. The daisy-chain function is especially ideal for large-scale deployment covering a wide area, such as hotels, airports, shopping malls and expo centers.
Package Contents:
- Decoder (Receiver)
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.2A; Output: 5V 1A)
- 4x International Plug Adapters: NEMA 1-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (UK) and AS/NZS 3112 (Australia)
- USB-A Cable
- Installation Instructions
Features
- Decoder (Receiver)
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.2A; Output: 5V 1A)
- 4x International Plug Adapters: NEMA 1-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (UK) and AS/NZS 3112 (Australia)
- USB-A Cable
- Installation Instructions
Application/Usage:
Display
Mouse
Keyboard
Trade Show
Airport
Conference Room
Educational Facilities
Shopping Center
A/V Equipment
Hotel Room
Blu-ray Player
Notebook
HDTV
Projector
Monitor
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Power Description | |
| Power Plug Type | CEE 7/16 Europlug |
| Physical Characteristics | |
| Receiver Width | 5.01" |
| Receiver Height | 6.70" |
| Product Color | Black |
| Receiver Depth | 1.14" |
| Receiver Weight (Approximate) | 1.48 lb |
| Color Family | Black |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Supported Video Modes |
|
| Graphics Modes | 4K |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | An Effective Digital Signage Solution Designed for Easy Setup and Operation This HDMI over IP decoder delivers visually lossless 4K signals with low latency up to 393 feet (120 meters) point to point or via a standard Gigabit Ethernet switch. Engineered to meet today's demands of large-scale, multi-display 4K signal transmission, the B161-001 is ideal for a wide range of indoor environments, such as trade shows, airports, university campuses, conference centers and shopping centers. The decoder follows TCP/IP standards for reliable AV over IP installations. Lightweight Compression with Ultra-Low Latency The decoder uses advanced video lossless compression technology to extend 4K video at 30 Hz with 3.4 Gbps/340 mHz per channel (10.2 Gbps all channels), 3D video support and 12-bit per channel color depth. Limitless Scalability and Flexibility Mix and match the latest 4K displays in simple point-to-point setups or more elaborate point-to-multipoint setups via LAN (local area network) without distance limitations. Simply connect a B161-101 encoder/decoder kit (sold separately) to a standard network switch and additional B161-001 decoder units to the ports on the switch using Cat6 cabling. This product offers multi-functionality in video wall and daisy-chain applications. Configure Video Installations with a Keyboard and Mouse Connect the USB-A port on the encoder unit of a B161-101 kit (sold separately) to a computer and connect a keyboard and mouse to the KVM ports on the B161-101 receiver to control the video installation from the display side. Extend Multiple B161-Series Decoders Connect multiple B161-001 decoder units (sold separately) through a dedicated Ethernet network switch. Cabling and system deployment is easy with fewer cables needed. The daisy-chain function is especially ideal for large-scale deployment covering a wide area, such as hotels, airports, shopping malls and expo centers. |
| Product Type | Video Extender Receiver |
| Product Name | HDMI over IP Decoder with KVM - 4K, TCP/IP, Up to 393 ft. (120 m) |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B161-001 |
| Product Model | B161-001 |
| Media & Performance | |
| Twisted Pair Cable Standard |
|
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 393.70 ft |
| Data Link Protocols | TCP/IP |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
