Tripp Lite 12 Outlet Isobar Ultra Surge 15-20Amp 15' Cord 3840 Joules 1URM (IBAR12-20ULTRA)
- SKU:
- 18159634
- MPN:
- ibar12-20ultra
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/25/2024 12:12:33 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $171.36 each 171.36 |
| Buy 4 or above | and pay only $164.83 each 164.83 |
- Stock Update:
- 04/25/2024 12:12:33 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.PLUG/OUTLETS: Input: NEMA L5-20P (twist lock)/Output: 2 NEMA5-15R (front) & 10 NEMA5-20R (rear)ELECTRICAL: 120V AC, 50/60Hz, 20A (Requires NEMA L5-20R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/1280 joules/60,000 ampsFORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

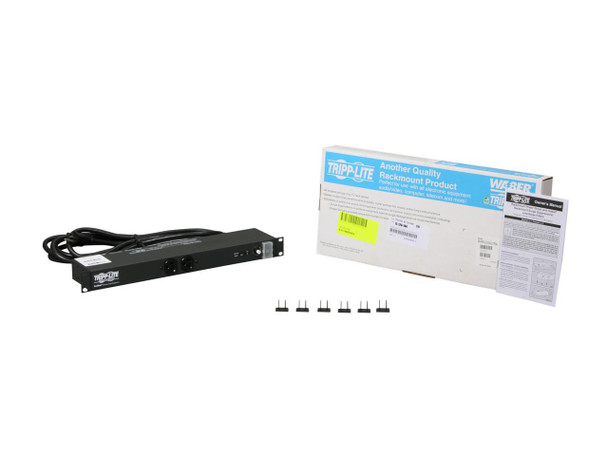

Package Contents:
Features
- IBAR12/20ULTRA
- IBAR12/20ULTRA Surge Suppressor
- Warranty information
- Instruction manual
Certifications & Standards:
UL1449 (UR status), UL1283, cUL, Exceeds IEEE 587 category A&B specifications
Additional Information:
- Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
- Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
- 3840 joules / 60,000 amp network-grade AC surge suppression with EMI/RFI filtering
- 12 output receptacles outlets (2 front mounted NEMA 5-15R / 10 rear mounted NEMA 5-20R)
- 15 foot AC cord with NEMA 5-20P straight-in plug connection
- Diagnostic LEDs confirm proper wiring and suppressor operation
- Front panel power switch with snap-in cover prevents accidental turn off
- 20 amp electrical capacity with circuit breaker
- 120VAC, 50/60Hz electrical compatibility
- $25,000 Ultimate Lifetime Insurance (USA & Canada Only)
- Lifetime product warranty
Compatibility:
TYPICAL APPLICATIONS: Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more
Country of Origin:
China
Specs
| Power Description | |
| Surge Energy Rating | 3840 J |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 20 A |
| Physical Characteristics | |
| Power Cord/Cable Length | 15 ft |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 4" |
| Warranty | |
| Limited Warranty | Lifetime |
| Controls/Indicators | |
| Status Indicators | <li>Line fault</li> <li>Line OK</li> <li>Protection present</li> |
| General Information | |
| Brand Name | Tripp Lite by Eaton |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Marketing Information | Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with $25,000 ultimate lifetime Insurance (USA & Canada Only) coverage . |
| Product Type | Surge Suppressor/Protector |
| Product Name | IBAR12/20ULTRA |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | IBAR12-20ULTRA |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20R |
| Receptacles | 12 x NEMA 5-20R |
| Protection Type | Surge |
