Tripp Lite NGI-M08C4POE8-2 Ethernet Switch

This item is brand-new, factory sealed.

Tripp Lite Industrial 8-Port Managed PoE+ Gigabit Ethernet Switch, 4 SFP GbE Slots, 10/100/1000 Megabit RJ45 Ports, 30W Power over Ethernet, -40 to 167F Temp Range, 3-Year Warranty (NGI-M08C4POE8-2)

• 8-PORT MANAGED GIGABIT ETHERNET SWITCH: Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a copper Ethernet cable. Features four GbE SFP slots for optical fiber or copper. Supports browser-based operation and works independently from the connected computer's operating system. Preferred browsers include Google Chrome (Windows & macOS) and Microsoft Edge (Windows only).
• MONITORS AND CONTROLS DEVICES: Pre-Loaded with Standard Layer 2 Network supports IGMP snooping in IPv4. MAC address auto-learning and auto-aging for efficient routing, and automatic MDI/MDI-X crossover detection for plug-and-play functionality. Also supports QoS, IGMP snooping, SFP DDMI and other device management features. IEEE 802.3x flow control allows transmission of large files.

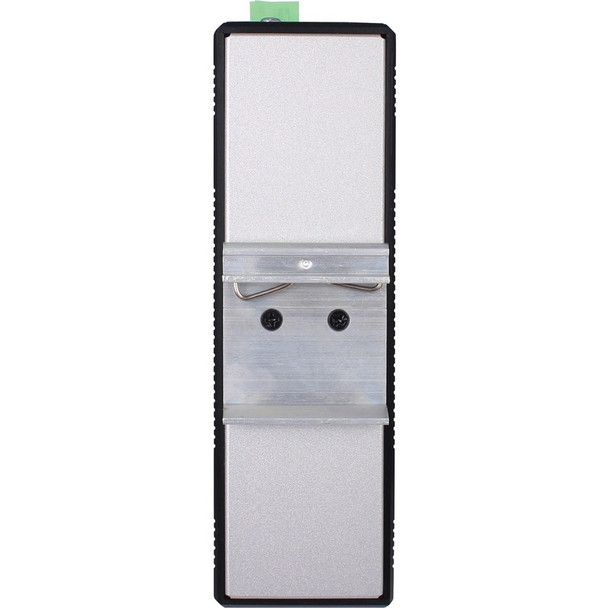

• INDUSTRIAL METAL HOUSING: IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 Celsius (-40 to 167 F). Includes pre-installed DIN mounted rail clip.
• TAA-COMPLIANT FOR GOVERNMENT PURCHASES: Compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
• RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a 3-Year Limited Warranty and is supported by Tripp Lite's Chicago-based expert technical support team over phone and email.

• Package Dimensions: 9.17 x 7.2 x 2.44 inches
• Item Weight: 2.62 pounds

8-PORT MANAGED GIGABIT ETHERNET SWITCH CONNECTS YOUR NETWORK DEVICES TO A LAN: This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M08C4POE8-2 also features four GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. POE+ PORTS DELIVER POWER TO DEVICES WITHOUT ACCESS TO AC OUTLETS: This managed switch features eight PoE ports capable of powering compatible PoE devices, such as VoIP phones and IP surveillance cameras, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-M08C4POE8-2 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your demand for high-power network devices. PROTECTIVE METAL HOUSING BUILT TO LAST IN HARSH ENVIRONMENTS: The compact NGI-M08C4POE8-2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining, power/utility, security, mining, factory and warehouse applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). MONITORS AND CONTROLS DEVICES VIA CLI AND WEB CONFIGURATION: The NGI-M08C4POE8-2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. The switch automatically shifts unused ports to an energy-saving state without interrupting network connection. PRE-LOADED WITH STANDARD LAYER 2 NETWORK MANAGEMENT SOFTWARE: This switch supports IGMP snooping in IPv4 to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is forwarded only to those interfaces associated with IP multicast devices. WORKS WITH THE MOST POPULAR WEB BROWSERS: The NGI-M08C4POE8-2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-M08C4POE8-2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only). PRE-INSTALLED DIN RAIL CLIP ALLOWS FOR CONVENIENT INSTALLATION: The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24-57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. TAA-COMPLIANT FOR GSA SCHEDULE PURCHASES: The NGI-M08C4POE8-2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Contents:

• NGI-M08C4POE8-2 Ethernet Switch
• DIN Rail-mounting Clip (Pre-installed)
