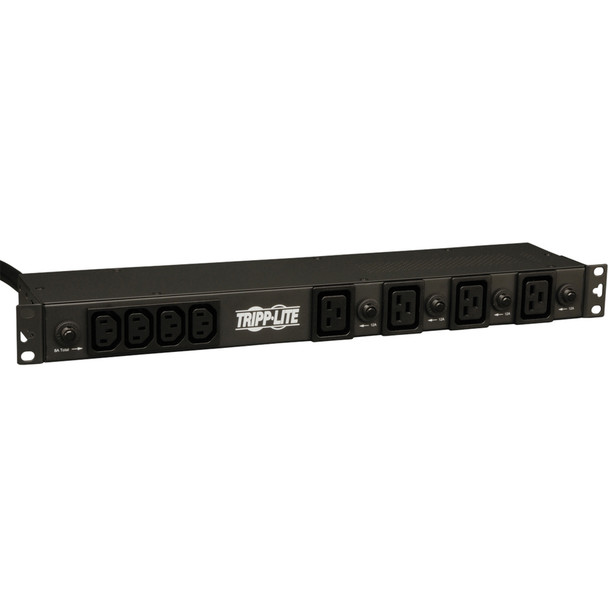

Tripp Lite PDU Basic 208V / 240V 30A 20 Outlet 15 ft Cord (PDU1230)
- SKU:
- 18141637
- MPN:
- pdu1230
- Availability:
- Usually ships the same or next business day. In stock at our CA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/23/2024 12:18:48 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
Buy 3 or above | and pay only $231.42 each 231.42 |
- Stock Update:
- 04/23/2024 12:18:48 AM PST
Description
This item is brand-new, factory sealed.
MODEL- PDU1230 VENDOR- TRIPPLITE FEATURES- Power Distribution Unit (PDU) 1U rackmount, 0U vertical rackmount, wallmount or under-counter Power Distribution Unit, 208/240v AC. Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 18 total output receptacles. Features 2 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under- counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 6 front-facing and 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass- through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes grounding lug and rugged all-metal case design. * Corded AC power distribution unit with L6-30P input plug, 2 C19 outlets, 4 C13 outlets (front) and 12 C13 outlets (rear). * Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19-inch rackmount mounting in both 1U or 0U formats. * Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure. * Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment. * Attractive all-metal housing measures only 4.5 inches in depth * Switch-free design prevents the potential for accidental shutoff of connected loads. * 6 built-in circuit breakers: 2 15A breakers cover 2 C19 outlets; 4 10A breakers cover remaining C13 outlets in banks of 4. * 208V AC, 30A, 50/60Hz electrical compatibility -- SPECIFICATIONs ------------------------------------ OUTPUT - Nominal Voltage : 208/240V AC Outlets : (18) 2 IEC-C19, 4 IEC-C13 (front) 12 IEC-C13 (rear) Overload protection: Via 4 built-in 10A & 2 built-in 15A input circuit breakers. INPUT - Input amps : 30A maximum input current per phase Connection type : NEMA L6-30P (200-250V, 30A) Cord length : 15 ft. Recommended electrical service: 208V 30A line source MATERIAL - Sheet metal FORM FACTOR - 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported. TVSS GROUNDING- Via Back panel grounding lug APPROVALS - Tested to UL60950-1 (USA), CSA-C22.2 (Canada) DIMENSIONS - 17.5"w x 1.75"h x 4.5"d WT.- 5.2 lbs. www.tripplite.comPackage Contents:
- PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
- Instruction Manual with Warranty Information
Features
Package Contents:
Yes
China
- PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
- Instruction Manual with Warranty Information
Additional Information:
Output Receptacles:
- 4 x C19
- 16 x C13
Environmentally Friendly:
Yes
Country of Origin:
China
Specs
Power Description | |
Power Rating (VA) | 4990 VA |
Input Voltage Range | 208 V AC - 240 V AC |
Input Voltage | 230 V AC |
Output Voltage |
|
Physical Characteristics | |
Weight (Approximate) | 7.50 lb |
Mount Type | Rack-mountable |
Height | 1.8" |
Mounting Orientation | Vertical |
Width | 17.5" |
Rack Height | 1U |
Depth | 5.2" |
Warranty | |
Limited Warranty | 5 Year |
General Information | |
Brand Name | Tripp Lite by Eaton |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Marketing Information | Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures. More from the Manufacturer |
Product Type | PDU |
Product Name | PDU1230 PDU Basic 208V / 240V 30A 20 Outlet |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | PDU1230 |
Product Model | PDU1230 |
Technical Information | |
Receptacle Detail | 20 |
Plug/Connector Type | NEMA L6-30P |
PDU Type | Basic |
