Tripplite
Tripp Lite PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P Horizontal 1URM (PDUMH20)
(No reviews yet)
Write a Review
- SKU:
- 18060360
- MPN:
- pdumh20
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/30/2024 09:21:51 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $157.11 each 157.11 |
| Buy 4 or above | and pay only $150.89 each 150.89 |
- Stock Update:
- 04/30/2024 09:21:51 AM PST
Description
This item is brand-new, factory sealed.

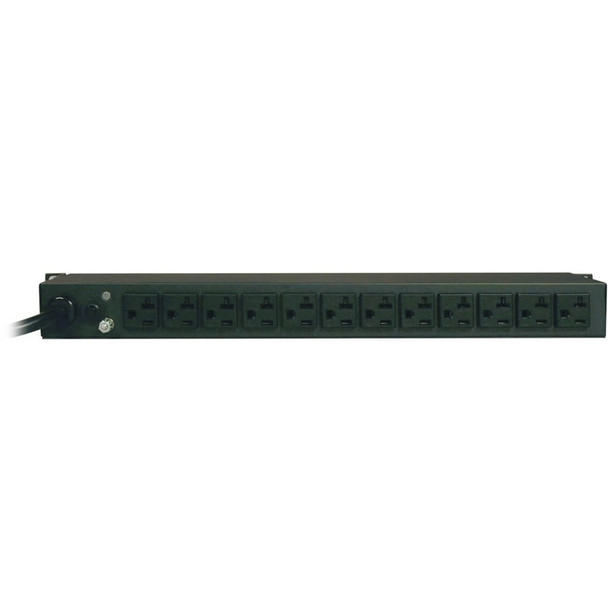

Tripp Lite's PDUMH20 AC power distribution unit offers a digital current monitor and provides 20 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-20P input plug. Comes with 6-inch L5-20P-to-5-20P adapter, 20 amp breaker, TVSS grounding lug, and rugged all-metal rackmount case design. OVERVIEWModel Type :Metered
PDU Type :Metered
OUTPUT
Frequency compatibility :50 / 60 Hz
Output nominal voltage :120V
Overload protection :20A
Outlet quantity / type :12 NEMA 5-15/20R INPUT
PDU Input Voltage :100 120 127
Recommended Electrical Service :120V
Maximum Input Amps (A) :20
Input connection type :NEMA L5-20P with NEMA 5-20P plug adapter
Plug Type :NEMA L5-20P (20A 120V)
PDU Plug Type :NEMA 5-20P NEMA L5-20P
Input cord length (ft.) :15
Voltage compatibility (VAC) :120
Phase :Single-Phase LEDS ALARMS and SWITCHES
Front panel LEDs :Digital LED current meter
PHYSICAL
Material of construction :Sheet Metal
Style :Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form factors supported :1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
PDU Form Factor :Horizontal (1U, 2U, etc) SPECIAL FEATURES
Appearance :All black color scheme
TVSS grounding :Rear grounding lug
CERTIFICATIONS
Certifications :Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS CompliantItem Dimension (L"xW"xH"):
10 x 20.5 x 2.25
Weight:
3.60 lb
Warranty Information
Lifetime
Features
Package Contents:
Yes
China
- PDUMH20 PDU Metered 120V 20A 12 Outlet
- PDUMH20 Metered rackmount PDU
- Owner's manual with warranty information
Environmentally Friendly:
Yes
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 3 lb |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Mounting Orientation | Vertical |
| Width | 17.5" |
| Rack Height | 1U |
| Depth | 4.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite by Eaton |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Marketing Information | Tripp Lite's PDUMH20 AC power distribution unit offers a digital current monitor and provides 20 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-20P input plug. Comes wih 6-inch L5-20P-to-5-20P adapter, 20 amp breaker, TVSS grounding lug, and rugged all-metal rackmount case design. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMH20 PDU Metered 120V 20A 12 Outlet |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMH20 |
| Product Model | PDUMH20 |
| Technical Information | |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 12 x NEMA 5-15/20R |
| Plug/Connector Type | NEMA L5-20P |
| Protection Type | Overload Protection |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Tripp Lite PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P Horizontal 1URM (PDUMH20)
$161.85
