Tripp Lite PDU Metered 8 C13 2 C19 3.2/3.8kW 208/240V L6-20P 6ft Cord 1URM (pdumh20hvl66)
- SKU:
- 18201976
- MPN:
- pdumh20hvl66
- Availability:
- Usually ships the same or next business day. In stock at our MS warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/25/2024 05:27:13 AM PST
- Stock Update:
- 04/25/2024 05:27:13 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite PDU Metered 8 C13 2 C19 3.2/3.8kW 208/240V L6-20P 6ft Cord 1URM (PDUMH20HVL66)- SINGLE-PHASE PDU DISTRIBUTES AND MONITORS NETWORK-GRADE POWER IN REAL-TIME: This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/240V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
- DIGITAL LOAD METER HELPS PREVENT POTENTIALLY EXPENSIVE OVERLOADS: A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
- VERSATILE INSTALLATION OPTIONS GIVE YOU PLENTY OF CHOICES: The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution.
- TAA COMPLIANT FOR GSA SCHEDULE PURCHASES: Compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Product Dimensions: 6.5 x 17.5 x 1.8 inches
- Item Weight: 5.19 pounds
Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/240V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Digital Load Meter Helps Prevent Potentially Expensive Overloads A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. Versatile Installation Options Give You Plenty of Choices The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution. TAA-Compliant for GSA Schedule Purchases The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

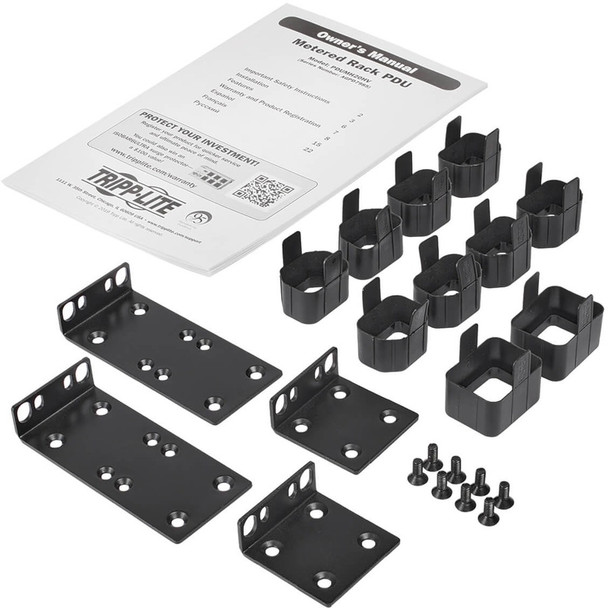

Package Contents:
- PDUMH20HVL66 10-Outlets PDU
- 10 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Owner's Manual
Features
- PDUMH20HVL66 10-Outlets PDU
- 10 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Owner's Manual
Certifications & Standards:
STANDARDS & COMPLIANCE
- Certifications: Tested to UL 60950-1 (USA); Tested to CSA (Canada), RoHS compliant, TAA compliant
- Certification Details: Series Number (s) AGPD7985; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed); Safety Standards (U.S.) UL60950-1:2007 (2nd Ed); FCC/ICES Compliant CLASS A; 47 CFR FCC PART 15 SUBPART B; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009; NOM; RETIE EMI/EMC Standards Class A; EN55022:2010+AC:2011; EN55024:2010
TAA Compliant:
Yes
Additional Information:
USER INTERFACE, ALERTS & CONTROLS

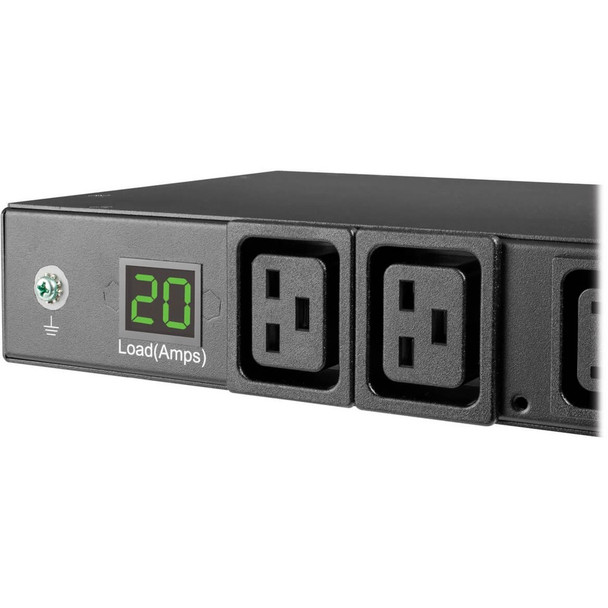

- Front Panel LCD Display: Digital display reports total PDU output current in amps
- Switches: n/a
- Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
- Relative Humidity: 5-95% non-condensing
SPECIAL FEATURES
- TVSS Grounding: Rear grounding lug
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (Watt) | 3800 W |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Input Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 6.80 lb |
| Cord Length | 6 ft |
| Placement | Under-counter |
| Mount Type |
|
| Height | 1.8" |
| Mounting Orientation | Horizontal/Vertical |
| Width | 17.5" |
| Rack Height | 1U |
| Depth | 6.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite by Eaton |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Marketing Information | Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Digital Load Meter Helps Prevent Potentially Expensive Overloads A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. Versatile Installation Options Give You Plenty of Choices The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution. TAA-Compliant for GSA Schedule Purchases The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product Type | PDU |
| Product Name | PDUMH20HVL66 10-Outlets PDU |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMH20HVL66 |
| Product Model | PDUMH20HVL66 |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-20P |
| PDU Type | Metered |
| Protection Type |
|
Warranty Information
