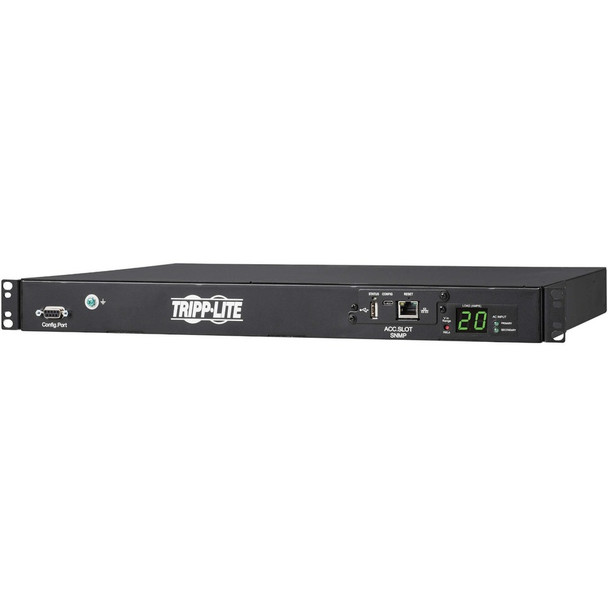

Tripp Lite PDU ATS/Metered 200-240V 8 C13 2 C19 Dual C20 Network Card 1URM (PDUMNH20HVAT1)

This item is brand-new, factory sealed.

Tripp Lite Metered PDU, Auto-Transfer Switch (ATS), Network Card WEBCARDLX, 20A, 200-240V, 3.8kW - 8 C13 Outlets & 2 C19 Outlets, Dual C20 12ft Input Cords - 1U RM, 2 Year Warranty (PDUMNH20HVAT1)

• ATS PDU allows real-time current metering and remote power monitoring to help prevent circuit overloads and ensure proper load balance. Eight C13 and two C19 200240V outlets distribute AC power to connected equipment.
• Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 27 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption.
• Includes WEBCARDLX with latest version of PowerAlert Device Manager (PADM20) for enhanced remote management. PADM20 provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences.
• Compliant with the Federal Trade Agreements Act (TAA) for GSA (General Services Administration) Schedule purchases and other federal procurement contracts.
• 2-year limited warranty

• Product Dimensions: 14.8 x 17.3 x 1.7 inches
• Item Weight: 10.3 pounds

SINGLE-PHASE 20A ATS PDU DISTRIBUTES AND MONITORS NETWORK-GRADE POWER IN REAL TIME: This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH20HVAT1 features eight C13 and two C19 200-240V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources. SWITCHES FROM PRIMARY TO SECONDARY POWER SOURCE IN MILLISECONDS: Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source. PRE-INSTALLED WEBCARDLX NETWORK INTERFACE OFFERS 24/7 REMOTE ACCESS FOR MONITORING AND CONTROL: The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. DIGITAL LOAD METER HELPS PREVENT POTENTIALLY EXPENSIVE OVERLOADS: A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. MOUNTS INTO 1U OF RACK SPACE: Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. TAA-COMPLIANT FOR GSA SCHEDULE PURCHASES: The PDUMNH20HVAT1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Contents:

• PDUMNH20HVAT1 10-Outlets PDU
• 2 x Detachable C19 to C20 input cords, 12 ft. (3.7 m)
• Configuration Cable
• 10 x Plug-Lock Insert Sleeves
• Rack-mounting Hardware
• Owner's Manual
