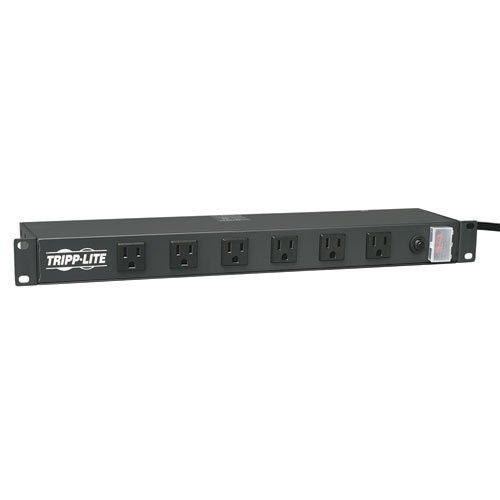

Tripp Lite Power Strip Rackmount Metal 120V 5-15R Right Angle 12 Outlet 1U (RS-1215-RA)

This item is brand-new, factory sealed.

Tripp Lite's RS-1215-RA Power Strip offers 15A capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19-in. rack meeting EIA standards. Unfiltered electrical pass-through makes RS-1215-RA ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Features 12 NEMA5-15R outlets (6 front/6 rear) placed at a right angle (with ground pin at bottom), 15-ft. AC power cord and lighted power switch with cover that prevents risk of accidental turn-off.


Features

Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options

Uses one rack space (1U) in standard 19-in. rack ("zero U" mounting possible in many racks)

Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment

12 x NEMA5-15R output receptacles (6 front/6 rear)

15-ft. AC cord with NEMA5-15P plug

Right-angle outlet orientation with ground pin at the bottom

Lighted power switch confirms power on/off status

Snap-in switch guard prevents accidental turn off

15A electrical capacity with circuit breaker

120V AC, 50/60Hz electrical compatibility OUTPUT
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (12) 5-15R
Circuit Breaker (amps): 15
Outlet Orientation: 6 front-facing / 6 rear-facing, all with ground pin oriented to the bottom (when viewed in 1U rackmount configuration)
Right-Angle Outlets: Yes INPUT
Nominal Input Voltage(s) Supported: 120V AC
Recommended Electrical Service: 15A 120V
Input Connection Type: NEMA 5-15P
Input Cord Length (m): 4.572
Voltage Compatibility (VAC): 120 USER INTERFACE, ALERTS and CONTROLS
Switches: Red illuminated - positon switch controls power to all outlets
Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff PHYSICAL
Material of Construction: Sheet metal
Receptacle Color: Black
Color (AC Line Cord): Black
Form Factors Supported: 1U rackmount, wall-mount and undercounter installation supported
Outlets Measurement (Center to Center): Distance between Front outlets 51.6mm, Distance between Rear outlets 71.1mm SPECIAL FEATURES
TVSS Grounding: Back panel nut-and-bolt grounding lug CERTIFICATIONS
UL1363 (Power Tap): UL1363 (UR status)
cUL / CSA (Canada): cULItem Dimension (L inchxW inchxH inch)
2 x 18 x 5

Weight
4.60lb

Warranty Information
Lifetime limited warranty
