Tripplite

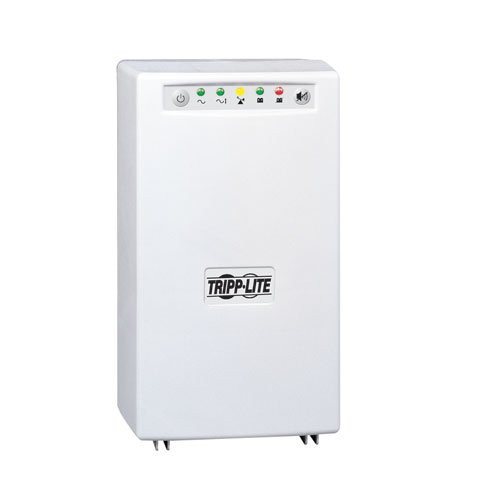

Tripp Lite UPS Smart 700VA 450W Tower AVR Hospital Medical 120V USB DB9 (SMART700HG)
(No reviews yet)
Write a Review
- SKU:
- 18061160
- MPN:
- smart700hg
- Availability:
- Out of stock
- Stock Update:
- 09/12/2023 06:24:36 AM PST
- Stock Update:
- 09/12/2023 06:24:36 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's SMART700HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended shutdown capability. UL2601-1 listed as medical electrical equipment with less than 300 microamps leakage current for the UPS and all connected equipment. Built-in isolation transformer with faraday shield removes common mode noise while maintaining full AC surge suppression in all modes. Resistant to electrostatic discharge. Includes high quality hospital-grade plug and outlets. 700VA power handling capacity supports computers, internetworking equipment and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143 back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes 4 outlets, diagnostic LEDs and built-in USB & RS-232 communications ports that work with downloadable PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.Package Contents:
- SmartPro 700HG UPS
- SMART 700HG Medical Grade UPS System
- One USB and One DB9 monitoring cable
- Warranty information
- Instruction manual
Features
Package Contents:
UL1778 (USA, Series AGSM700PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
China
- SmartPro 700HG UPS
- SMART 700HG Medical Grade UPS System
- One USB and One DB9 monitoring cable
- Warranty information
- Instruction manual
Certifications & Standards:
UL1778 (USA, Series AGSM700PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
Additional Information:
- Ideal UPS protection for applications in medical patient-care areas where UL2601-1 listed medical electrical equipment is required
- Maintains less than 300 microamps leakage current for UPS and all connected equipment
- Built-in isolation transformer with faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes
- Line-interactive voltage regulation corrects brownouts and overvoltages from 81 to 143 volts back to usable 120V output levels, without using battery power
- Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections
- Full line isolation offers a higher degree of safety and prevents operational problems in sensitive electronic equipment
- Resistant to electrostatic discharge
- Supports loads up to 700VA / 450 watts
- 42 minutes half load runtime (with 350VA load), 18 minutes full load runtime (with 700VA load)
- 4 protected hospital-grade outlets; 6-ft. cord
- RS-232 and USB monitoring ports for remote monitoring and unattended shutdown
- SNMP compatible with separate purchase SNMPWEBSOLO ethernet adapter accessory
- PowerAlert unattended shutdown software available via free download from www.tripplite.com (cabling included)
- Complete surge protection, line isolation and EMI/RFI noise filtering
- 2 year product warranty
- 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace
- Battery replacement door
- Grounding lug
Country of Origin:
China
Specs
| Power Description | |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 700 VA |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 44 lb |
| Height | 12.5" |
| Width | 7" |
| Depth | 9" |
| Warranty | |
| Limited Warranty | 2 Year |
| Controls/Indicators | |
| Status Indicators | 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 18 Minute |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 42 Minute |
| Typical Battery Recharge Time | 4 Hour |
| General Information | |
| Brand Name | Tripp Lite by Eaton |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Marketing Information | Tripp Lite's SMART700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load, or 18 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700HG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in placement. All four outlets provide both backup protection and surge protection, rated to 480 joules. The SMART700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's free downloadable PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART700HG in this type of application will void the battery warranty. For mobile applications, Tripp Lite recommends the SMART700HGL with lithium iron phosphate (LiFePo4) battery. |
| Product Type | Line-interactive UPS |
| Product Name | SmartPro 700HG UPS |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART700HG |
| Product Line | SmartPro |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft |
| Transfer Time | 4 ms |
| Management | |
| Network Management | SNMP Manageable |
| Alarm |
|
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
