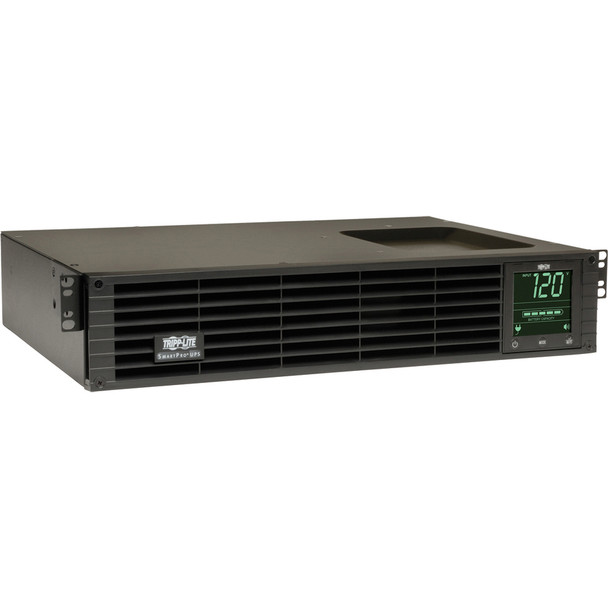

Tripp Lite UPS Smart 750VA 450W Rackmount AVR 120V Pure Sign Wave USB DB9 SNMP 2URM (SMART750RMXL2U)

Out of stock
Stock Update:
10/01/2022 01:24:04 AM PST
  • Main
  • Right
  • Rear
  • Front
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1

Out of stock

Stock Update:
10/01/2022 01:24:04 AM PST


This item is brand-new, factory sealed.

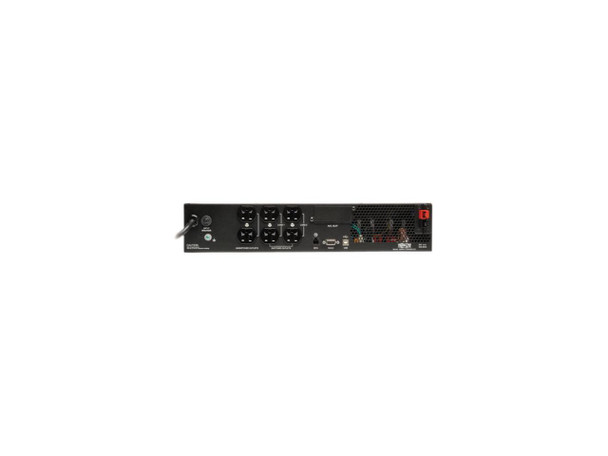

MODEL- SMART750RMXL2U VENDOR- TRIPPLITE FEATURES- SmartPro Rack/Tower UPS System- Black Intelligent, line interactive power management system! 750VA line interactive, extended-run 2U rack/tower UPS; Maintains sine-wave 120V nominal output over an input range of 83 to 147V; Network communications supported via USB port, serial port, SNMP/Web card slot and EPO interface; Current monitoring and switched PDU control via 2 two-outlet load banks; Input: NEMA 5-15P (120V 15A)/Output: 6 NEMA 5-15R (120V). Tripp Lites SMART750RMXL2U intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 34 minutes half load runtime and 16 minutes at full load. Runtime is expandable with optional BP24V28-2U and BP24V70-3U external battery packs. Maintains regulated 120V nominal output without using battery power during brownouts and overvoltages from 83 to 147V. 750VA/450 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes a total of 6 outlets arranged in 2 load banks that are individually controllable via software interface to reboot select equipment on demand or automatically shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today. Includes UPS System, PowerAlert software with USB and DB9 cables, Mounting hardware for 4 post rackmount installation, Cable for Emergency Power Off interface, Instruction manual with warranty information. * SMART750RMXL2U line interactive UPS offers voltage regulation and battery support, plus complete AC surge suppression. * Supports 2U rackmount and upright tower applications (2-9USTAND accessory sold separately). * Full time sine wave output offers guaranteed compatibility with all equipment types. * Supports a max load of 750VA for 16 minutes and a half load of 375VA for 34 minutes. * Expandable runtime with BP24V28-2U and BP24V70-3U rack/tower external battery packs. * Maintains regulated 120V nominal output 83 to 147V * 750VA/450 watt power handling capability supports a variety of sensitive electronic loads. * Includes 6 UPS supported outlets arranged in 2 individually controllable load banks. * Built in USB and DB9 serial ports support remote monitoring of UPS and site power conditions. * Built in accessory slot supports SNMP with optional SNMPWEBCARD adapter. * Emergency Power Off (EPO) interface with cable. * Multi-function audible alarms and set of 5 front panel LEDs. * Network-grade AC surge suppression * Attractive all-black color scheme * UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary. * Two year warranty with $250,000 connected equipment insurance (USA & Canada only). * Mounting hardware included for 4 post rackmount enclosures, 2 post telecom rack compatible with separate purchase 2POSTRMKITWM, compatible with upright tower installation with included hardware. -- SPECIFICATIONs ----------------------------------- OUTPUT - Volt amp capacity : 750 VA Watt capacity : 450 Watts Nominal voltage : 120V AC Voltage regulation: LINE MODE: Sine wave line voltage 120V (-21% +8%). BATTERY MODE: Sine wave output within 5% of 120VAC. Frequency regulation: LINE MODE: Passes line frequency of 60Hz +/-10%. BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz. Outlets : (6) NEMA 5-15R output receptacles Load Management : Includes 2 load banks, each with 2 outlets that support automated load shedding and remote reboot on demand of locked network devices. Configurable via PowerAlert software to automatically switch off optional loads, like monitors, to increase available runtime for servers and other critical devices. Overload Protection: Via 15A input circuit breaker INPUT - Maximum amps : 6.8 A Connection type : NEMA 5-15P Cord length : 10 ft. Recommended Service: 15A 120VAC BATTERY - Full load runtime : 16 minutes Half load runtime : 34 minutes Expandable runtime: Runtime is expandable with optional external rack/tower battery packs BP24V28-2U (limit 1) or BP24V70-3U (multi-pack compatible). DC system voltage : 24 VDC Typical lifespan : 4~6 years, depending on usage Recharge rate : 2~4 hours to 90% Connects to UPS : via DC connector Battery Access : Battery access door allows hot swap battery replacement without powering connected equipment off. VOLTAGE REGULATION- Voltage regulation: Line-interactive voltage regulation system corrects input voltages between 83 and 147 back to usable 120V nominal levels. Overvoltage correction: Input voltages between 128 and 147 are reduced by 12%. Brownout correction: Input voltages between 83 and 107 are boosted by 14%. LEDS ALARMS & SWITCHES- Front panel LEDs : 5 front panel LEDs Alarms : 3 function audible alarm indicates power failure conditions (4 short beeps every 10 seconds), overload (continuous short beeps) and low battery (continuous tone). Switches : Includes 2 front panel mounted push- button switches for system enable, self-test and alarm cancel functions. SURGE/NOISE SUPPRESSION- AC suppression : 480 joules AC suppression response time: Instantaneous EMI/RFI AC noise suppression: Yes COMMUNICATIONs - Network monitoring port: Includes 2 built-in monitoring ports, 1-USB & 1-DB9. Each supports on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment. Supports reboot of all connected devices at once via software interface. Compatible with Tripp Lites PowerAlert software. Software & cabling: Includes PowerAlert UPS monitoring software for network and standalone operating systems. Ships with complete USB and DB9 cabling. SNMP compatibility: Built-in accessory slot accommodates internal SNMPWEBCARD and other network accessories. WatchDog compatibility: Yes, compatible with Tripp Lites Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications. LINE/BATTERY TRANSFER- Transfer time line to battery mode: 2~4 milliseconds Low voltage transfer: 83V (resets to line power as line voltage increases to 87V or higher). High voltage transfer: 147V (resets to line power as line voltage decreases to 143V or lower). EPO PORT - Includes RJ11 EPO (emergency power off) port and cable. TVSS GROUNDING- Includes back panel grounding point with thumbscrew for data line surge suppressors and other network accessories requiring a safe grounding point. COLD START - Yes, inverter can be "cold started" to enable temporary AC output during a power failure. CONSTRUCTION- Steel FORM FACTOR - Supports 2U rackmount installation in 4 post rack enclosures. 2 post rackmount installation supported with optional 2POSTRMKITWM. COOLING - Built-in cooling fan APPROVALS - UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico). DIMENSIONS - 17.5"w x 3.5"h x 14.25"d WT.- 35 lbs.

Package Contents:
  • SMART750RMXL2U UPS System
  • PowerAlert Software with USB
  • Serial & EPO Cabling
  • 4 Post Installation Kit
  • Owner's Manual


Package Contents:
  • SMART750RMXL2U UPS System
  • PowerAlert Software with USB
  • Serial & EPO Cabling
  • 4 Post Installation Kit
  • Owner's Manual


Certifications & Standards:
  • UL1778
  • cUL
  • Class B
  • NOM


Environmental Certification:


Environmentally Friendly:


Software Included:
PowerAlert Software


Country of Origin:



Power Description
Load Capacity750 VA/600 W
Input Voltage120 V AC
Output Voltage
Input Current6.80 A
Physical Characteristics
Form FactorRack/Tower
Weight (Approximate)35.40 lb
Rack Height2U
Limited Warranty3 Year
Battery Information
Backup/Run Time (Full Load)8.50 Minute
Hot SwappableYes
Backup/Run Time (Half Load)21 Minute
Typical Battery Recharge Time4.50 Hour
General Information
Brand NameTripp Lite
Manufacturer Website Address

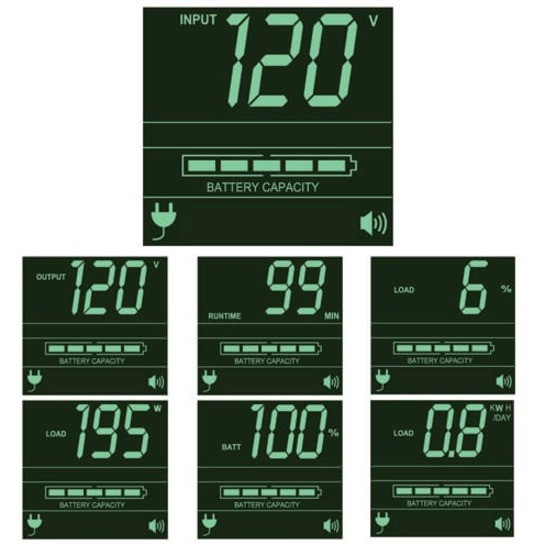

Marketing InformationTripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and slot for optional Network Management Card options. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Product TypeLine-interactive UPS
Product NameSMART750RMXL2U UPS System
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberSMART750RMXL2U
Product ModelSMART750RMXL2U
Product LineSmartPro
Technical Information
Receptacle TypeNEMA 5-15R
Receptacle Detail6 x NEMA 5-15R
Plug/Connector TypeNEMA 5-15P
Emergency Power OFFYes
Transfer Time4 ms
Network ManagementSNMP Manageable
