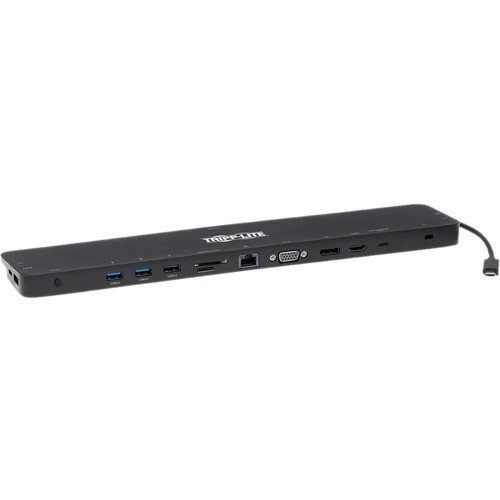

Tripp Lite USB C Docking Station Triple Monitor 4K HDMI DP VGA USB A/C Gbe (u442-dock7d-b)

This item is brand-new, factory sealed.

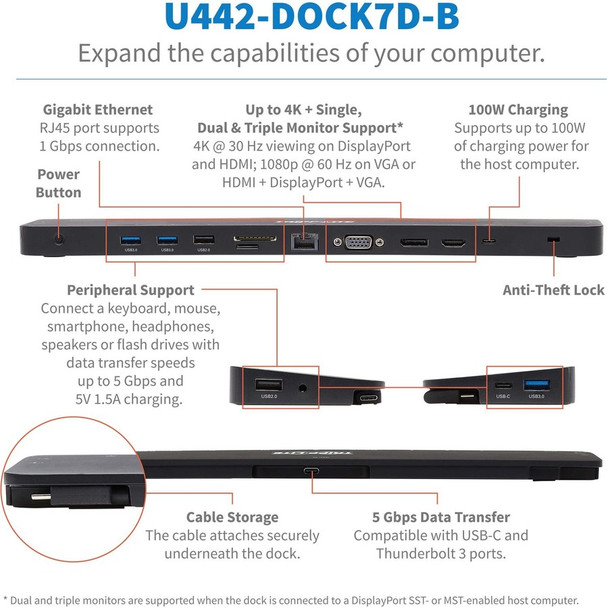

• CREATE A VERSATILE, PORTABLE WORKSTATION: Add 14 ports, including RJ45 Gigabit Ethernet, 4K HDMI, 4K DisplayPort, 1080p VGA, USB 2. 0, USB3. 0 and with BC1. 2, USB-C PD Charging, 3. 5mm mini stereo, SD and Mico SD card slots to your computer. Expand the potential of your tablet, laptop, MacBook, smartphone or PCs USB-C or Thunderbolt 3 port.
• BROAD COMPATIBILITY: Works with USB C and Thunderbolt 3 devices like Dell XPS & Precision, Mac, MacBook Pro, HP Spectre, Samsung Galaxy, Chromebook, Lenovo, ASUS, Acer Aspire. Allows you to connect external display, display video, access wired Ethernet, charge devices, and connect a microphone/headset, and save data. USB-C dock is specifically designed for use with the MacBook Pro, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port.

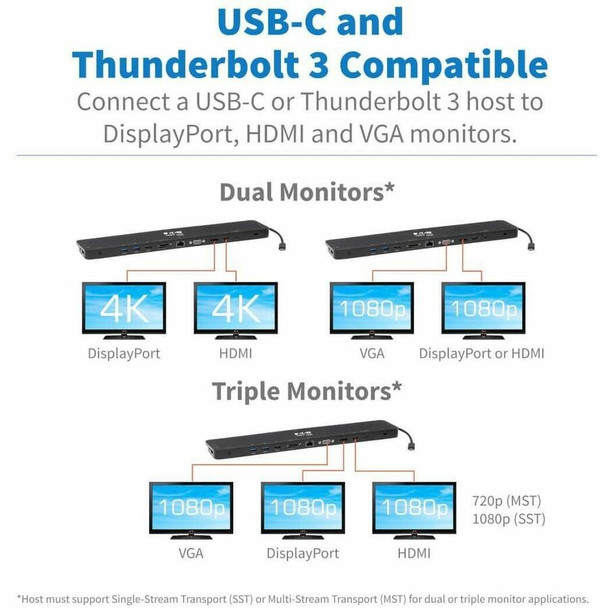

• POWERFUL FEATURES: True 10/100/1000 Mbps Ethernet speeds for fast data transfers. Provide 20V 5A (100W) power output for fast-charging large-capacity mobile devices. Extend 720p video across HDMI, DisplayPort and VGA monitors simultaneously in MST mode. Send mirrored 1080p video across HDMI, DisplayPort and VGA monitors simultaneously in SST mode. Convert audio/video signals from sources supporting USB-C DisplayPort Alt Mode.
• 4K VIDEO AND DIGITAL AUDIO: The DisplayPort and HDMI ports support UHD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz with 4: 4: 4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort television, projector or monitor
• 3 YEAR & FREE TECH SUPPORT: Tripp Lite warrants this product to be free from original defects in material and workmanship for the duration of the . If the product should prove defective in that time, Tripp Lite will gladly repair or replace it. Our Chicago-based Tech Support Team is ready to assist you, call them at 773-869-1234 M-F 8am-6pm CST.

• Brand Name: Tripp Lite
• Item model number: U442-DOCK7D-B
• Item Weight: 10.2 ounces
• Package Dimensions: 15.16 x 4.72 x 1.57 inches

USB-C Docking Station Turns Your Laptops USB-C or Thunderbolt 3 Port into 14 New Ports This universal docking station with PD Charging expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PCs USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 14 ports to your device: ? 4K HDMI ? 4K DisplayPort ? 1080p VGA ? RJ45 Gigabit Ethernet ? (2) USB 2. 0 ? (2) USB 3. 0 ? USB 3. 0 with BC 1. 2 ? USB-C PD Charging ? USB-C data ? 3. 5 mm mini stereo and ? SD and Micro SD card slots Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI or DisplayPort Monitor To send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or DP cable (such as Tripp Lites P569-Series HDMI or P580-Series DP cables, sold separately). The DisplayPort and HDMI ports support UHD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz with 4: 4: 4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Extends or Mirrors High-Definition Video Across All 3 External Displays at the Same Time By connecting the detachable USB-C cable to a source that supports Single-Stream Transport (SST) or Multi-Stream Transport (MST), you may connect three monitors simultaneously. You can display the same image on all three monitors (SST), extend the desktop across them (MST), or combine them into one large monitor in video wall mode (MST). Maximum resolutions are 1920 x 1080 (@ 60 Hz) in SST mode and 1280 x 720 (@ 60 Hz) in MST mode. Note: Mac OS laptops or computers will only extend to one monitor. The others will be mirrored. 3 USB 3. 0 and 2 USB 2. 0 Ports Connect Keyboards, Thumb Drives and Other Peripherals Three USB 3. 0 ports accept flash drives, mice, keyboards, printers and other USB peripherals, transferring data back and forth at speeds up to 5 Gbps. One is also BC 1. 2-compliant, delivering up to 1. 5A of fast-charging power to mobile devices. Two other ports are USB 2. 0. PD Charging Port Charges the Connected MacBook, MacBook Pro or Other Device The USB-C 100W Power Delivery (PD) port provides power and charging to the connected PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone). Connect the devices AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). Thats sufficient wattage to fast-charge, sync and power most high-capacity devices, including the MacBook Pro. This port, as well as the docks other USB-C port, can also be used for transferring data up to 5 Gbps. PD 3. 0 Fast Role Swap technology ensures all data and power connections remain stable if the wall charger becomes accidentally dislodged. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (Tripp Lite N201-Series Cat6 cables sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers. Connects Speakers, Microphone and Other Audio Equipment The laptop docking stations 3. 5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast. Thunderbolt 3 Dock Allows External Memory Access The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. You can access both slots at the same time. Detachable USB-C Cable Connects in Either Direction Connect the reversible USB-C plug to your source devices USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Anti-Theft Lock Protects the USB-C Docking Station When You Arent Around Connect a user-supplied computer/laptop security cable lock (not included) to this port to protect your source device against theft. Ready to Use Right Out of the Package The plug-and-play USB-C dock is specifically designed for use with the MacBook Pro, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software or drivers. Its compact footprint fits easily into your desk space without taking up much valuable room.

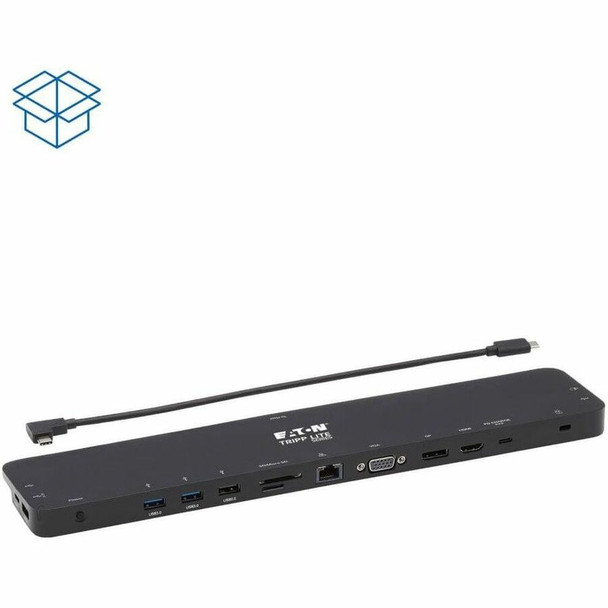

• U442-DOCK7D-B Docking Station
• USB-C 3.1 Cable (M/M), 1 ft
• Owner's Manual
