Tyan Tomcat CX S8253GM4NE-2T Server Motherboard - AMD Chipset - Socket SP3 - Extended ATX (250658)
(No reviews yet)
Write a Review
- SKU:
- 18487983
- MPN:
- 250658
- Availability:
- Out of stock
- Stock Update:
- 12/09/2025 10:12:34 AM PST
- Stock Update:
- 12/09/2025 10:12:34 AM PST
Description
This item is brand-new, factory sealed.

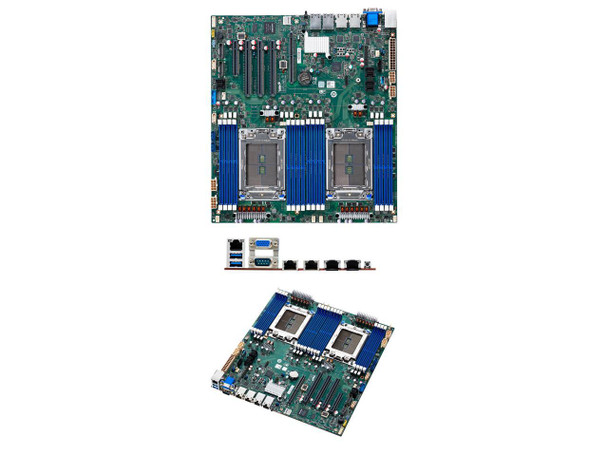

TYAN S8253GM4NE-2T Tomcat CX S8253 (S8253GM4NE-2T) Motherboard- 2S AMD EPYC Milan-X / Milan / Rome CPU
- 12" x 13.4" w/ EATX mounting holes
- 16 DIMM slots w/ DDR4-3200memory support
- Up to 16SATA ports
- 3 PCIe Gen.4x16 + 1 PCIe Gen.4x8 slots
- RAM: ?DDR4
- Brand: ?Tyan
- Series: ?S8253GM4NE-2T
- Item model number: ?S8253GM4NE-2T
- Item Weight: ?6 pounds
- Product Dimensions: ?18 x 18 x 6 inches
- Item Dimensions LxWxH: ?18 x 18 x 6 inches
- Manufacturer: ?TYAN
2S AMD EPYC Milan-X / Milan / Rome CPU 12" x 13.4" w/ EATX mounting holes 16 DIMM slots w/ DDR4-3200memory support Up to 16SATA ports 3 PCIe Gen.4x16 + 1 PCIe Gen.4x8 slots 1 PCIe Gen.4x32 slot for riser use 2 PCIe x8 SlimSASconn. for 4 NVMe 2 10GBase-T + 2 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports AST2500 BMC with Redfish support
Package Contents:
- Tomcat CX S8253 Server Motherboard
- 1 x Quick Installation Guide
- 2 x SATA Signal Cables
- 1 x TYAN Device Driver CD
- 1 x I/O Shield
Features
Package Contents:
Yes
China
- Tomcat CX S8253 Server Motherboard
- 1 x Quick Installation Guide
- 2 x SATA Signal Cables
- 1 x TYAN Device Driver CD
- 1 x I/O Shield
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
China Restriction of Hazardous Substances (China RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 13.4" |
| Depth | 12" |
| Warranty | |
| Limited Warranty | 36 Month |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Number of PCI Express x32 Slots | 1 |
| Total Number of PCI Express Slots | 5 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 16 |
| Memory Speed Supported | 3200 MHz |
| Memory Form Factor |
|
| Maximum Memory Supported | 4 TB |
| Memory Standard | DDR4-3200/PC4-25600 |
| General Information | |
| Brand Name | Mitac |
| Manufacturer Website Address | http://www.tyan.com |
| Product Type | Server Motherboard |
| Product Name | Tomcat CX S8253 Server Motherboard |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S8253GM4NE-2T |
| Product Model | S8253GM4NE-2T |
| Product Line | Tomcat CX |
| Packaged Quantity | 1 |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Processor Supported | EPYC |
| Total Processor Supported | 2 |
| Processor Socket | Socket SP3 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 3.1 Ports | 2 |
| Number of NVMe Ports | 2 |
| Interfaces/Ports | |
| VGA | Yes |
| Number of USB 3.1 Ports | 2 |
| Total Number of USB Ports | 2 |
| Number of Network (RJ-45) Ports | 4 |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
