Ubiquiti Pro Max 48 PoE (usw-pro-max-48-poe)
(No reviews yet)
Write a Review
- SKU:
- 20686593
- MPN:
- usw-pro-max-48-poe
- Availability:
- Out of stock
- Stock Update:
- 05/06/2026 09:36:19 AM PST
- Stock Update:
- 05/06/2026 09:36:19 AM PST
Description
This item is brand-new, factory sealed.

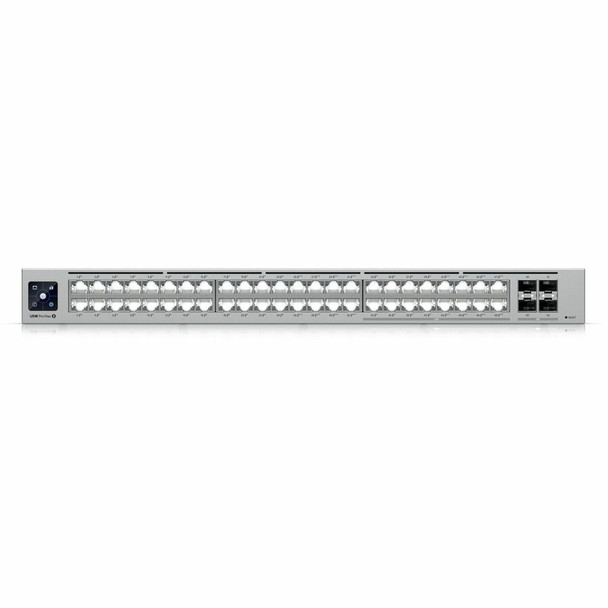

Ubiquiti USW-Pro-Max-48-PoE- A 48-port, Layer 3 Etherlighting switch with 2.5 GbE and PoE++ output. Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network* (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++ (32) GbE ports including (24) PoE+ and (8) PoE++ (4) 10G SFP+ ports DC power backup ready 720W total PoE availability Managed with UniFi Network 8.0.24 and later
Features
Certifications & Standards:
- CE
- FCC
- IC
- Anatel: 06373-24-08356
Additional Information:
- Switching Capacity: 224 Gbps
- Total Non-Blocking Throughput: 112 Gbps
- Forwarding Rate: 167 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- Management: Ethernet, AR
- Heat Dissipation: 341.2 BTU/hr (Excluding PoE Output)
- Supported Rack Depth: 400~1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- ESD Protection: Air: ± 16kV, contact: ± 12kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- DHCP Server (Local Networks): Yes
- Inter-VLAN Routing (Local Networks): Yes
- Static Routing (Local Networks): Yes
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- QoS (DSCP): Yes
- Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Virtual Network Override: Yes
Application/Usage:
Network
Wireless Access Point
Security Camera
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | AC/DC |
| PoE Budget | 720 W |
| Frequency |
|
| Input Voltage |
|
| PoE (RJ-45) Port | Yes |
| Power Consumption | 820 W |
| Physical Characteristics | |
| Product Material | SGCC Steel |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 13.67 lb |
| Height | 1.7" |
| Compatible Rack Unit | 1U |
| Width | 17.4" |
| Depth | 15.7" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 48 |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| General Information | |
| Brand Name | Ubiquiti |
| Manufacturer Website Address | http://www.ui.com |
| Product Type | Ethernet Switch |
| Product Name | USW-Pro-Max-48-PoE Ethernet Switch |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-Pro-Max-48-PoE |
| Product Model | USW-Pro-Max-48-PoE |
| Product Line | Pro Max |
| Media & Performance | |
| Ethernet Technology |
|
| Maximum Data Transfer Rate | 1.25 GB/s |
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x |
| Technical Information | |
| Features |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
