Ubiquiti UDB-Pro Single Band Wi-Fi 5 IEEE 802.11a/n/ac 400 Mbit/s Wireless Bridge - Outdoor (udb-pro-sector-us)
(No reviews yet)
Write a Review
- SKU:
- 21273955
- MPN:
- udb-pro-sector-us
- Availability:
- Out of stock
- Stock Update:
- 09/01/2026 03:36:36 AM PST
- Stock Update:
- 09/01/2026 03:36:36 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

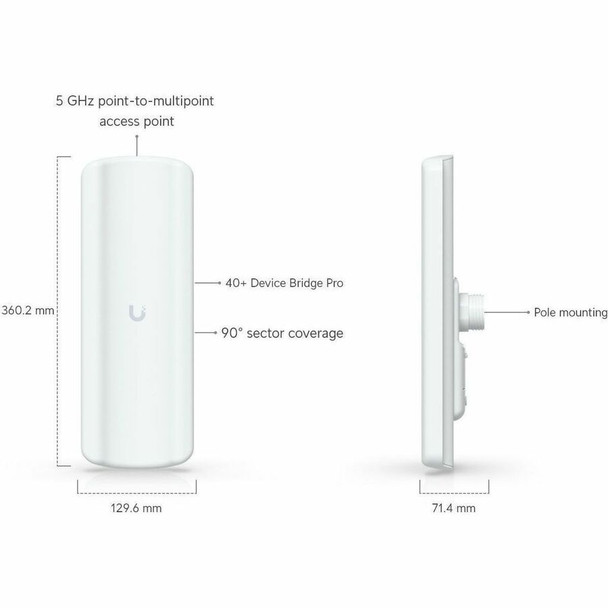

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances. WiFi Standard: WiFi 5 Spatial Streams: 2 Coverage Area: 5 km (3.1 mi) Mounting Locations: Pole Weatherproofing: IPX6 Power Method: PoE MIMO: 5 GHz 2 x 2 Max. Data Rate: 5 GHz 400 Mbps (BW40) Antenna Gain: 5 GHz 17 dBi Max. TX Power: 5 GHz 25 dBm Max. Conducted TX Power: 25 dBm (Combined) Supported Data Rates: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5): 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40) Wireless Security: WPA2 AES (Always On) Max. Power Consumption: 6W Supported Voltage Range: 42.557V DC Networking Interface: (1) GbE RJ45 port Antennas: Internal Management: Ethernet, WiFi Wind Loading: 128.2N at 200 km/h Mount Material: UV-stabilized polycarbonate, stainless steel Enclosure Material: UV-stabilized polycarbonate Pole Mount Diameter: 0.92.4" (2460 mm) Button: (1) Factory-reset LEDs: System: Power, Ethernet Dimensions: 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8)Ubiquiti - UDB-Pro-Sector
Features
Certifications & Standards:
- CE
- FCC
- IC
Specs
| Power Description | |
| Power Consumption | 6 W |
| Physical Characteristics | |
| Form Factor | Pole-mountable |
| Weight (Approximate) | 1.72 lb |
| Height | 14.2" |
| Width | 5.1" |
| Antenna Form Factor | Internal |
| Depth | 2.8" |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| General Information | |
| Brand Name | Ubiquiti |
| Manufacturer Website Address | http://www.ui.com |
| Marketing Information | 5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances. Enables Point-to-Multi-Point (PtMP connectivity) with 40+ UDB-Pro clients 90° sector coverage Powered using PoE Pole mounting Weatherproof (outdoor exposed) |
| Product Type | Wireless Bridge |
| Product Name | Device Bridge Pro Sector |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UDB-PRO-SECTOR-US |
| Product Line | UDB-Pro |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 5 |
| Technical Information | |
| Ingress Protection (IP) Rating | IPX6 |
| Wireless LAN Standard | IEEE 802.11a/n/ac |
| Network Band | Single Band |
| Wireless Transmission Speed | 400 Mbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Frequency Band | 5 GHz |
| Indoor/Outdoor | Outdoor |
| Outdoor Antenna Range | 3.1 Mile |
| Encryption Standard | WPA2-AES |
