Ubiquiti UISP-HORN High-isolation Point-to- Wrls Multipoint Ptmp Horn Antenna
(No reviews yet)
Write a Review
- SKU:
- 20789697
- MPN:
- uisp-horn
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/24/2026 09:11:21 PM PST
- Stock Update:
- 10/24/2026 09:11:21 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

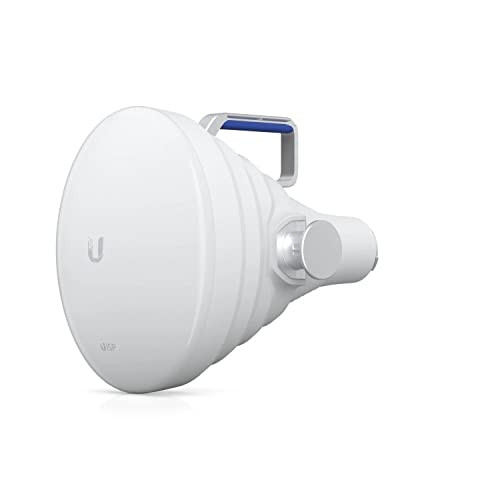

High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

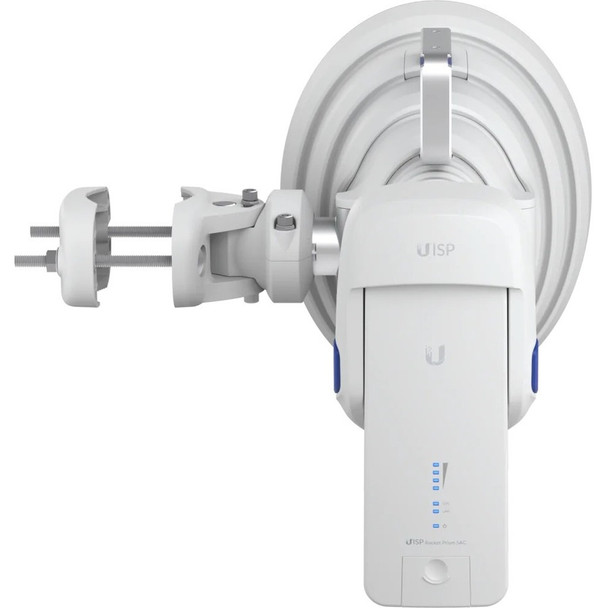

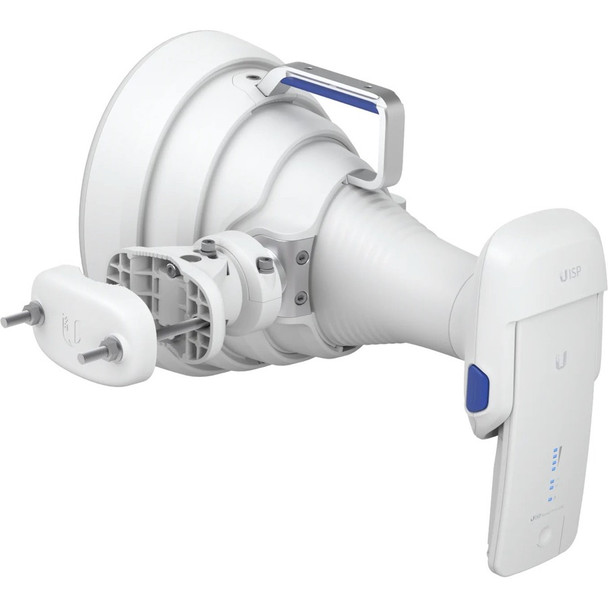

The UISP® Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD), LTU® Rocket® , or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations.
Features:
- High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)
- Low backlobes for device co-location
- 15+ km PtMP link range
- Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing

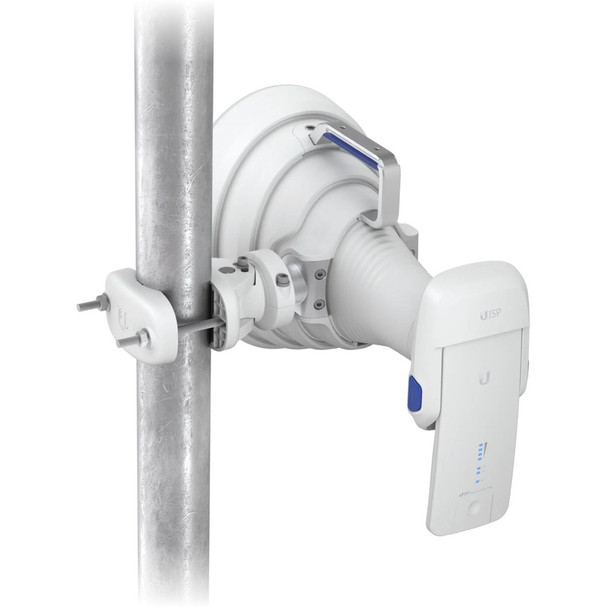

- Pole-mountable antenna with a metal carrying handle
- Two side latches for secure, snap-in radio connection
Package Contents:
- UISP Antenna
- Alignment Mounting Kit
Features
Package Contents:
Radio Communication
UISP Raidos:
- UISP Antenna
- Alignment Mounting Kit
Application/Usage:
Radio Communication
Compatibility:
UISP Raidos:
- airMAX Rocket Prism AC 5 GHz
- airFiber 5XHD
Specs
| Physical Characteristics | |
| Form Factor | Pole |
| Weight (Approximate) | 6.75 lb |
| Height | 11.10" |
| Width | 14.96" |
| Depth | 8.82" |
| General Information | |
| Brand Name | Ubiquiti |
| Manufacturer Website Address | http://www.ui.com |
| Marketing Information | High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz). The UISP® Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD), LTU® Rocket® , or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations. Features: High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz) Low backlobes for device co-location 15+ km PtMP link range Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing Pole-mountable antenna with a metal carrying handle Two side latches for secure, snap-in radio connection |
| Product Type | Antenna |
| Product Name | UISP Antenna |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UISP-Horn |
| Product Line | UISP |
| Technical Information | |
| Maximum Antenna Range | 9.3 Mile |
| Operating Frequency Range | 5.15 GHz to 6.875 GHz |
| Antenna Gain (Isotropic) | 19.5 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Ubiquiti UISP-HORN High-isolation Point-to- Wrls Multipoint Ptmp Horn Antenna
$204.91
