Valcom

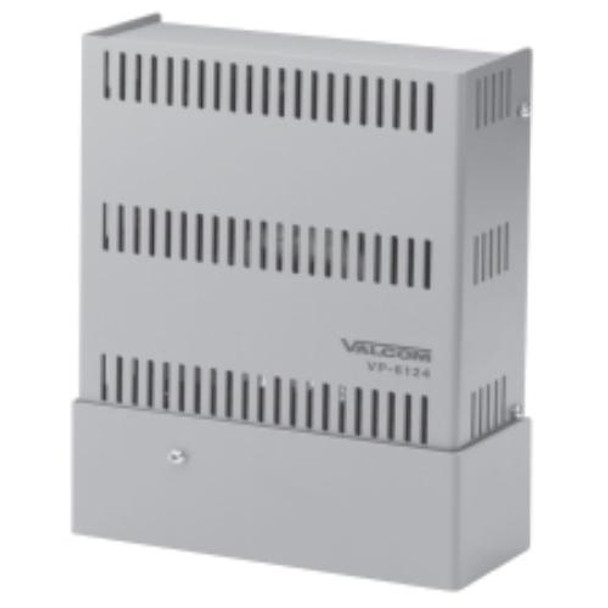

Valcom V-c6124p Proprietary Power Supply - 88.5% Efficiency - 165 W - Wall Mount - 110 V Ac (v-c6124p)
- SKU:
- 18125844
- MPN:
- v-c6124p
- Availability:
- Usually ships the same or next business day. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/20/2024 05:19:55 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $243.99 each 243.99 |
- Stock Update:
- 05/20/2024 05:19:55 PM PST
Description
This item is brand-new, factory sealed.
The wall or rack mountable switching power supply, model number V-C6124P, shall be a 24 VDC power supply capable of providing 6 amperes of current. The design of this regulated power supply shall use switching technology, shall provide auto recovery short circuit protection and shall feature three (3) individual class "B" outputs each capable of providing 1/3 of the supply's rated current. Additionally, the supply's design shall incorporate EMI filtering, a minimum 88.5% efficiency, a 3 second power up delay, a working input frequency range of 47 to 63 Hertz and an LED status indicator. The supply shall also feature +/- 2 % voltage regulation and over voltage protection.
Package Contents:
Features
- V-C6124P Proprietary Power Supply
- Hardware
- Wall Mount Plate
Compatibility:
Valcom VP-6124-UPS Battery Back-Up Charger
Specs
| Power Description | |
| Output Power | 165 W |
| Output Current | 6 A |
| Input Voltage | 110 V AC |
| Output Voltage Detail | 24 V DC @ 6 A |
| Output Voltage | 24 V DC |
| Input Voltage Type | AC |
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Weight (Approximate) | 7.10 lb |
| Height | 10.3" |
| Width | 5.9" |
| Depth | 2.5" |
| Warranty | |
| Limited Warranty | 1 Year |
| General Information | |
| Brand Name | alltel |
| Manufacturer Website Address | http://www.windstream.com |
| Marketing Information | The wall or rack mountable switching power supply, model number V-C6124P, shall be a 24 VDC power supply capable of providing 6 amperes of current. The design of this regulated power supply shall use switching technology, shall provide auto recovery short circuit protection and shall feature three (3) individual class "B" outputs each capable of providing 1/3 of the supply's rated current. Additionally, the supply's design shall incorporate EMI filtering, a minimum 88.5% efficiency, a 3 second power up delay, a working input frequency range of 47 to 63 Hertz and an LED status indicator. The supply shall also feature +/- 2 % voltage regulation and over voltage protection. |
| Product Type | Proprietary Power Supply |
| Product Name | V-C6124P Proprietary Power Supply |
| Manufacturer | Windstream Intellectual Property Services, LLC |
| Manufacturer Part Number | VC6124P |
| Product Model | V-C6124P |
| Technical Information | |
| Efficiency | 88.5% |
| Protection Type |
|
