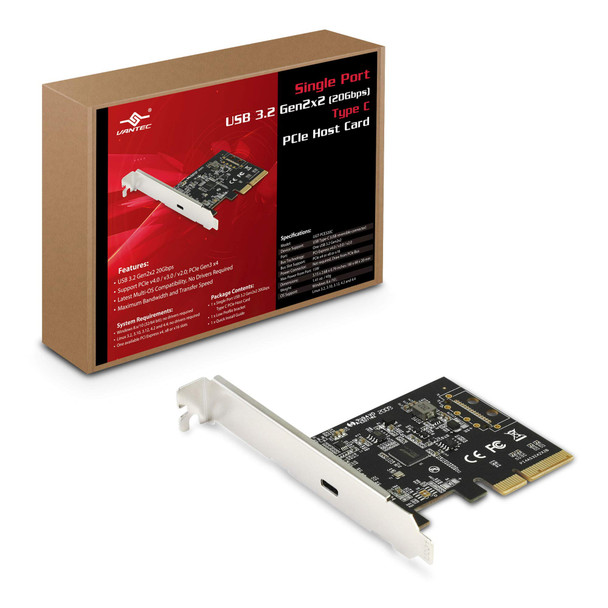

Vantec 255462 Cc Ugt-pce320c Single Port Usb3.2 Gen2x2 20gbps Type C Pcie Host Card

This item is brand-new, factory sealed.

Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card
UGT-PCE320C
The Vantec Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card is design to offer the fastest USB 3.2 performance possible. This single port unique design allows for maximum bandwidth from the 4 lanes of the PCIe slot to the connected USB storage device. This one controller can handles data transfer at a theoretical speed of 20Gbps. This translates in to superfast file transfer and work done. Most USB port are only offering 10Gbps but this is double the speed with many others features like Latest Multi-OS compatibility, No drivers required, No Power Plug required, Plug Ready, Standard Low profile bracket, legacy compatibility and more.
Highlight
USB 3.2 Gen2x2 20Gbps
Support PCIe v4.0 / v3.0 / v2.0 PCIe Gen3 x4
Latest Multi-OS Compatibility, No Drivers Required
Maximum Bandwidth and Transfer Speed
Paired well with Vantec NST-220C3-SG (20Gbps enclosure)
Backward compatibility with 10Gbps, 5Gbps and other legacy USB
Standard and Low Profile bracket included
Easy to Install using Plug and Ready, No Power Plug requiredModel:
UGT-PCE320CDevice Support:
USB Type-C (USB reversible connector)Port:
One USB 3.2 Gen2x2Bus Technology:
PCI-Express v4.0 / v3.0 / v2.0Bus Slot Support:
PCIe x4 or x8 or x16Power Connector:
Not required, Draw from PCIe BusMax Power from Port:
5V at 3A (15W)OS Support:
Windows 8.x/10 (32/64 bit) Linux 3.2, 3.10, 3.12, 4.2 and 4.4System Requirements:
Windows 8.x/10 (32/64 bit)
Linux 3.2, 3.10, 3.12, 4.2 and 4.4
One available PCI Express x4, x8 or x16 slotsWhats Included:
1 x Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card, Low Profile bracket, Quick Install GuideItem Dimension (L"xW"xH")
9 x 6 x 2

Weight
1 lb

Warranty Information
1-Year

Package Contents:

• Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card
• Low Profile Bracket
• Quick Install Guide
