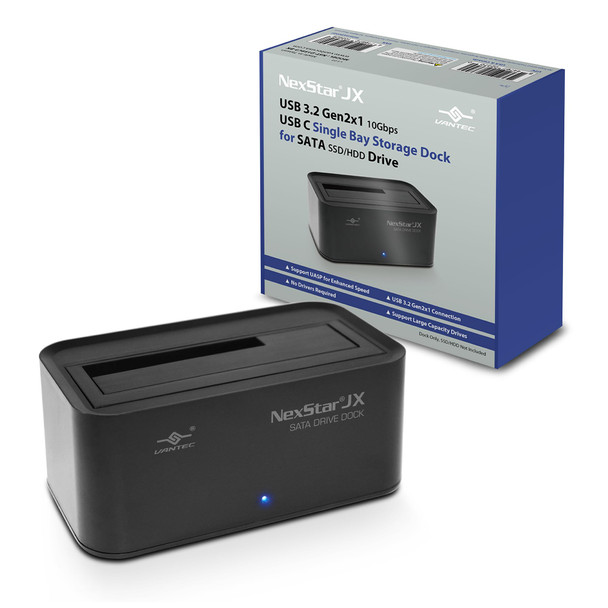

Vantec NSTD158C3BK NexStar JX Single Bay Storage Dock for SATA Drives

This item is brand-new, factory sealed.

NexStar JX, USB 3.2 Gen2x1, USB C, Single Bay Storage Dock for SATA Drive

NST-D158C3-BK

This Speedy SATA Drive Dock (NST-D158C3-BK) is designed for any SATA Storage Drive. It connects your Fast SATA III drive to your system USB C port and is capable of a theoretical speed of 10Gbps. The design is simple, it works just like a toaster, once connected, simply insert any 2.5" or 3.5" SATA III/II/I drive into this Dock, power it ON, and you are ready to use the storage. The Dock comes with native USB C, USAP support, integrated with the latest USB 3.2 Gen2x1 technology, and USAP support to help speed up file copy or access to the stored data. Swapping drive is fast and easy, just perform a USB eject, power down, swap drive, power back ON and it is ready again. The need of opening up your computer case or installing the hard drive is now a distant memory. This JX series USB 3.2 Gen2x1 (10Gbps) Single Bay Dock is the perfect solution to simplify your system workspace.

Features:

USB 3.2 Gen2x1 (10Gbps) Speed

Native USB C; Support UASP for Enhanced Speed

Support Large Capacity Drives (24TB*)

Support Fast SATA 6 Gbps Interface, Compatible with Legacy SATA II/I

Quick Swap Drive; Use with 2.5/3.5 SATA HDD/SSD/Hybrid Drive

USB Hot-Swappable without Rebooting System

Hi-Quality Shielded USB C to C/A Cable Ensures Data Integrity and SpeedDock Support:
SATA III/II/I HDD/SSD/Hybrid DriveDrive Size Support:
2.5"/3.5" SATA HDD/SSD/Hybrid DriveInternal Interface:
Standard SATA III (Compatible with SATA II/I)External Interface:
Reversible USB CInterface Cable:
USB C to C/A, USB C (Dock side) to USB C or Type-A (system side)USB cable Length:
100 cm / 39 inchesPower Supply:
Universal Switching AC adapter, Output: 12VDC, 2A, center pin positivePower Supply Plug Size:
Outer Dia: 5.5mm, Inner Dia: 2.1mm, Depth(length): 10mm, cable length: 1473 mmHD Capacity:
Up to 32TB^note (Note: as of 6/23/2025, the max capacity)Material:
ABS PlasticEnvironmental:
Temperature
Operating: 0^oC to +50^oC
Non-Operating: -20^oC to +70^oC
Humidity
Operating: 5% to 90% (Non-Condensing)
Non-Operating: 5% to 90% (Non-Condensing)System Requirements:
- Latest version of Windows 7, 8, 10 or Windows 11 / Mac OS X 10.6 or later / Latest Liunx OS
- Computer with USB 3.0 or better, USB C or USB Type A portPackage Contents:
- NexStar JX Single Bay Dock
- USB C to C/A cable
- Ac Adapter
- Quick GuideItem Dimension (L inchxW inchxH inch)
6 x 6 x 3

Weight
1.00lb

Warranty Information
1-Year
