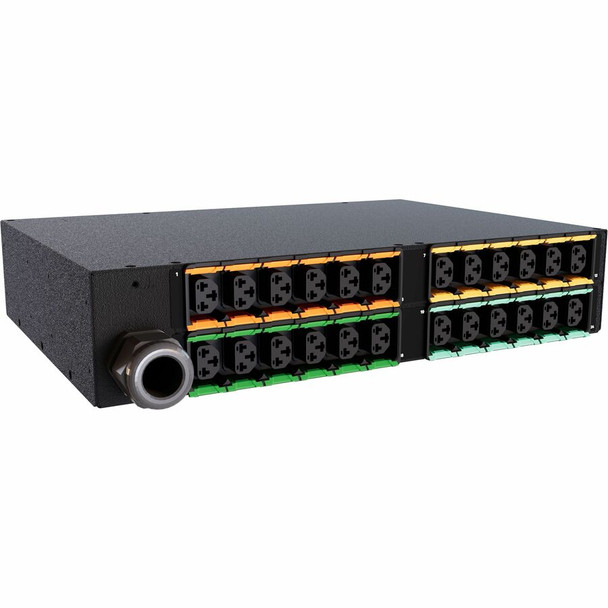

Vertiv PowerIT VP4U62A0 Upgradeable Monitored Input Level HD rPDU, Horizontal, Single Phase, 24 Combination C13/C19 Outlets, 60/63A, 240V, 2U

(No reviews yet) Write a Review
SKU:
21653653
MPN:
vp4u62a0
Availability:
Usually ships the same or next business day. In stock at our TX warehouse.
Shipping:
Calculated at Checkout
Stock Update:
09/01/2026 12:12:41 AM PST
  • Main
  • Rear
  • Left
  • Front
$1,703.93
Stock Update:
09/01/2026 12:12:41 AM PST
Frequently bought together:

Description



This item is brand-new, factory sealed.

The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4U62A0 is an upgradeable, 60/63A, 240V, 2U, horizontal rPDU with input monitoring. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a 1P+N+E (IP44) plug providing 14.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.

Features

Certifications & Standards:
  • UL Listed
  • RCM Mark(EMC Only)
  • CE Marked
  • UKCA Marked
  • Complies with IEC 62368-1

    •

    TAA Compliant:
    Yes



    Environmental Compliance:

    China Restriction of Hazardous Substances (China RoHS)
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    United States



    Specs

    Power Description
    Power Rating (Watt)14.40 kW
    Input Voltage230 V AC
    Output Voltage240 V AC
    Input Current63 A
    Physical Characteristics
    Form FactorRack
    Cord Length10 ft
    Product ColorBlack
    Mount TypeRack-mountable
    Height3.5"
    Color FamilyBlack
    Mounting OrientationHorizontal
    Width17.1"
    Rack Height2U
    Depth12"
    Warranty
    Additional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
    Limited Warranty5 Year
    Interfaces/Ports
    Modem (RJ-11)No
    Modem (RJ-22)No
    Modem (RJ-12)Yes
    Network (RJ-45)Yes
    USBYes
    Serial PortYes
    General Information
    Brand NameVertiv Geist
    Manufacturer Website Addresshttp://www.vertiv.com/
    Marketing InformationThe Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4U62A0 is an upgradeable, 60/63A, 240V, 2U, horizontal rPDU with input monitoring. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a 1P+N+E (IP44) plug providing 14.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
    More from the Manufacturer
    Product TypePDU
    Product NameMonitored Input Level VP4U62A0 PDU
    ManufacturerVertiv
    Manufacturer Part NumberVP4U62A0
    Product SeriesG
    Product LineGeist Upgradeable
    Technical Information
    Plug/Connector Detail1 x 1P+N+E (IP44)
    Receptacle TypeCombination C13/C19
    Receptacle Detail24 x Combination C13/C19
    PhaseSingle Phase
    Plug/Connector Type1P+N+E (IP44)
    PDU TypeMonitored
    Protection TypeOvercurrent Protection
    Features
    • LCD Display
    • Touch Screen Display
    Management
    Remote Outlet SwitchingNo
    Management<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>DHCP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>HTTP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>HTTPS</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>IPv4</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>IPv6</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>LDAP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NTP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>RADIUS</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>RSTP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SSH</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SMTP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SNMP (v1/v2c/v3)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Syslog</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>TACACS+</li></ul>
