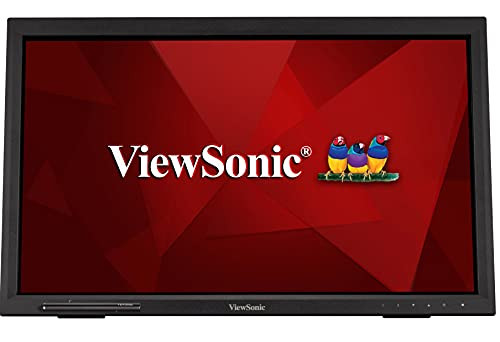

ViewSonic TD2223 22" 1080p 10-Point Multi IR Touch Monitor with HDMI- VGA- and DVI

This item is brand-new, factory sealed.

Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic TD2223 is a 22 touch display with 10-point IR touch technology that lets users pinch, zoom and swipe for fast and intuitive navigation. With Full HD 1920x1080 resolution, 1000:1 static contrast ratio and 7H screen hardness, the TD2223 delivers sharp and bright images combined with durability for high-traffic applications. Flexible connectivity options include HDMI, VGA, DVI, and a USB hub to connect your peripherals and accessories. VESA-mount compatibility offers additional convenience and flexibility for 3rd party stands and mounts. Whats more, ViewSonics exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience. Combine this display with ViewSonic's Android and Windows media players for a perfect kiosk solution.

10-POINT IR TOUCHSCREEN

Thanks to infrared (IR) touch technology, this interactive display delivers an intuitive and natural touchscreen experience. 10-point touch allows multiple users to simultaneously write or draw on the displays surface using styluses or their fingers, or both at the same time.

FULL HD 1080P RESOLUTION

This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. Youll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
DISPLAY
DISPLAY SIZE (IN.)
22
VIEWABLE AREA (IN.)
22
PANEL TYPE
TN
RESOLUTION
1920 x 1080
RESOLUTION TYPE
Full HD (1920x1080)
STATIC CONTRAST RATIO
1,000:1
LIGHT SOURCE
LED
BRIGHTNESS
250 cd/m2
COLORS
16.7M
COLOR SPACE SUPPORT
8 bits
ASPECT RATIO
16:9
RESPONSE TIME (TYPICAL GTG)
5ms
VIEWING ANGLES
170^o horizontal, 160^o vertical
BACKLIGHT LIFE (HOURS)
30,000
PANEL SURFACE
Anti-glare, Hard coating 7H
COMPATIBILITY
PC RESOLUTION (MAX)
1920x1080
MAC RESOLUTION (MAX)
1920x1080
CONNECTOR
USB TYPE A
2
USB TYPE B
1
3.5MM AUDIO IN
1
3.5MM AUDIO OUT
1
VGA
1
DVI-D
1
HDMI 1.4 IN
1
TOUCH
TOUCH TECHNOLOGY
Infrared
TOUCH POINTS
10-Point Touch
AUDIO
INTERNAL SPEAKERS
2W (x2)
POWER
ECO MODE (CONSERVE)
11W
ECO MODE (OPTIMIZED)
13W
CONSUMPTION (TYPICAL)
15W
CONSUMPTION (MAX)
19W
VOLTAGE
AC 100-240V (universal), 50-60Hz
STAND-BY
0.5W
POWER SUPPLY
Internal
ADDITIONAL HARDWARE
KENSINGTON LOCK SLOT
1
CONTROLS
PHYSICAL CONTROLS
1,2,3,4,5,6 (Power)
ON SCREEN DISPLAY
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
VOPERATING CONDITIONS
TEMPERATURE
32-104^o F (0 - 40^o C)
HUMIDITY (NON-CONDENSING)
20-90%
MOUNT
VESA COMPATIBLE
100 x 100 mm
VIDEO SIGNAL
FREQUENCY HORIZONTAL
24 - 82 KHz
FREQUENCY VERTICAL
50 - 75 Hz
ERGONOMICS
TILT (FORWARD/BACK)
22^o / 38^o
GENERAL
REGULATIONS
cTUVus, FCC-B, ICES003, Energy Star, EPEAT, MX-CoC, Mexico Energy
PACKAGE CONTENTS
TD2223 Display, Power Cable, USB Type C cable, USB Type B Uplink Cable, Quick Start Guide
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws.
Item Dimension (L"x W"x H")
23 x 16 x 7
Weight
19.00 LB
Warranty Information
3-year limited


Package Contents:

• TD2223 - 22" Display, TN Panel, 1920 x 1080 Resolution
• Power Cable
• USB Type C cable
• USB Type B Uplink Cable
• Quick Start Guide
