Description

This item is brand-new, factory sealed.

Accurate 24 hour digital time clock displays hours and minutes synced to AC power

User programmable 24 hour, 128 event timer in two separate schedules

Programmable day of week on/off feature

Programmable single, double or triple alert tone output (selectable bong or buzzer)

Three contact closure controlled sounds:

1) Emergency siren (yelp) sound

2) Temporal (slow whoop) evacuation signal

*NFPA/ANSI compliant when used with supporting equipment

3) Doorbell (chime) sound

Volume controllable, 600 ohm line level audio output

Non-volatile memory with four day clock backup

Two sets of DPDT relay contacts for muting paging or background music during alert tones or timed relay events

Switchable 50/60 Hz operation

Switch for Daylight Saving Time

Time Relay Mode

Number of Zones:null

Paging Adapters and Zone Controllers:Yes

Tone Generators:Yes

Volume Control Devices:Yes

Watts:null

Color:Black

Features

Country of Origin:
United States

Specs

Power Description
Input Voltage	120 V AC
Physical Characteristics
Weight (Approximate)	2 lb
Height	3.6"
Width	5.3"
Depth	1.8"
Warranty
Limited Warranty	2 Year
General Information
Brand Name	Viking Electronics
Manufacturer Website Address	http://www.vikingelectronics.com

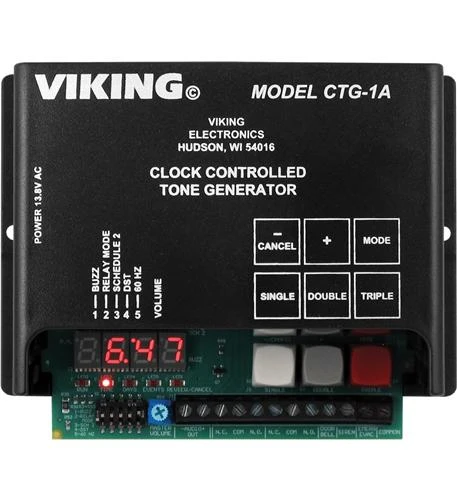

Marketing Information	Viking's model CTG-1A is a clock controlled tone generator designed to provide accurately timed bong alert tones or buzzer alert tone sounds over an existing paging system. The CTG-1A can be programmed to output single, double or triple alert tones with up to 128 events in a 24 hour period in two separate schedules on a paging system. These bong/buzzer sounds are ideal for indicating the start and end of shifts, break times, lunch periods, etc. for factories, schools, or any business requiring an audible indication of specified times. Each day of the week can be programmed to either on or off, allowing you to turn off the alert tones during specific days of the week (weekends, etc.) In place of sending tones, the CTG-1A can be set up to operate a timed relay. The CTG-1A has three contact closure inputs for triggering an emergency siren, evacuation signal or a doorbell sound.
Product Type	Tone Generating Device
Product Name	Clock Controlled Tone Generator
Manufacturer	Viking Electronics, Inc
Manufacturer Part Number	CTG-1A
Product Model	CTG-1A
