Description

This item is brand-new, factory sealed.

Touch-free motion sensor with adjustable range from one to four inches

Motion sensors ring LED lights blue during idle, flashes green during dialing and lights steady green when call is answered

Automatic polling and programming software included

2 Amp relay contacts for door/gate or SL-2 Strobe Light control

SIP compliant

Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

PoE powered (class 1, <4 Watts)

Automatic Noise Canceling (ANC) for proper operation in noisy environments

VoIP eliminates the need for Push to Talk mode

Network downloadable firmware

T-10 Torx security screws for added security

Can be used with optional RC-4A Secure Relay Controller

Marine grade 316 stainless steel prevents corrosion on stainless steel models

Laser etched graphics on stainless steel models

Programmable to dial up to 5 numbers on busy or ring no answer

Cycles through backup phone numbers on busy or no-answer

Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859

Hangs up on busy signal, time-out or touch tone command

Remotely programmable

Extended temperature range of -40F to 140F

Volume adjustments for microphone and speaker

Flush mount using the included rough-in box or can be surface mounted using an optional VE-55 Surface Mount Box

Diagnostics for testing microphone, speaker, and relay

Features

Application/Usage:

Gate Entrance
Parking Ramp
Parking Lot
Automated Teller Machine (ATM)
Medical Center
Lobby
Entryway
Stadium
Convention Center
Public Access Area

Country of Origin:
United States

Specs

Power Description
Power Source	PoE
Physical Characteristics
Form Factor	Surface Mount Box Mount Flush Mount
Product Color	Stainless Steel
Color Family	Gray
Warranty
Limited Warranty	2 Year
General Information
Brand Name	Viking Electronics
Manufacturer Website Address	http://www.vikingelectronics.com

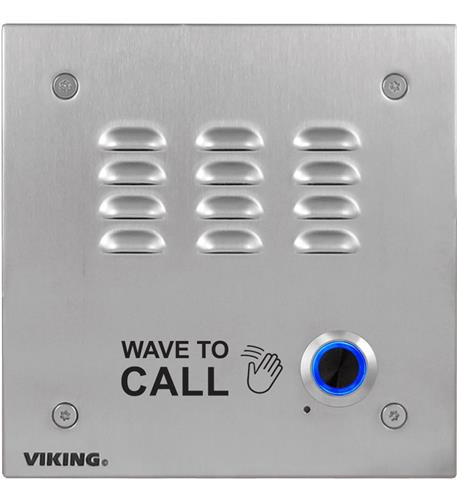

Marketing Information	The E-30TF-IP Touch-Free VoIP Entry Phone is equipped with Viking's touchless motion sensor. A simple wave over the sensor will activate a call. Touch-free calling eliminates the exposure to germs and bacteria from typical push button switches. The entry phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE and can be programmed from any touch tone phone, PC, or remotely using a static IP address. The E-30TF-IP can dial up to 5 programmable numbers. On-board 2 Amp relay contacts are provided to activate doorstrikes or gate controllers. An optional VikingRC-4A Secure Relay Controller can also be used. The entry phone motion sensor LED lights blue during idle, flashes green during dialing and lights solid green when the call is answered.
Product Type	Intercom Sub Station
Product Name	Stainless Steel Touch-Free VOIP Entry Phone
Manufacturer	Viking Electronics, Inc
Manufacturer Part Number	E-30TF-IP
Product Model	E-30TF-IP
Network & Communication
Connectivity Technology	Cable
